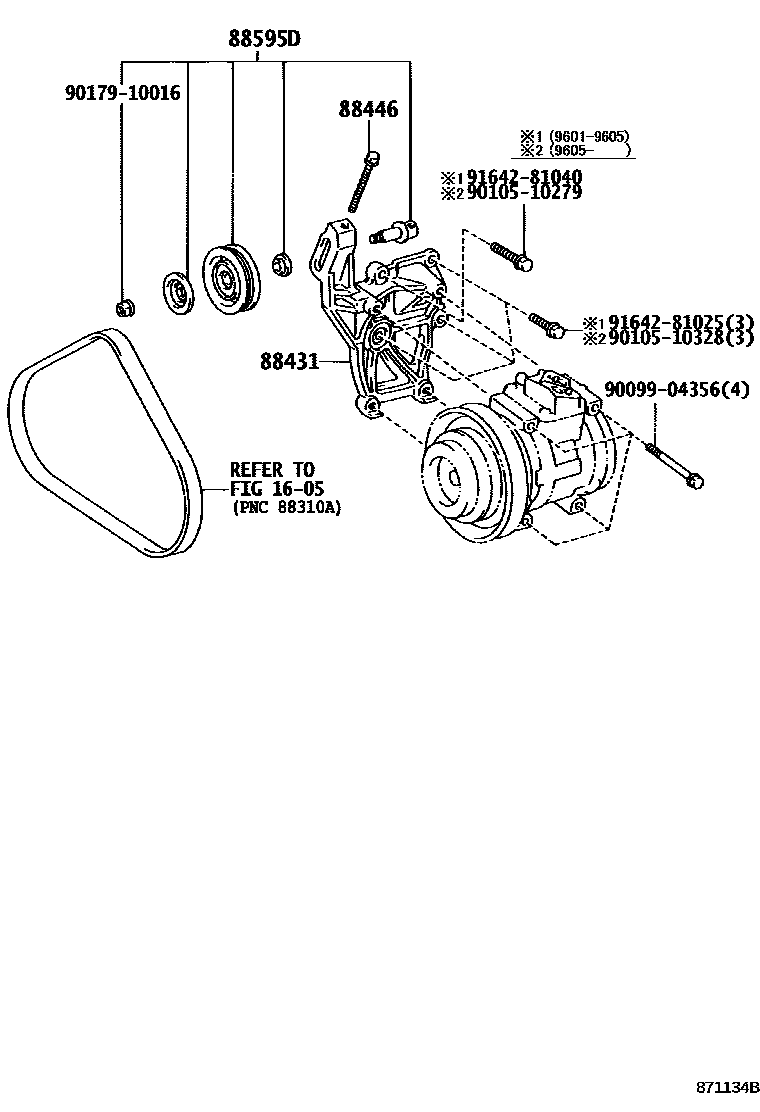

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0005 1 0006 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-20390iAT21#199601

88446BOLT, IDLE PULLEY

main88446-12030iAT21#199609

main88446-36010iAT21#199601-199609

88595DPULLEY ASSY, IDLE

main88440-20120iST210..D4199612-199712

main88440-20160iAT21#199601-199710

main88440-20170iAT21#199710

9009904356

main90099-04356

9010510279

main90105-10279

9010510328

main90105-10328

9017910016

main90179-10016

9164281025

main91642-81025

9164281040

main91642-81040

10 parts on this diagram · 5 diagrams in section
