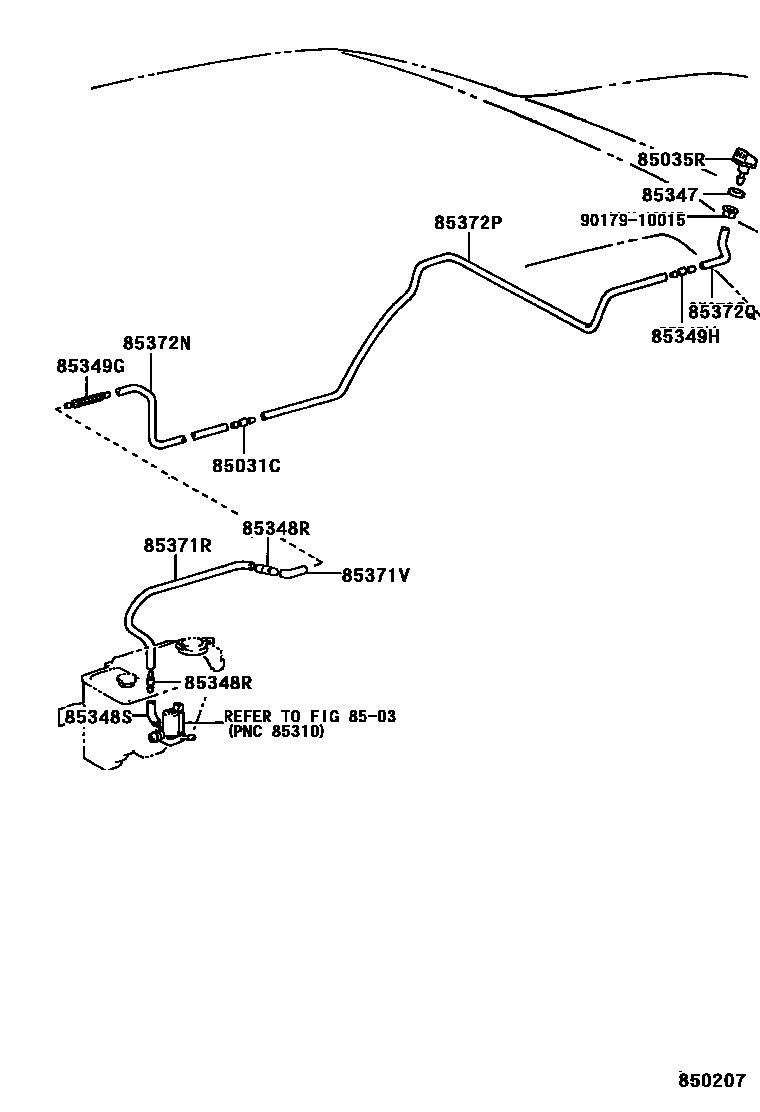

REAR WASHER

8503

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iAT21#,CT21#,ST21#199601

sub85375-12520

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-20070iAT21#,CT21#,ST21#199601

sub85391-22010

85347PACKING, REAR WASHER

main85347-12010iAT21#,CT21#,ST21#199601

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAT21#,CT21#,ST21#199601-199606

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iAT21#,CT21#,ST21#199601

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-32150iAT21#,CT21#,ST21#199601

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-89122iAT21#,CT21#,ST21#199601

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iAT21#,CT21#,ST21#199601-199606

main90446-07001iAT21#,CT21#,ST21#199606-199704

main90446-07001iAT21#,CT21#,ST21#199704

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33080iAT21#,CT21#,ST21#199606

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59185iAT21#,CT21#,ST21#199601

sub90099-33589

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59171iAT21#,CT21#,ST21#199601

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iAT21#,CT21#,ST21#199608

main90099-59115iAT21#,CT21#,ST21#199601-199608

9017910015

main90179-10015

14 parts on this diagram · 1 diagram in section
