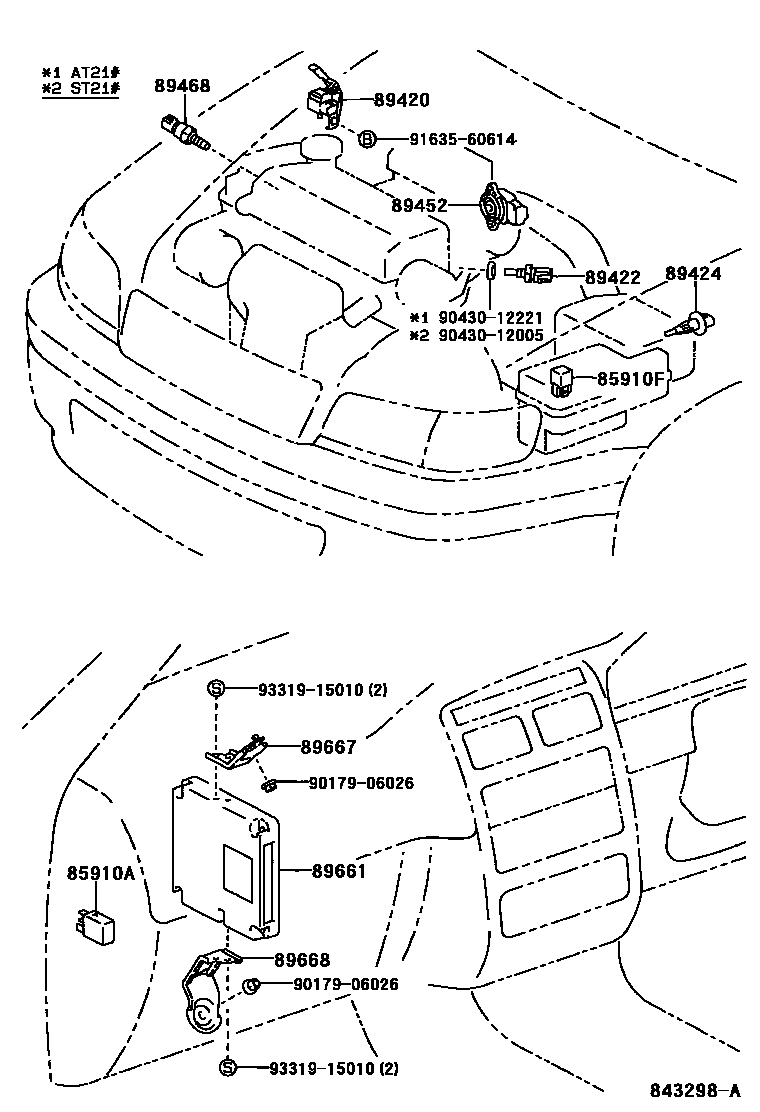

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iAT21#,ST21#199601-199806

main90987-02012iAT21#,ST21#199806-200002

main90987-02015iAT21#,ST21#199806-200002

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iAT21#,ST21#199601-199712

main90987-02012iAT21#,ST215199805-199806

main90987-02012iST210..D4199612-199712

main90987-02012iAT21#,ST215199712-200002

main90987-02012iST210199712-199805

main90987-02015iST210199806-200002

89420SENSOR ASSY, VACUUM

main89420-20250iAT21#,ST21#..EFI199601

main89420-20290iST210..D4199612-199708

main89420-20320iST210..D4199708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAT21#199601

main89422-35010iST21#199601

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT21#,ST21#199601

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iAT21#,ST21#199601-199607

main89452-20140iST210..D4199612-199712

main89452-30150iST210199712

main89452-33030iST21#..EFI199607

89468SENSOR, COMBUSTION PRESSURE

main89468-20020iAT21#199601

89661COMPUTER, ENGINE CONTROL

main89661-21150iST210..EFI199601-199712

main89661-21160iST215..ATM199601-199712

main89661-21190iAT211..MTM199601-199608

main89661-21191iAT211..MTM199608-199712

main89661-21200iAT211..ATM199601-199608

main89661-21201iAT211..ATM199608-199712

main89661-21210iAT211..MTM199712

main89661-21220iAT211..MTM199712

main89661-21230iAT211..ATM199712

main89661-21240iAT211..ATM199712

main89661-21270iST215..MTM199712

main89661-21280iST215..ATM199712

main89661-2D550iAT210..MTM199601-199608

main89661-2D551iAT210..MTM199608-199712

main89661-2D560iAT210..ATM199601-199608

main89661-2D561iAT210..ATM199608-199712

main89661-2D570iAT211..MTM199601-199608

main89661-2D571iAT211..MTM199608-199712

main89661-2D580iAT211..ATM199601-199608

main89661-2D581iAT211..ATM199608-199712

main89661-2D590iST210..EFI199601-199712

main89661-2D600iST215..MTM199601-199712

main89661-2D610iST215..ATM199601-199712

main89661-2G020iST210..D4199612-199708

main89661-2G021iST210..D4199708-199712

main89661-2G170iAT210..MTM199712

main89661-2G180iAT210..ATM199712

main89661-2G190iST210199808

main89661-2G230iST210199712-199808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20380iAT21#,ST21#..EFI199601

main89667-20390iST210..D4199612

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20340iAT21#,ST21#..EFI199601

main89668-20350iST210..D4199612

9017906026

main90179-06026

9043012005

main90430-12005

9043012221

main90430-12221

9163560614

main91635-60614

9331915010

main93319-15010

15 parts on this diagram · 3 diagrams in section
