E
EPC Data

MUDGUARD & SPOILER

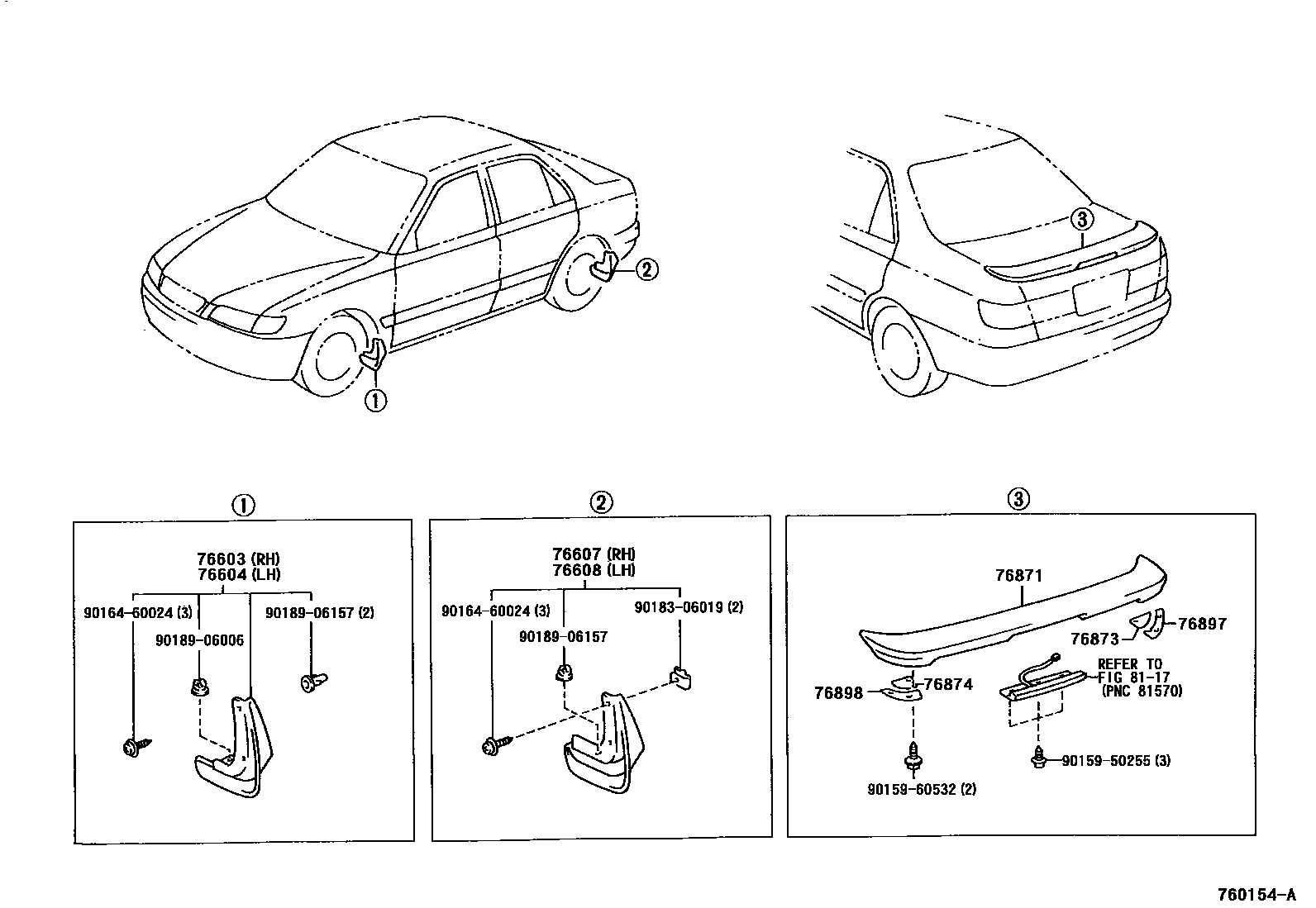

Parts diagram
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-29205-A0i199601-199707
SUPER WHITE 2,040
main76621-29205-A1i199610
main76621-29205-A2i199912-200105
SU.WHITE PM.,051
main76621-29205-B0i199707-199712
SILVER PEARL ME.,1A7
main76621-29205-B1i199612-199712
DK GRAY ME.,22Y
main76621-29205-B4i199712
CRYSTAL SILVER PEARL,1C1
main76621-29205-B5i199712
SILVER M,2EG
main76621-29205-D0i199707-199712
MAGENTA MC.,3L3
main76621-29205-E0i199601-199707
BEIGE M.M.,4N3
main76621-29205-E1i199712
FLAXEN MM,4M7
main76621-29205-F0i200105
CHAMPAGNE ME.,586
main76621-29205-G0i199601-199707
GRAYISH GREEN M.M.,6N0
main76621-29205-G1i199601-199707
DK.GREEN M.M.,6P2
main76621-29205-J0i199601-199707
DK.BLUE M.M.,8L3
main76621-29205-J2i200012
DK.BLUE M.M.,8P4
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-29205-A0i199707
SUPER WHITE 2,040
main76622-29205-A1i199610
main76622-29205-A2i199912-200105
SU.WHITE PM.,051
main76622-29205-B0i199707-199712
SILVER PEARL ME.,1A7
main76622-29205-B1i199612-199712
DK GRAY ME.,22Y
main76622-29205-B3i199712
SILVER M,2EG
main76622-29205-B4i199712
CRYSTAL SILVER PEARL,1C1
main76622-29205-D0i199601-199707
MAGENTA MC.,3L3
main76622-29205-E0i199707-199712
BEIGE M.M.,4N3
main76622-29205-E1i199712
FLAXEN MM,4M7
main76622-29205-F0i200105
CHAMPAGNE ME.,586
main76622-29205-G0i199707-200101
GRAYISH GREEN M.M.,6N0
main76622-29205-G1i199601-199707
DK.GREEN M.M.,6P2
main76622-29205-J0i199707-200101
DK.BLUE M.M.,8L3
main76622-29205-J2i200012
DK.BLUE M.M.,8P4
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-29225-A0i199601-199707
SUPER WHITE 2,040
main76625-29225-A1i199610
main76625-29225-A2i199912-200105
SU.WHITE PM.,051
main76625-29225-B0i199707-199712
SILVER PEARL ME.,1A7
main76625-29225-B1i199612-199712
DK GRAY ME.,22Y
main76625-29225-B4i199712
CRYSTAL SILVER REARL,1C1
main76625-29225-B5i199712
SILVER M,2EG
main76625-29225-D0i199707-199712
MAGENTA MC.,3L3
main76625-29225-E0i199707-199712
BEIGE M.M.,4N3
main76625-29225-E1i199712
FLAXEN MM,4M7
main76625-29225-F0i200105
CHAMPAGNE ME.,586
main76625-29225-G0i199707-200101
GRAYISH GREEN M.M.,6N0
main76625-29225-G1i199707-200101
DK.GREEN M.M.,6P2
main76625-29225-J0i199707-200101
DK.BLUE M.M.,8L3
main76625-29225-J2i200012
DK.BLUE M.M.,8P4
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-29225-A0i199707
SUPER WHITE 2,040
main76626-29225-A1i199610
main76626-29225-A2i199912-200105
SU.WHITE PM.,051
main76626-29225-B0i199601-199707
SILVER PEARL ME.,1A7
main76626-29225-B1i199612-199712
DK GRAY ME.,22Y
main76626-29225-B3i199712
SILVER M,2EG
main76626-29225-B4i199712
CRYSTAL SILVER PEARL,1C1
main76626-29225-D0i199707-199712
MAGENTA MC.,3L3
main76626-29225-E0i199707-199712
BEIGE M.M.,4N3
main76626-29225-E1i199712
FLAXEN MM,4M7
main76626-29225-F0i200105
CHAMPAGNE ME.,586
main76626-29225-G0i199601-199707
GRAYISH GREEN M.M.,6N0
main76626-29225-G1i199707-200101
DK.GREEN M.M.,6P2
main76626-29225-J0i199601-199707
DK.BLUE M.M.,8L3
main76626-29225-J2i200012
DK.BLUE M.M.,8P4
76871SPOILER, REAR
main76871-20914i199601-199707
76873PROTECTOR, REAR SPOILER, NO.2
main76873-20190i199707
76874PROTECTOR, REAR SPOILER, NO.3
main76874-20180i199601-199707
76897PROTECTOR, REAR SPOILER, SIDE RH
main76897-20050i199601-199707
76898PROTECTOR, REAR SPOILER, SIDE LH
main76898-20050i199601-199707
8117CENTER STOP LAMP
→ Go to FIG 81-17
9015950255
main90159-50255
9015960532
main90159-60532
9016460024
main90164-60024
9018306019
main90183-06019
9018906006
main90189-06006
9018906157
main90189-06157

16 parts on this diagram · 1 diagram in section
