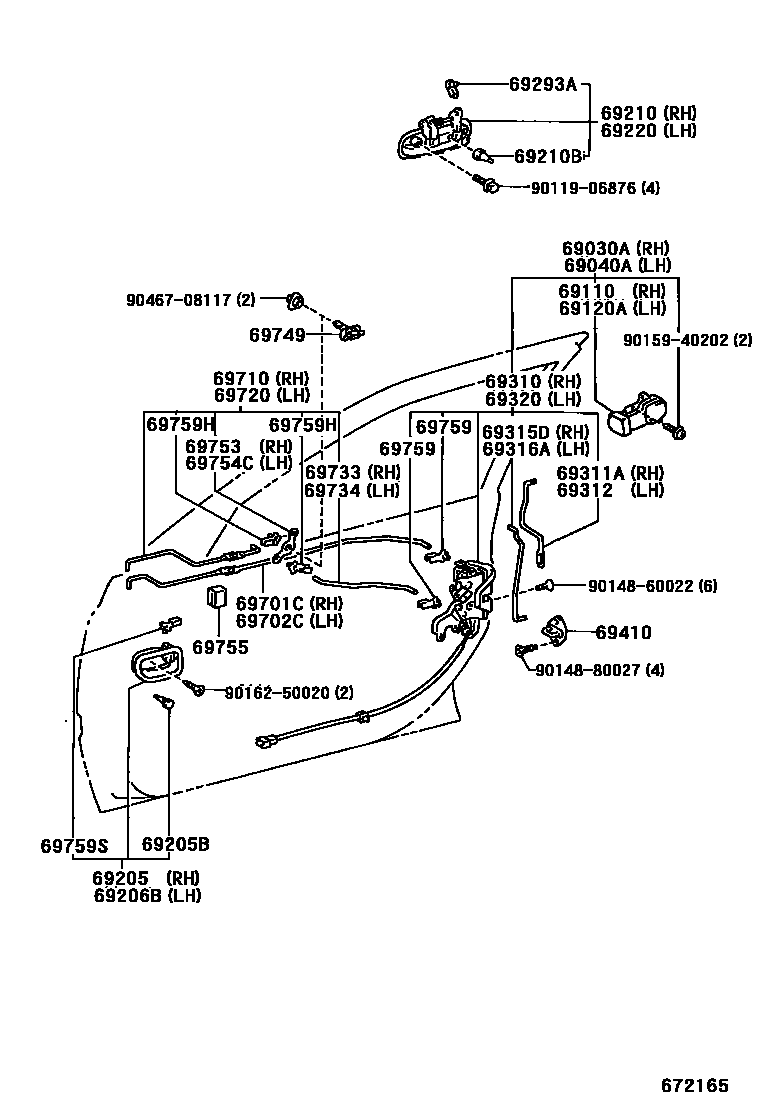

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WARM GRAY PM,22Y
SILVER PEARL ME.,1A7
MAGENTA MC.,3L3
BEIGE M.M.,4N3
GRAYISH GREEN M.M.,6N0
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L3
SUPER WHITE 2,040
CRYSTAL SILVER PEARL,1C1 ,2EG
FLAXEN MM,4M7
GRAYISH GREEN M.M.,6N0
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L3
DK.BLUE MC.,8P4
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WARM GRAY PM,22Y
SILVER PEARL ME.,1A7
MAGENTA MC.,3L3
BEIGE M.M.,4N3
GRAYISH GREEN M.M.,6N0
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L3
SUPER WHITE 2,040
CRYSTAL SILVER PEARL,1C1 ,2EG
FLAXEN MM,4M7
GRAYISH GREEN M.M.,6N0
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L3
DK.BLUE MC.,8P4
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69749CLAMP, FRONT DOOR LOCK LINK
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754CBELLCRANK, DOOR LOCK CONTROL, LH
69755SILENCER, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH,NATURAL
RH,BLUE
LH,GREEN
RH,GRAY
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
BR0WN
69759SSNAP, FRONT DOOR INSIDE HANDLE
9011906876
main90119-06876
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9016250020
main90162-50020
9046708117
main90467-08117
37 parts on this diagram · 1 diagram in section
