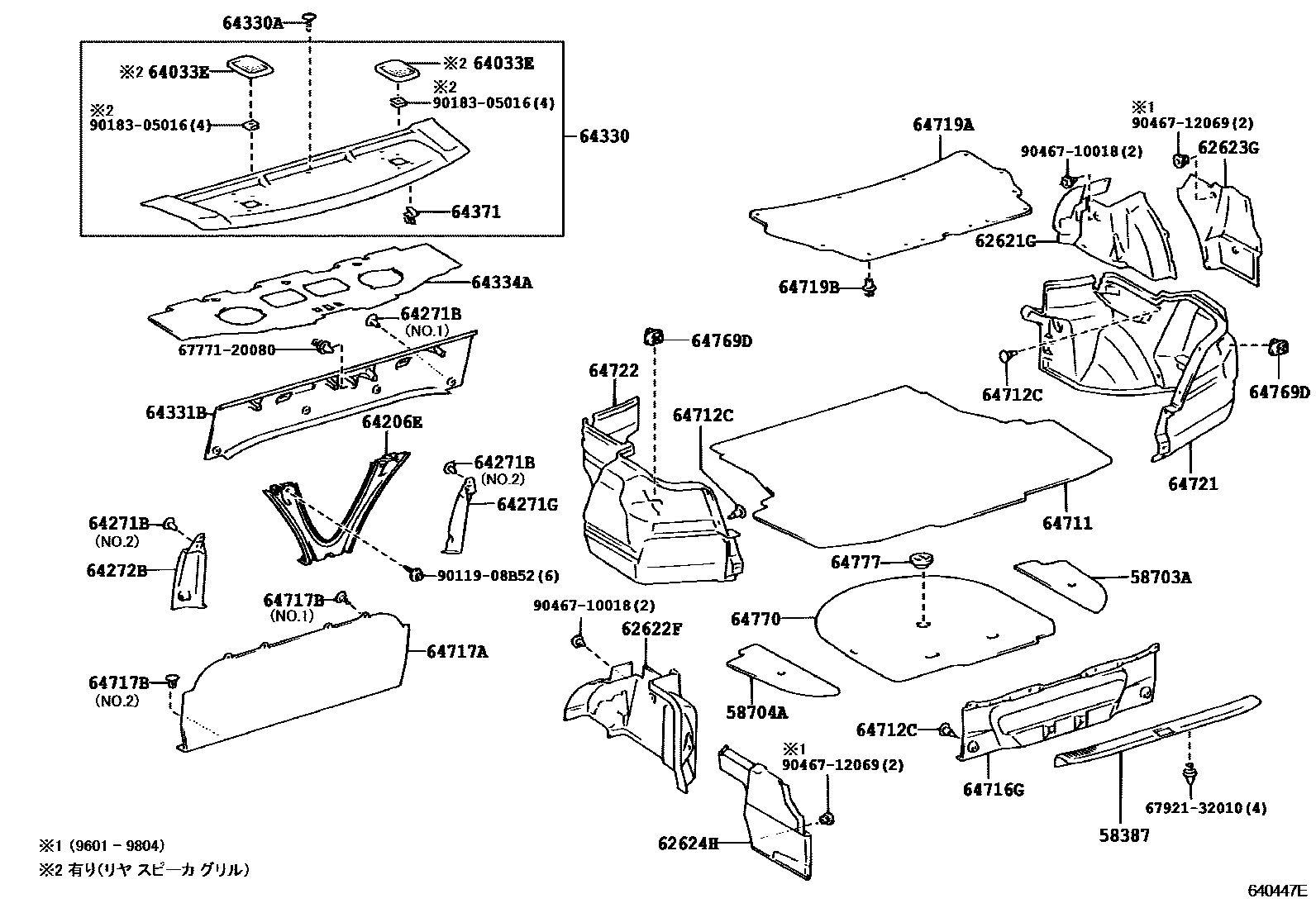

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20090iAT21#,CT21#,ST21#199601

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20200iAT21#,CT21#,ST21#199601-199612

main58703-20220iAT21#,CT21#,ST21#199612

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20160iAT21#,CT21#,ST21#199601-199612

main58704-20180iAT21#,CT21#,ST21#199612

62621GPAD, QUARTER WHEEL HOUSE, INNER FRON RH

main62621-20060iAT21#,CT21#,ST21#199601-199708

sub62621-20061

main62621-20061iAT21#,CT21#,ST21#..EFI,TD199707-199708

62622FPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main62622-20060iAT21#,CT21#,ST21#199601-199708

sub62622-20061

main62622-20061iAT21#,CT21#,ST21#..EFI,TD199707-199708

62623GPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-20030iAT21#,CT21#,ST21#199601-199612

62624HPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62624-20040iAT21#,CT21#,ST21#199601-199612

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64383-16040-B1iAT21#,CT21#,ST21#..EFI,TD199601-199712

SHADOW GRAY,TRIM1#

sub64383-16040

main64383-16040-B1iAT21#,CT21#,ST21#199712-200112

SHADOW GRAY,TRIM11

sub64383-16040

main64383-16040-B3iAT21#,CT21#,ST21#199712-200112

DK.CHARCOAL,TRIM17

sub64383-16040

main64383-16040-E1iAT21#,CT21#,ST21#199601-199712

ANTELOPE,TRIM4#

sub64383-16040

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-20010iAT21#,CT21#,ST21#199712

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07138iST210199601

main90467-07146iST210199601

64271GBOARD, ROOM PARTITION, RH

main64271-20290-C0iST210..EFI199601-199712

BLACK,TRIM1#,4#

main64271-20290-C0iST210..D4199612-199707

BLACK,TRIM4#

main64271-20290-C0iST210199712

BLACK,TRIM11,17

64272BBOARD, ROOM PARTITION, LH

main64272-20050-C0iST210199601-199712

BLACK,TRIM1#,4#

main64272-20050-C0iST210..D4199612-199707

BLACK,TRIM4#

main64272-20050-C0iST210199712

BLACK,TRIM11,17

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2D080-B0iAT21#,CT21#,ST215199601-199712

main64330-2D080-B0iAT21#,CT21#,ST215199712-200112

main64330-2D080-B1iAT21#,CT21#,ST215199712-200112

main64330-2D080-E0iAT21#,CT21#,ST215199601-199712

main64330-2D100-B0iAT21#,CT21#,ST21#199712-200112

main64330-2D100-B0iAT21#,CT21#,ST215199601-199712

main64330-2D100-B1iAT21#,CT21#,ST21#199712-200112

main64330-2D100-E0iAT21#,CT21#,ST215199601-199712

main64330-2D110-B0iAT21#,CT21#,ST215199712-200112

main64330-2D110-B0iAT21#,CT21#,ST215199601-199712

main64330-2D110-B1iAT21#,CT21#,ST215199712-200112

main64330-2D110-E0iAT21#,CT21#,ST215199601-199712

main64330-2D140-B0iST210..D4;AT21#,CT21#,ST215199601-199712

sub64330-2D140

main64330-2D140-B0iAT21#,CT21#,ST21#199712-200112

sub64330-2D140

main64330-2D140-B1iAT21#,CT21#,ST21#199712-200112

sub64330-2D140

main64330-2D140-E0iST210..D4;AT21#,CT21#,ST215199601-199712

sub64330-2D140

main64330-2D150-B0iAT21#,CT21#,ST215199712-200112

main64330-2D150-B0iAT21#,CT21#,ST215199601-199712

main64330-2D150-B1iAT21#,CT21#,ST215199712-200112

main64330-2D150-E0iAT21#,CT21#,ST215199601-199712

main64330-2D160-B0iST210..D4199709-199712

SHADOW GRAY,TRIM1#

main64330-2D160-B0iST210199712-199912

main64330-2D160-B1iST210199712-199912

main64330-2D160-E0iST210..D4199709-199712

ANTELOPE,TRIM4#

main64330-2D170-B0iAT21#,CT21#,ST215199601-199712

sub64330-2D180

main64330-2D170-B0iAT21#,CT21#,ST21#199712-200112

sub64330-2D180

main64330-2D170-B1iAT21#,CT21#,ST21#199712-200112

sub64330-2D180

main64330-2D170-E0iST210..D4;AT21#,CT21#,ST215199601-199712

sub64330-2D180

main64330-2D180-B0iST210199712-200112

main64330-2D180-B0iST210..EFI199601-199712

main64330-2D180-B1iST210199712-200112

main64330-2D180-E0iST210199601-199712

main64330-2D190-B0iAT21#,CT21#,ST215199601-199712

main64330-2D190-B0iAT21#,CT21#,ST215199712-200112

main64330-2D190-B1iAT21#,CT21#,ST215199712-200112

main64330-2D190-E0iAT21#,CT21#,ST215199601-199712

main64330-2D200-B0iAT21#,CT21#,ST21#199712-200112

main64330-2D200-B0iAT21#,CT21#,ST215199601-199712

main64330-2D200-B1iAT21#,CT21#,ST21#199712-200112

main64330-2D200-E0iST210..D4;AT21#,CT21#,ST215199601-199712

main64330-2D210-B0iST210..EFI199601-199712

main64330-2D210-B0iST210199712-200112

main64330-2D210-B1iST210199712-200112

main64330-2D210-E0iST210199601-199712

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-B3iAT21#,CT21#,ST21#200010

DK.CHARCOAL,TRIM17

sub90467-06020

main90467-06020-P0iAT21#,CT21#,ST21#200010

SHADOW GRAY,TRIM11

sub90467-06020

main90904-67023-B0iAT21#,CT21#,ST21#199712-200010

SHADOW GRAY,TRIM11

sub90904-67023

main90904-67023-B0iAT21#,CT21#,ST21#..EFI,TD199601-199707

SHADOW GRAY,TRIM11,13

sub90904-67023

main90904-67023-B0iAT21#,CT21#,ST21#199707-199712

SHADOW GRAY,TRIM13

sub90904-67023

main90904-67023-B1iAT21#,CT21#,ST21#199712-200010

DK.CHARCOAL,TRIM17

sub90904-67023

main90904-67023-E1iAT21#,CT21#,ST21#199601-199712

ANTELOPE,TRIM4#

sub90904-67023

64331BBOARD, PACKAGE TRAY TRIM, FRONT

main64331-20740-C0iST210..EFI199601-199709

BLACK,TRIM1#,4#

sub64331-20750

main64331-20740-C0iST210..D4199612-199707

BLACK,TRIM4#

sub64331-20750

main64331-20750-C0iST210199709-199712

BLACK,TRIM1#,4#

main64331-20750-C0iST210199712

BLACK,TRIM11,17

64334APAD, PACKAGE TRAY TRIM

main64334-20240iAT21#,CT21#,ST21#199601-199712

main64334-20280iAT21#,CT21#,ST21#199712

64371RETAINER, PACKAGE TRAY TRIM

main64371-16010iAT21#,CT21#,ST21#199601

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20800-C0iAT21#,CT21#,ST215199601-199712

BLACK,TRIM1#,4#

main64711-20800-C0iAT21#,CT21#,ST21#199712

BLACK,TRIM11,17

main64711-2B140-C0iST210199712

main64711-2B140-C0iST210..D4199707-199712

main64711-2B140-C0iST210..D4199612-199707

BLACK,TRIM4#

main64711-2B140-C0iST210..EFI199601-199712

BLACK,TRIM1#,4#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C0iAT21#,CT21#,ST21#199807

BLACK,TRIM11,17

sub90467-08186

main90467-08188iAT21#,CT21#,ST21#199601-199807

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20600-C0iAT21#,CT21#,ST21#199601-199712

BLACK,TRIM1#,4#

main64716-20600-C0iST210..D4199612-199707

BLACK,TRIM4#

main64716-20600-C0iAT21#,CT21#,ST21#199712

BLACK,TRIM11,17

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20330-C1iAT21#,CT21#,ST215199601-199708

BLACK,TRIM1#,4#

main64717-20350-C0iST210..D4;AT21#,CT21#,ST215199708-199712

BLACK,TRIM1#,4#

main64717-20350-C0iAT21#,CT21#,ST21#199712

BLACK,TRIM11,17

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07090-C4iST210..D4;AT21#,CT21#,ST215199601-199712

sub90467-07090

sub90467-07207

main90467-07090-C4iAT21#,CT21#,ST21#199712-199811

sub90467-07090

sub90467-07207

main90467-08186-C0iAT21#,CT21#,ST21#199811

sub90467-08186

main90467-09066-22iAT21#,CT21#,ST21#199712

BLACK,TRIM11,17

sub90467-09066

main90467-09066-22iAT21#,CT21#,ST215199601-199712

sub90467-09066

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20130-C0iAT21#,CT21#,ST21#199712

BLACK,TRIM11,17

main64719-20130-C0iST210..D4199612-199707

BLACK,TRIM4#

main64719-20130-C0iAT21#,CT21#,ST21#199601-199712

BLACK,TRIM1#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iAT21#,CT21#,ST21#199807

BLACK,TRIM11,17

sub90467-08186

main90467-08188iAT21#,CT21#,ST21#199601-199807

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20320-C0iAT21#,CT21#,ST21#199601-199612

BLACK,TRIM1#,4#

main64721-20360-C0iAT21#,CT21#,ST21#199612-199712

BLACK,TRIM1#,4#

main64721-20360-C0iST210..D4199612-199707

BLACK,TRIM4#

main64721-20360-C0iAT21#,CT21#,ST21#199712

BLACK,TRIM11,17

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-20280-C0iAT21#,CT21#,ST21#199601-199612

BLACK,TRIM1#,4#

main64722-20320-C0iST210..D4199612-199707

BLACK,TRIM4#

main64722-20320-C0iST210..D4199612-199712

BLACK,TRIM1#,4#

main64722-20320-C0iAT21#,CT21#,ST21#199712

BLACK,TRIM11,17

64769DKNOB, JACK COVER

main64769-20010-C0iAT21#,CT21#,ST21#199601

BLACK

sub64769-20010

64770COVER ASSY, SPARE WHEEL

main64770-20200iAT21#,CT21#,ST21#199601

main64770-20290iAT21#,CT21#,ST21#199601

64777CLAMP, SPARE WHEEL COVER

main64777-32030iAT21#,CT21#,ST21#199601

6777120080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20080

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9011908B52

main90119-08B52

9018305016

main90183-05016

9046710018

main90467-10018

9046712069

main90467-12069

35 parts on this diagram · 1 diagram in section
