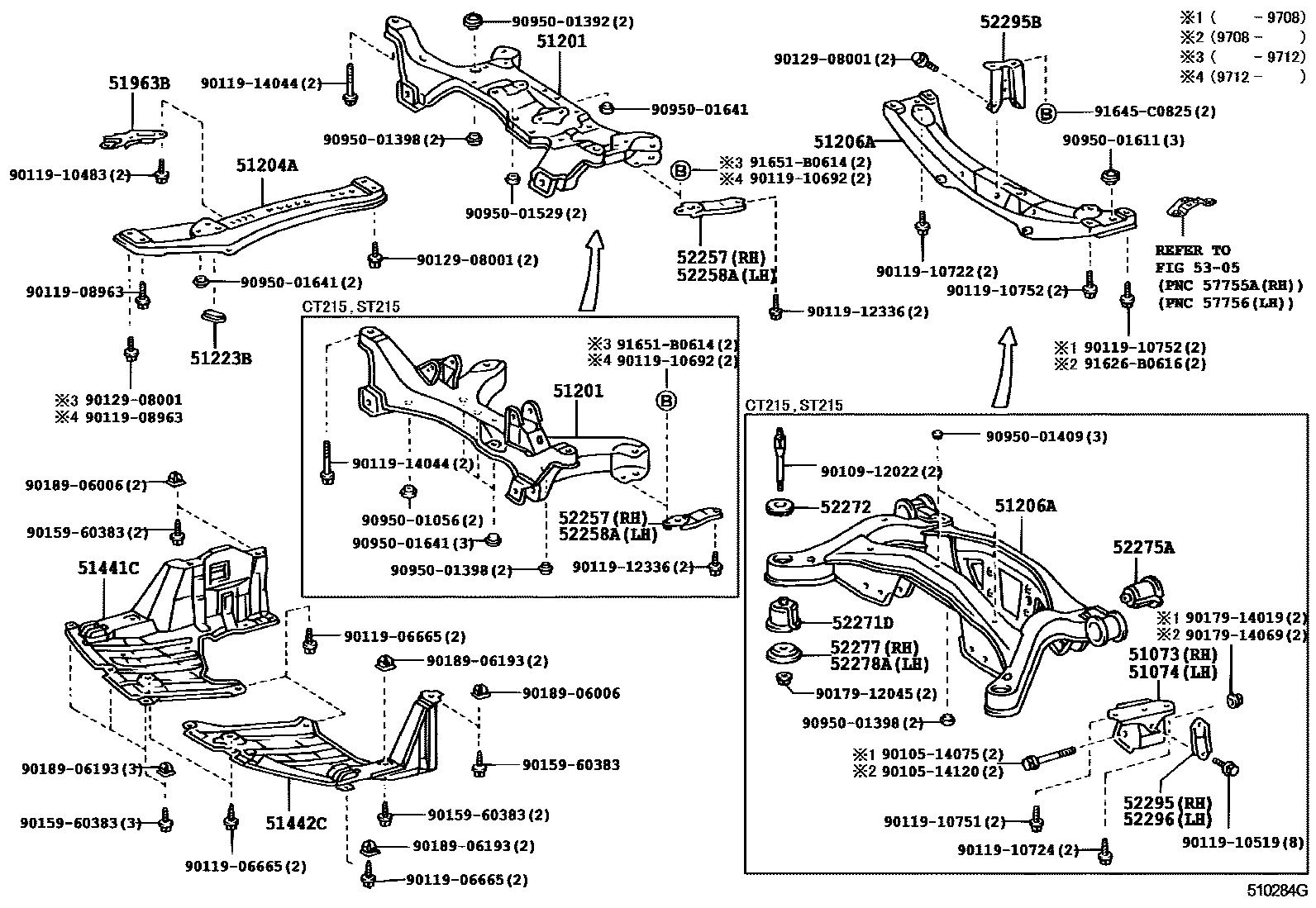

SUSPENSION CROSSMEMBER & UNDER COVER

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-32010iCT215,216,ST215199601

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-32010iCT215,216,ST215199601

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20290iCT215,216,ST215199601

main51201-20320iAT21#,CT210,211,ST210199601

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iAT21#,CT210,211,ST210199601-199805

main51204-20111iAT21#,CT211,ST210199805

main51204-20121iCT215,216,ST215199601

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20060iCT215,ST215199601-199712

main51206-20080iAT21#,CT210,211,ST210199601-199912

main51206-21010iCT216,ST215199712-199907

main51206-21030iAT21#,CT211,ST210199912

main51206-21040iCT216,ST215199907

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT21#,CT21#,ST21#199601

51441CCOVER, ENGINE UNDER, RH

main51441-20380iAT21#,CT21#,ST21#199601

51442CCOVER, ENGINE UNDER, LH

main51442-20450iAT21#,CT21#,ST21#199601

51963BHOOK, TRANSPORT, FRONT RH

main51963-20130iAT21#,CT21#,ST21#199601

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iAT21#,CT210,211,ST210199601

main52257-20020iCT215,ST215199601-199708

main52257-21020iCT215,216,ST215199708

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iAT21#,CT210,211,ST210199601

main52258-20020iCT215,ST215199601-199708

main52258-21020iCT215,216,ST215199708

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32010×2iCT215,216,ST215199601

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010×2iCT215,216,ST215199601

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-32011×2iCT215,216,ST215199601

52277RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-32010iCT215,216,ST215199601

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-32010iCT215,216,ST215199601

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-21010iCT215,216,ST215199708

main52295-32010iCT215,ST215199601-199708

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20030iAT21#,CT210,211,ST210199601

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-21010iCT215,216,ST215199708

main52296-32010iCT215,ST215199601-199708

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9010514075

main90105-14075

9010514120

main90105-14120

9010912022

main90109-12022

9011906665

main90119-06665

9011908963

main90119-08963

9011910483

main90119-10483

9011910519

main90119-10519

9011910692

main90119-10692

9011910722

main90119-10722

9011910724

main90119-10724

9011910751

main90119-10751

9011910752

main90119-10752

9011912336

main90119-12336

9011914044

main90119-14044

9012908001

main90129-08001

9015960383

main90159-60383

9017912045

main90179-12045

9017914019

main90179-14019

9017914069

main90179-14069

9018906006

main90189-06006

9018906193

main90189-06193

9095001056

main90950-01056

9095001392

main90950-01392

9095001398

main90950-01398

9095001409

main90950-01409

9095001529

main90950-01529

9095001611

main90950-01611

9095001641

main90950-01641

91626B0616

main91626-B0616

91645C0825

main91645-C0825

91651B0614

main91651-B0614

51 parts on this diagram · 1 diagram in section
