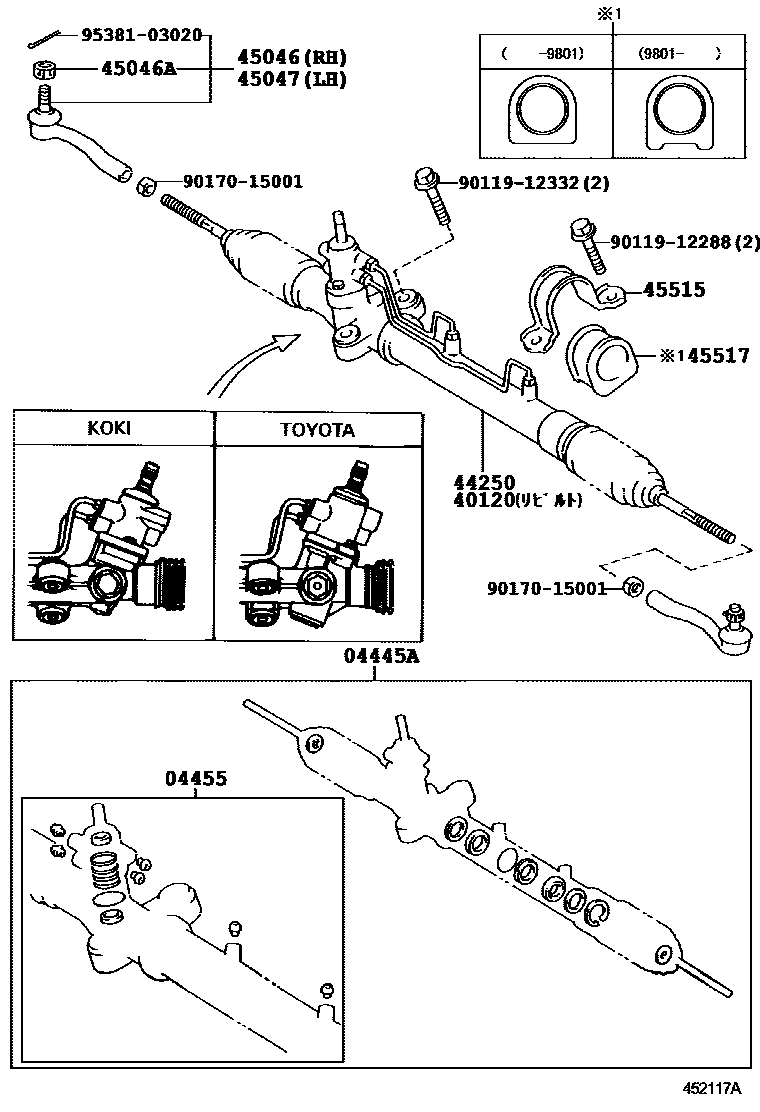

FRONT STEERING GEAR & LINK

0001 1 0002 1TOYOTA 0003 1KOKI 0004 1 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20161iAT211,ST210; CT215,216,ST215199604-200112

main04445-20170iAT211,ST210199604-200112

main04445-20210iAT210199601-199712

main04445-20240iCT210,211199601-200112

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20080iAT210199601-199712

main04455-20120iAT211,CT21#,ST21#199601-199604

main04455-20130iAT210199712-200112

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-20611iAT211,ST210199606-200112

main40120-20621iAT211,ST210199601-200112

main40120-20681iAT210199601-200112

main40120-20691iCT210,211199601-200112

main40120-20732iCT215,216,ST215199601-200112

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20610iAT211,ST210199604-199606

main44250-20611iAT211,ST210199606-200112

main44250-20620iAT211,ST210199601-199605

main44250-20621iAT211,ST210199605-200112

main44250-20680iAT210199601-199606

main44250-20681iAT210199606-200112

main44250-20690iCT210199601-199605

main44250-20691iCT210,211199605-200112

main44250-20731iCT215,ST215199601-199605

main44250-20732iCT215,216,ST215199605-200112

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCT215,216,ST215199601-200112

main45046-29335iAT21#,CT210,211,ST210199601-200112

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAT21#,CT21#,ST21#199601

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCT215,216,ST215199601-200112

main45047-29105iAT21#,CT210,211,ST210199601-200112

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iCT210,211199601

main45515-20160iAT21#,ST210199601

main45515-20280iCT215,216,ST215199601

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20130iCT215,216,ST215199601-200112

main45517-20150iAT211,ST210; CT210,211199604-199801

main45517-20190iAT211,ST210199604-199801

main45517-20250iAT211,ST210; CT211199801-200112

main45517-20260iAT210; AT211,ST210199801-200112

9011912288

main90119-12288

9011912332

main90119-12332

9017015001

main90170-15001

9538103020

main95381-03020

13 parts on this diagram · 5 diagrams in section
