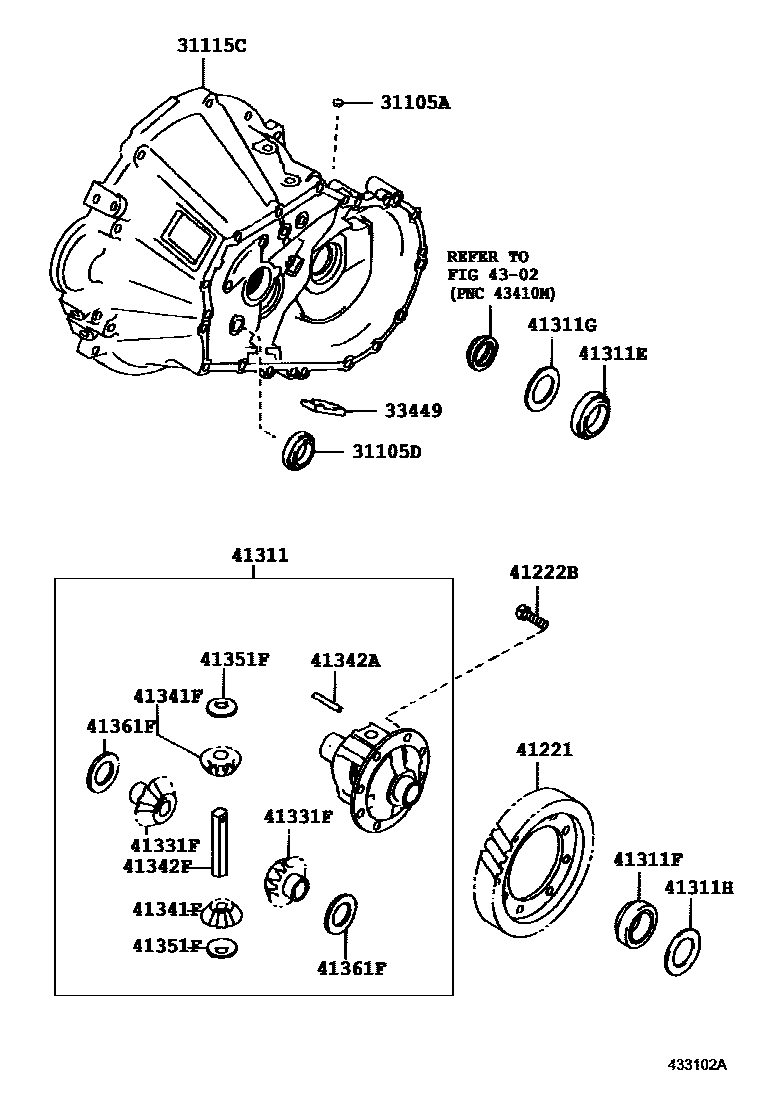

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C57,C58 0002 1S51 0004 1E56F,E57F 0005 1S55F 0006 1A245E,A247E 0008 1A241E,A241L 0010 1A540H 0011 1A540H 0012 1A241F,A243F

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-21010iST215..MTM199712-200112

main31105-32070iCT210,211..MTM199704-200112

main31105-33020iCT210..MTM199601-199703

sub31105-33022

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAT21#,CT210,211..MTM199601-200112

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25016iAT21#..MTM199601-200112

main90311-30006iCT210,211,215,ST215..MTM199601-200112

sub90311-30017

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-16040iAT21#..MTM199601-199603

sub31115-16041

main31115-16041iAT21#..MTM199603-199704

sub31115-16042

main31115-16042iAT21#..MTM199704

main31115-33012iCT215,ST215..MTM199601-199712

sub31115-33013

33449MAGNET, TRANSMISSION

main33449-12020iAT21#..MTM199601-200112

main33449-20010iCT215,ST215..MTM199601-199712

main33449-32020iCT210..MTM199601-200112

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12290iCT215,ST215..MTM199601-199712

main41221-12330iAT21#..MTM199601-200112

sub41221-52260

main41221-20210iCT210,211,ST210..ATM199601-200112

main41221-20230iAT21#..ATM199601-200112

main41221-20300iCT211..MTM199712-200112

main41221-21040iST215..MTM199712-200112

main41221-21090iCT216,ST215..ATM199712-200112

main41221-32070iST215..ATM199601-199712

main41221-32080iCT210..MTM199601-199712

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iAT21#,CT210,211,ST210..ATM199601-200112

main90105-11040iAT21#,CT211,ST215..MTM199601-200112

main90105-12150iCT215,ST215..MTM199601-199712

41311CASE, FRONT DIFFERENTIAL

main41301-12041iAT21#..MTM199601-200112

main41301-20112iCT210,211,ST210..ATM199601-200112

main41301-20150iAT21#..ATM199601-200112

main41301-21040iST215..MTM199712-200112

main41301-21050iCT216,ST215..ATM199712-200112

main41301-32060iCT210,211..MTM199601-199902

sub41301-32061

main41301-32061iCT211..MTM199902-200112

main41302-32030iST215..ATM199601-199712

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAT21#..MTM199601-200112

main90366-40016iCT210,211..MTM199601-200112

main90366-50045iCT216,ST215199712-200112

main90366-57001iCT215,ST215..MTM199601-199712

main90366-67004iST215..ATM199601-199712

main90368-38010iAT21#..ATM199601-200112

main90368-40002iCT210,211,ST210..ATM199601-200112

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40064iCT210..MTM199601-200112

main90366-42001iAT21#..ATM199601-200112

main90366-44001iCT21#,ST21#..ATM199601-200112

main90366-50014iCT215,ST215..MTM199601-199712

main90366-55034iST215..ATM199601-199712

main90368-38010iAT21#..MTM199601-200112

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41012iAT21#..MTM199601-199908

main90201-41024iAT21#..ATM199601

main90560-41003iAT21#..MTM199908

main90564-45015iST210..D4199612

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41024iST210..D4;AT21#..ATM199601-200112

main90201-41025iST210..D4;AT21#..ATM199601-200112

main90201-41026iST210..D4;AT21#..ATM199601-200112

main90201-41027iST210..D4;AT21#..ATM199601-200112

main90201-41028iST210..D4;AT21#..ATM199601-200112

main90201-41029iST210..D4;AT21#..ATM199601-200112

main90201-41030iST210..D4;AT21#..ATM199601-200112

main90201-41031iST210..D4;AT21#..ATM199601-200112

main90201-41032iST210..D4;AT21#..ATM199601-200112

main90201-41033iST210..D4;AT21#..ATM199601-200112

main90201-41034iST210..D4;AT21#..ATM199601-200112

main90201-41035iST210..D4;AT21#..ATM199601-200112

main90201-41036iST210..D4;AT21#..ATM199601-200112

main90201-41039iST210..D4;AT21#..ATM199601-200112

main90201-41040iST210..D4;AT21#..ATM199601-200112

main90201-41041iST210..D4;AT21#..ATM199601-200112

main90201-41042iST210..D4;AT21#..ATM199601-200112

main90201-41043iST210..D4;AT21#..ATM199601-200112

main90201-41044iST210..D4;AT21#..ATM199601-200112

main90201-41046iAT21#..MTM199601-199908

sub90564-41014

main90201-41047iAT21#..MTM199601-199908

sub90564-41015

main90201-41048iAT21#..MTM199601-199908

sub90564-41016

main90201-41049iAT21#..MTM199601-199908

sub90564-41017

main90201-41050iAT21#..MTM199601-199908

sub90564-41018

main90201-41051iAT21#..MTM199601-199908

sub90564-41019

main90201-41052iAT21#..MTM199601-199908

sub90564-41020

main90201-41053iAT21#..MTM199601-199908

sub90564-41021

main90201-41054iAT21#..MTM199601-199908

sub90564-41022

main90201-41055iAT21#..MTM199601-199908

sub90564-41023

main90201-41056iAT21#..MTM199601-199908

sub90564-41024

main90201-41057iAT21#..MTM199601-199908

sub90564-41025

main90201-41058iAT21#..MTM199601-199908

sub90564-41026

main90201-41059iAT21#..MTM199601-199908

sub90564-41027

main90201-41060iAT21#..MTM199601-199908

sub90564-41028

main90201-41061iAT21#..MTM199601-199908

sub90564-41029

main90201-41062iAT21#..MTM199601-199908

sub90564-41030

main90201-41063iAT21#..MTM199601-199908

sub90564-41031

main90201-41064iAT21#..MTM199601-199908

sub90564-41032

main90201-45004iCT21#,ST21#..ATM199601-200112

main90201-45005iCT21#,ST215..ATM199601-200112

main90201-45006iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45007iCT21#,ST215..ATM199601-200112

main90201-45008iCT21#,ST215..ATM199601-200112

main90201-45009iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45010iCT21#,ST215..ATM199601-200112

main90201-45011iCT21#,ST215..ATM199601-200112

main90201-45012iCT21#,ST215..ATM199601-200112

main90201-45013iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45014iCT21#,ST215..ATM199601-200112

main90201-45015iCT21#,ST215..ATM199601-200112

main90201-45016iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45017iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45018iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45019iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45020iCT21#,ST215..ATM199601-200112

main90201-45021iCT210,ST210..ATM..(EFI,TD)199601-200112

main90201-45022iCT210,ST210..ATM..(EFI,TD)199601-200112

main90564-41014iAT21#..MTM199908-200112

main90564-41015iAT21#..MTM199908-200112

main90564-41016iAT21#..MTM199908-200112

main90564-41017iAT21#..MTM199908-200112

main90564-41018iAT21#..MTM199908-200112

main90564-41019iAT21#..MTM199908-200112

main90564-41020iAT21#..MTM199908-200112

main90564-41021iAT21#..MTM199908-200112

main90564-41022iAT21#..MTM199908-200112

main90564-41023iAT21#..MTM199908-200112

main90564-41024iAT21#..MTM199908-200112

main90564-41025iAT21#..MTM199908-200112

main90564-41026iAT21#..MTM199908-200112

main90564-41027iAT21#..MTM199908-200112

main90564-41028iAT21#..MTM199908-200112

main90564-41029iAT21#..MTM199908-200112

main90564-41030iAT21#..MTM199908-200112

main90564-41031iAT21#..MTM199908-200112

main90564-41032iAT21#..MTM199908-200112

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAT21#199601-200112

main41331-12030iCT215,ST215199601-199712

main41331-32010iCT210,ST210199601-200112

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAT21#199601-200112

main41341-20011iCT215,ST215199601-199712

main41341-30011iCT21#,ST21#199601-200112

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iAT21#,CT210,ST210199601-200112

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12040iCT215,ST215..MTM199601-199712

main41342-12140iAT21#..MTM199601-200112

sub41342-20060

main41342-20060iAT21#..ATM199601-200112

main41342-21020iCT216,ST215..ATM199712-200112

main41342-32020iST215..MTM;CT211,ST210199601-200112

sub41342-52060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12010iCT215,ST215..MTM199601-199712

main41351-12020iAT21#199601-200112

main41351-32010iCT210,ST210199601-200112

main41351-32030iST215..ATM199601-199712

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12330iCT215,ST215..MTM199601-199712

main41361-12340iCT215,ST215..MTM199601-199712

main41361-12350iCT215,ST215..MTM199601-199712

main41361-12360iCT215,ST215..MTM199601-199712

main41361-12370iCT215,ST215..MTM199601-199712

main41361-12380iCT215,ST215..MTM199601-199712

main41361-12390iCT215,ST215..MTM199601-199712

main41361-12400iCT215,ST215..MTM199601-199712

main41361-12410iCT215,ST215..MTM199601-199712

main41361-12420iCT215,ST215..MTM199601-199712

main41361-17010iAT21#,CT210,ST210..ATM199601-200112

main41361-17020iAT21#,CT21#,ST21#..ATM199601-200112

main41361-17030iAT21#,CT21#,ST21#..ATM199601-200112

main41361-17040iAT21#,CT21#,ST21#..ATM199601-200112

main41361-17050iAT21#,CT210,ST210..ATM199601-200112

main41361-17060iAT21#,CT21#,ST21#..ATM199601-200112

main41361-22020iAT21#,CT211,ST215..MTM199601-200112

main41361-22030iAT21#,CT211,ST215..MTM199601-200112

main41361-22040iAT21#,CT211,ST215..MTM199601-200112

main41361-22140iAT21#,CT211,ST215..MTM199601-200112

main41361-22150iAT21#,CT210..MTM199601-200112

main41361-22160iAT21#,CT210..MTM199601-200112

4302

19 parts on this diagram · 9 diagrams in section
