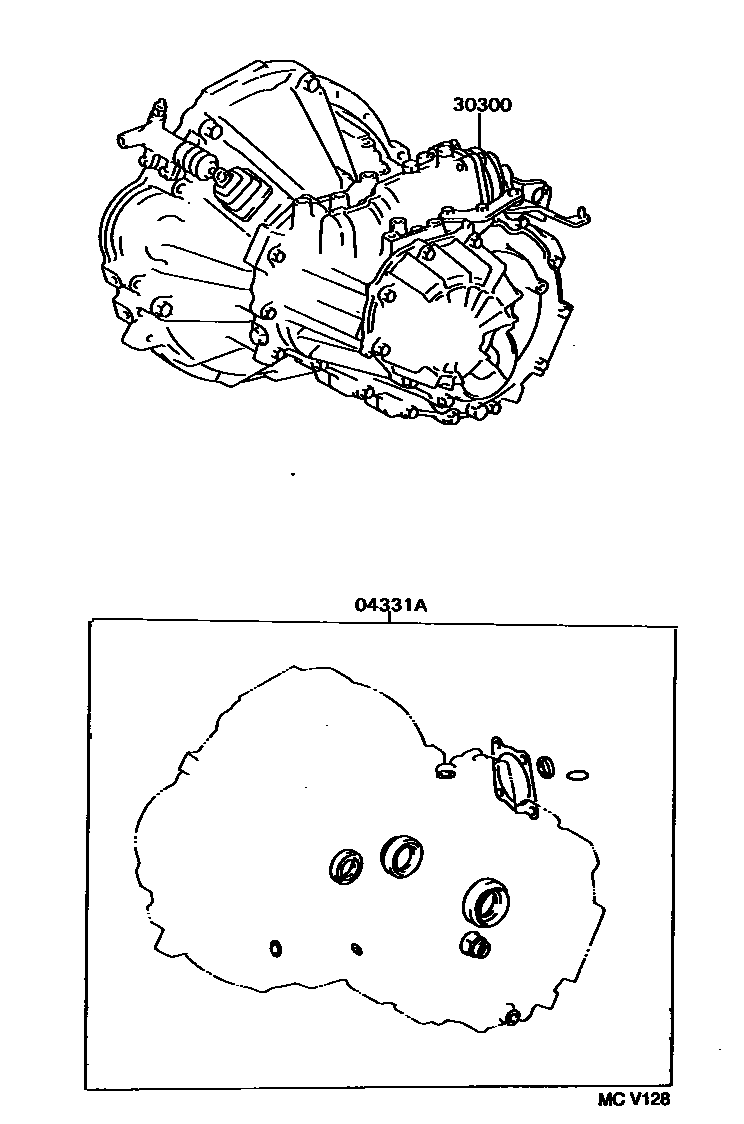

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C57,C58 0002 1S51,S55F 0004 1E56F,E57F

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12101iCT215,ST215..MTM199601-199712

main04331-12110iAT21#..MTM199601-200112

main04331-21010iST215..MTM199712-200002

main04331-21020iST215..MTM200002-200112

main04331-32011iCT210,211..MTM199601-200002

main04331-32040iCT211..MTM200002-200112

30300TRANSAXLE ASSY, MANUAL

main30300-21100iST215..MTM199712-200112

main30300-2B680iAT211..MTM199601-200112

main30300-2B690iAT210..MTM199601-200112

main30300-2B700iCT210..MTM199601-199712

main30300-2B710iST215..MTM199601-199712

main30300-2B720iCT215199601-199712

main30300-2B840iCT211..MTM199712-200112

2 parts on this diagram · 3 diagrams in section
