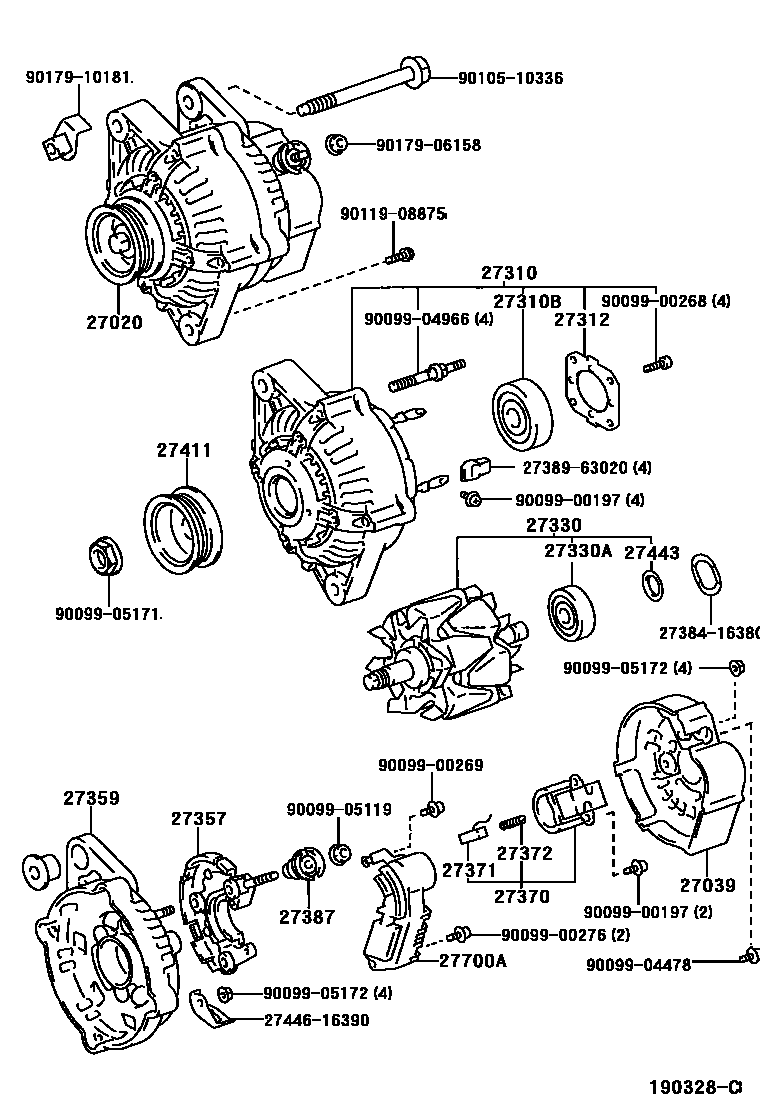

ALTERNATOR

0001 112V 70A 0002 112V 70A,80A 0003 112V 70A 0004 112V 80A 0006 112V 80A 0007 112V 80A 0008 112V 90A,12V 100A 0009 112V 100A

27020ALTERNATOR ASSY

main27060-16380i4AFE,7AFE..AT21#..MTM199601

main27060-16390i4AFE,7AFE..AT21#..ATM199601-199705

sub27060-16440

main27060-16440i4AFE,7AFE..AT21#..ATM199705

sub27060-16450

main27060-64270i2CT,3CTE..CT211,215;2CT,3CTE..CT210,216..ATM199601-199808

main27060-64280i2CT..CT210..MTM199601-199712

sub27060-64270

main27060-64340i3CTE..CT216199808

main27060-74580i3SFE..ST215..MTM199601-199712

sub27060-74630

main27060-74590i3SFE..ST21#..ATM199601-199712

sub27060-74640

main27060-74650i3SFE..ST215..ATM199712

main27060-74700i3SFSE..ST210199612-199708

sub27060-74810

main27060-74800i3SFSE..ST210199712

main27060-74810i3SFSE..ST210199708-199712

27039COVER, ALTERNATOR REAR END

main27039-16380i4AFE,7AFE..AT21#..MTM199601-199712

main27039-20020i2CT,3CTE..CT21#199601-200104

sub27039-28090

main27039-20060i3CTE..CT216199808-200104

main27039-20160i3CTE..CT216200104

main27039-28090i3CTE..CT211200104

main27039-50090i3SFSE..ST210199612-199708

sub27039-17230

main27039-55080i4AFE,7AFE,3SF#..AT21#,ST21#..ATM199601-200104

sub27039-70470

main27039-70470i3SFE..ST215;4AFE,7AFE..AT21#..ATM200104

main27039-73020i3SFE..ST215..MTM199601-199701

sub27039-16380

main27039-74700i3SFSE..ST210199712-200104

sub27039-30020

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i4AFE,7AFE..AT21#..MTM199601

main27310-15180i4AFE,7AFE..AT21#..ATM199601-199705

sub27310-16430

main27310-16430i4AFE,7AFE..AT21#..ATM199705

main27310-64450i2CT..CT210..MTM199601-199712

main27310-64470i3CTE..CT211199601-199808

main27310-64490i3CTE..CT216199808

main27310-70100i3SFE..ST215..MTM199601-199712

main27310-74120i3SFE..ST215..MTM199601-199712

main27310-74490i3SFE..ST215..ATM199712

sub27310-70440

main27310-74570i3SFSE..ST210199708

main27310-74600i3SFSE..ST210199612-199705

sub27310-74620

main27310-74620i3SFSE..ST210199705-199708

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i4AFE,7AFE..AT21#..MTM199601-199712

main90099-10192i3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM199601-199712

27312PLATE, RETAINER

main27312-42010i2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM199601-199712

main27312-70200i4AFE,7AFE,3SFE..AT21#,ST215..MTM199601-199712

27330ROTOR ASSY, ALTERNATOR

main27330-16390i4AFE,7AFE..AT21#..ATM199609-200007

main27330-20070i3CTE..CT216200007

main27330-46090i3SFSE..ST210199612-199708

main27330-64520i3CTE..CT216199808-200007

sub27330-20070

main27330-64570i3SFE..ST215..MTM199601-199712

main27330-72101i4AFE,7AFE..AT21#..MTM199601-199701

main27330-72280i3CTE..CT211;3SFE..ST215..ATM199601-200007

sub27330-74550

main27330-74550i3SFSE..ST210199708-200007

main27330-74730i3SFE..ST215..ATM199812

sub27330-74550

main27330-76030i2CT..CT210..MTM;3SFE..ST21#..ATM199601-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AFE,7AFE,2CT,3SFE..AT21#,CT21#,ST21#199601-199708

main90099-10194i3SFSE..ST210199612-199708

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i3SFSE..ST210199708

main27357-16380i4AFE,7AFE..AT21#..MTM199601-199712

main27357-20060i3CTE..CT216199612-199708

main27357-55080i4AFE,7AFE..AT21#..ATM;3CTE,3SFE..CT211,ST215199601-199808

main27357-63020i3SFE..ST215..MTM199601-199701

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15180i4AFE,7AFE..AT21#..ATM199601

main27359-16380i4AFE,7AFE..AT21#..MTM199601

main27359-43161i3SFE..ST215..MTM199601-199701

main27359-43162i3SFE..ST215..MTM199701-199712

main27359-64450i3CTE..CT211199601-199808

main27359-64490i3CTE..CT216199808

main27359-74330i3SFE..ST21#..ATM199601-199712

main27359-74550i3SFSE..ST210199708-199712

sub27359-70440

main27359-74600i3SFSE..ST210199612-199705

sub27359-74620

main27359-74620i3SFSE..ST210199705-199708

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AFE,7AFE,3SFE..AT21#,ST215..MTM199601-199712

main27370-75060i3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM199601-199712

27371BRUSH, ALTERNATOR

main27371-70300i4AFE,7AFE,3SFE..AT21#,ST215..MTM199601-199712

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AFE,7AFE,3SFE..AT21#,ST215..MTM199601-199712

sub27372-87501

27387INSULATOR, TERMINAL

main27387-42020i2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM199601-199708

main27387-42021i2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM199708-199712

main27387-70170i4AFE,7AFE,3SFE..AT21#,ST215..MTM199601-199709

main27387-70171i4AFE,7AFE,3SFE..AT21#,ST215..MTM199709-199712

27411PULLEY, ALTERNATOR

main27411-16180i4AFE,7AFE..AT21#..MTM199601

main27411-16211i3SFE..ST215..MTM199601-199712

main27411-42030i3SFE..ST215;4AFE,7AFE,3SFSE..AT21#,ST210..ATM199601-199712

main27411-64360i3CTE..CT211199601-199808

main27411-64490i3CTE..CT216199808

27443COVER, ALTERNATOR BEARING

main27443-63020i4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21#199601

27700AREGULATOR ASSY, GENERATOR

main27700-62010i2CT,3CTE..CT21#199601

main27700-74040i4AFE,7AFE,3SF#..AT21#,ST21#199601-199712

main27700-74060i3SFSE..ST210199712

2738416380WASHER

main27384-16380

2738963020INSULATOR, TERMINAL

main27389-63020

2744616390CLIP, ALTERNATOR CORD

main27446-16390

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510336

main90105-10336

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

32 parts on this diagram · 8 diagrams in section
