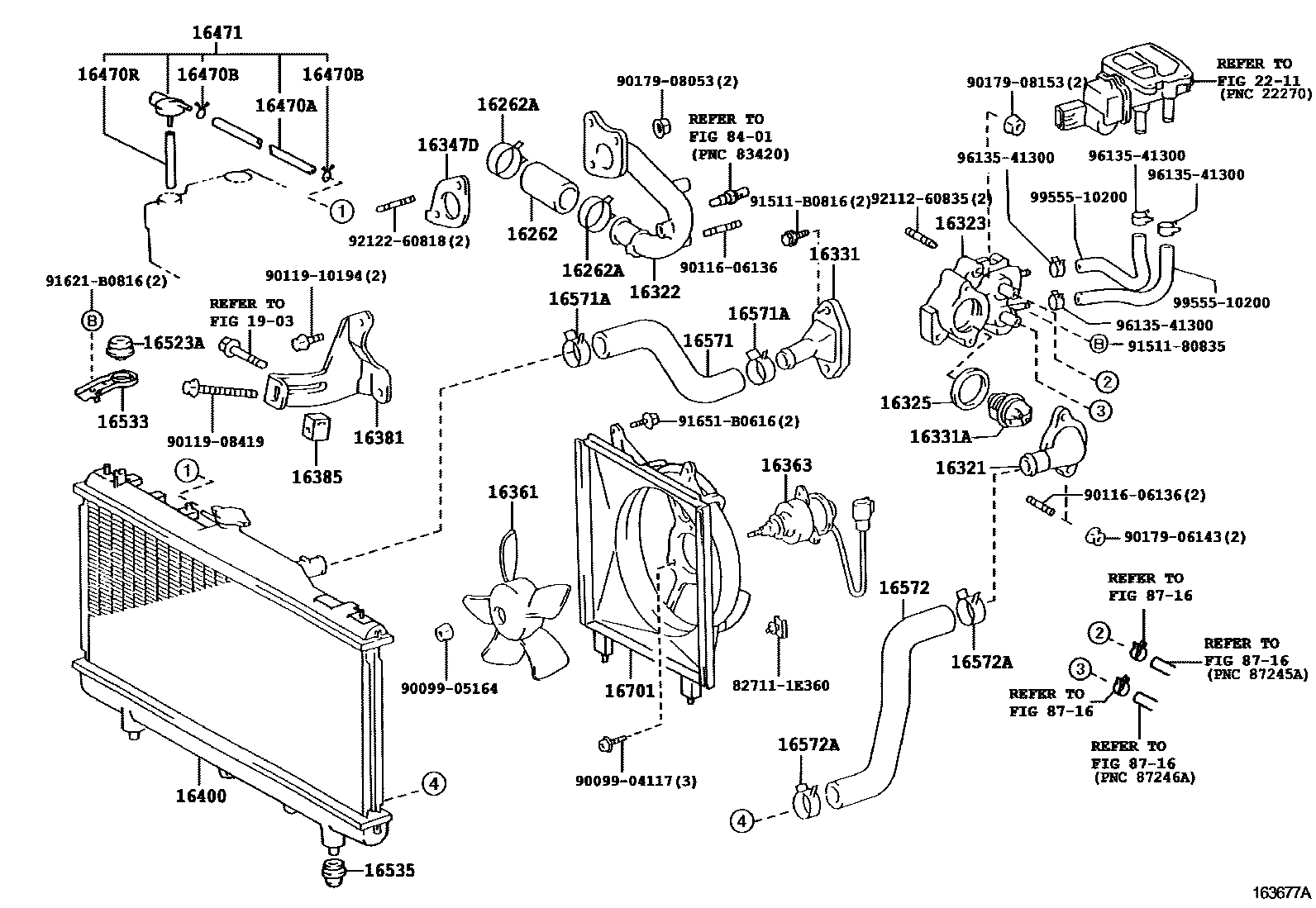

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1

16262HOSE, WATER INLET

main16262-15040i4AFE,7AFE..AT21#199601-199802

sub16262-16030

main16262-16030i4AFE,7AFE..AT21#199802

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i4AFE,7AFE..AT21#199601

sub90467-37005

16321INLET, WATER

main16321-15040i4AFE,7AFE..AT21#199601

main16321-64020i2CT,3CTE..CT21#199601

main16321-74050i3SF#..ST21#199601

16322PIPE, WATER INLET

main16322-15050i4AFE..AT210199601

main16322-16060i7AFE..AT211199601

16323HOUSING, WATER INLET

main16323-15180i4AFE,7AFE..AT21#199601

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i2CT,3CTE..CT21#199601

16331OUTLET, WATER

main16331-15080i4AFE,7AFE..AT21#199601

main16331-74210i3SFE..ST21#199601-199607

sub16331-74260

main16331-74210i3SFE..ST21#199607-199707

sub16331-74260

main16331-74220i3SFE..ST21#199607

main16331-74250i3SFSE..ST210199612-199708

main16331-74251i3SFSE..ST210199708

main16331-74260i3SFE..ST21#199707

16331ATHERMOSTAT

main90916-03046i2CT,3CTE..CT21#199601-199603

main90916-03065i4AFE,7AFE..AT21#199601-199608

sub90916-03109

main90916-03090i3SF#..ST21#199603

main90916-03109i4AFE,7AFE..AT21#199608-199803

sub90916-03115

main90916-03115i4AFE,7AFE..AT21#199803

16347DGASKET, WATER BY-PASS

main16347-15010i4AFE,7AFE..AT21#199601

16361FAN

main16361-64030i2CT..CT210..MTM199601-199712

main16361-64050i2CT..CT215;2CT..CT210..ATM199601-199712

main16361-64070i3CTE..CT21#199712

main16361-74050i4AFE..AT210;7AFE..AT211..MTM199601

main16361-74060i7AFE..AT211..ATM199601

main16361-74100i3SFE..ST215..ATM199601-199712

sub16361-74110

main16361-74110i3SFE..ST215..ATM199712

16363MOTOR, COOLING FAN

main16363-11050i7AFE..AT211..ATM199601-199708

sub16363-74260

main16363-16050i4AFE..AT210;7AFE..AT211..MTM199708

main16363-64090i2CT..CT210..MTM199601-199712

main16363-64120i2CT..CT215;2CT..CT210..ATM199601-199712

main16363-64130i3CTE..CT21#199712

main16363-74030i3SFE..ST215..ATM199601-199708

main16363-74120i4AFE..AT210;7AFE..AT211..MTM199601-199708

sub16363-16050

main16363-74260i3SF#..ST210;3SFE..ST215..MTM199708

main16363-74270i3SFE..ST215..ATM199708

16381BAR, FAN BELT ADJUSTING

main16381-15080i4AFE,7AFE..AT21#199601

main16381-64080i3CTE..CT211199601-199808

main16381-64160i3CTE..CT216199808

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i4AFE,7AFE..AT21#199601

sub16385-15030

main16385-64011i2CT,3CTE..CT21#199601

16400RADIATOR ASSY

main16400-16570i4AFE,7AFE..AT21#..MTM199601-199701

sub16400-16571

main16400-16571i4AFE,7AFE..AT21#..MTM199701-199712

sub16400-16780

main16400-16580i4AFE,7AFE..AT21#..ATM199601-199701

sub16400-16581

main16400-16581i4AFE,7AFE..AT21#..ATM199701-199712

sub16400-16800

main16400-16780i4AFE,7AFE..AT21#..MTM199712-200112

main16400-16800i4AFE,7AFE..AT21#..ATM199712-200112

main16400-64830i2CT..CT210..ATM199601-199706

sub16400-64831

main16400-64831i2CT..CT210..ATM199706-199708

sub16400-6A200

main16400-64840i2CT..CT215199601-199712

main16400-64850i2CT..CT210..MTM199601-199712

sub16400-6A210

main16400-6A200i2CT,3CTE..CT210,211,216..ATM199708

main16400-6A210i3CTE..CT211..MTM199712

main16400-7A190i3SFE..ST215..MTM199601-199701

sub16400-7A191

main16400-7A191i3SFE..ST215..MTM199701-199712

sub16400-7A580

main16400-7A200i3SFE..ST210199601-199701

sub16400-7A201

main16400-7A201i3SFE..ST210199701-199712

sub16400-7A430

main16400-7A210i3SFE..ST215..ATM199601-199701

sub16400-7A211

main16400-7A211i3SFE..ST215..ATM199701-199712

main16400-7A400i3SFSE..ST210199612-199712

sub16400-7A570

main16400-7A430i3SFE..ST215..ATM199712-200112

main16400-7A570i3SFSE..ST210199712-200112

main16400-7A580i3SFE..ST215..MTM199712-200112

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i4AFE,7AFE..AT21#199601

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2CT,3CTE..CT21#199601

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i4AFE,7AFE..AT21#199601

16471CAP SUB-ASSY, RESERVE TANK

main16405-16130i4AFE,7AFE..AT21#199601

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i3SF#..ST21#199601

16533SUPPORT, RADIATOR, UPPER

main16533-16060i4AFE,7AFE..AT21#199601

16535SUPPORT, RADIATOR, LOWER

main16535-64110i2CT..CT215;2CT..CT210..ATM199607-199708

sub16535-64120

main16535-64120i2CT,3CTE..CT211,215;2CT,3CTE..CT210,216..ATM199708

main16535-74030i3SF#..ST21#199601

main90916-04008i2CT..CT210..MTM199601-199712

main90916-04009i2CT..CT215;2CT..CT210..ATM199601-199607

16571HOSE, RADIATOR, INLET

main16571-16230i4AFE,7AFE..AT21#199601

main16571-64260i2CT,3CTE..CT21#199601

main16571-74330i3SFE..ST21#199601

main16571-74420i3SFSE..ST210199612-199708

main16571-74460i3SFSE..ST210199708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i2CT,3CTE..CT21#199601

sub90467-34004

main90467-37006i2CT,3CTE..CT21#199601

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-16190i4AFE,7AFE..AT21#199601

main16572-64270i2CT,3CTE..CT21#199601

main16572-74300i3SF#..ST21#199601

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i4AFE,7AFE..AT21#199601

sub90467-34004

main90467-37006i2CT,3CTE..CT21#199601

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-16260i4AFE..AT210;7AFE..AT211..MTM199601-199705

sub16711-16261

main16711-16261i4AFE..AT210;7AFE..AT211..MTM199705

main16711-16290i3SF#..ST210;3SFE..ST215..MTM199601-199705

sub16711-16291

main16711-16291i7AFE..AT211..ATM199705

main16711-16300i3SFE..ST215..ATM199601-199705

sub16711-16301

main16711-16301i3SFE..ST215..ATM199705

main16711-64362i2CT..CT210..MTM199601-199712

main16712-64130i2CT..CT215;2CT..CT210..ATM199601-199712

main16712-64200i3CTE..CT21#199712

1903

2211

8401

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

9011606136

main90116-06136

9011908419

main90119-08419

9011910194

main90119-10194

9017906143

main90179-06143

9017908053

main90179-08053

9017908153

main90179-08153

9151180835

main91511-80835

91511B0816

main91511-B0816

91621B0816

main91621-B0816

91651B0616

main91651-B0616

9211260835

main92112-60835

9212260818

main92122-60818

9613541300

main96135-41300

9955510200

main99555-10200

47 parts on this diagram · 9 diagrams in section
