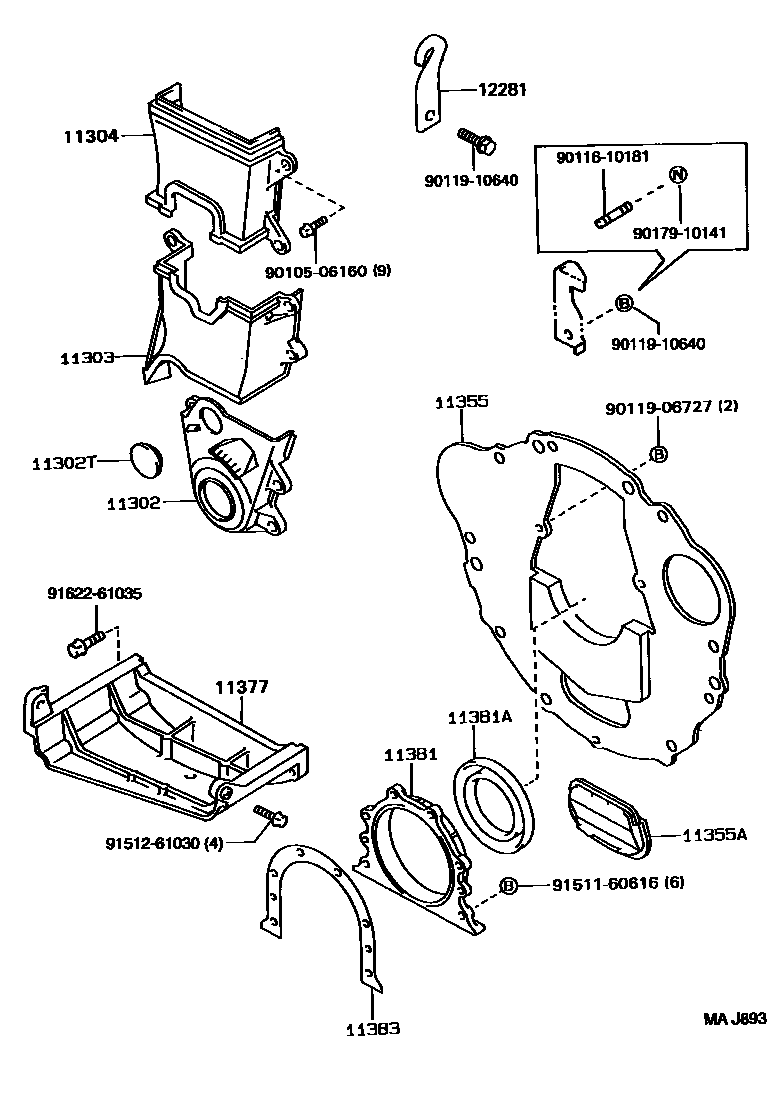

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-16040i4AFE,7AFE..AT21#199601

main11302-74040i3SF#..ST21#199601

11302TPLUG, HOLE

main90950-01783i4AFE,7AFE..AT21#199601

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-16060i4AFE..AT210199601

main11303-16070i7AFE..AT211199601

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74050i3SFE..ST21#199601

main11303-74060i3SFSE..ST210199612

main11304-16100i4AFE..AT210199601

main11304-16110i7AFE..AT211199601

11355PLATE, REAR END

main11355-15070i4AFE,7AFE..AT21#..MTM199601

main11355-15080i4AFE,7AFE..AT21#..ATM199601

main11355-64051i2CT,3CTE..CT210,211,215..MTM199601-200003

sub11355-64052

main11355-64052i3CTE..CT211..MTM200003

main11355-64061i2CT..CT210..ATM199601-199712

sub11355-64062

main11355-64110i3CTE..CT21#..ATM199712

main11355-74010i3SF#..ST210199601

main11355-74040i3SFE..ST215199601

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE,7AFE..AT21#..ATM199601

main90950-01738i2CT..CT210..ATM199601-199712

main90950-01918i3CTE..CT21#..ATM199712

11377STIFFENER, REAR END PLATE

main11377-15012i4AFE..AT210199601

main11377-74030i3SFE..ST210199601-199712

main11377-74050i3SFSE..ST210199612

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AFE,7AFE..AT21#199601

main11381-63012i3SF#..ST21#199601

main11381-64012i2CT,3CTE..CT21#199601-199812

sub11381-64020

main11381-64020i3CTE..CT21#199812

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AFE,7AFE..AT21#199601

main90311-85006i3SFE..ST21#199601-199801

sub90311-85009

main90311-85008i3SFSE..ST210199612

main90311-85009i3SFE..ST215199801

main90311-90008i2CT,3CTE..CT21#199601

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4AFE,7AFE..AT21#199601

main11383-74021i3SF#..ST21#199601

12281HANGER, ENGINE, NO.1

main12281-15050i4AFE,7AFE..AT21#199601

9010506160

main90105-06160

9011610181

main90116-10181

9011906727

main90119-06727

9011910640

main90119-10640

9017910141

main90179-10141

9151160616

main91511-60616

9151261030

main91512-61030

9162261035

main91622-61035

19 parts on this diagram · 4 diagrams in section
