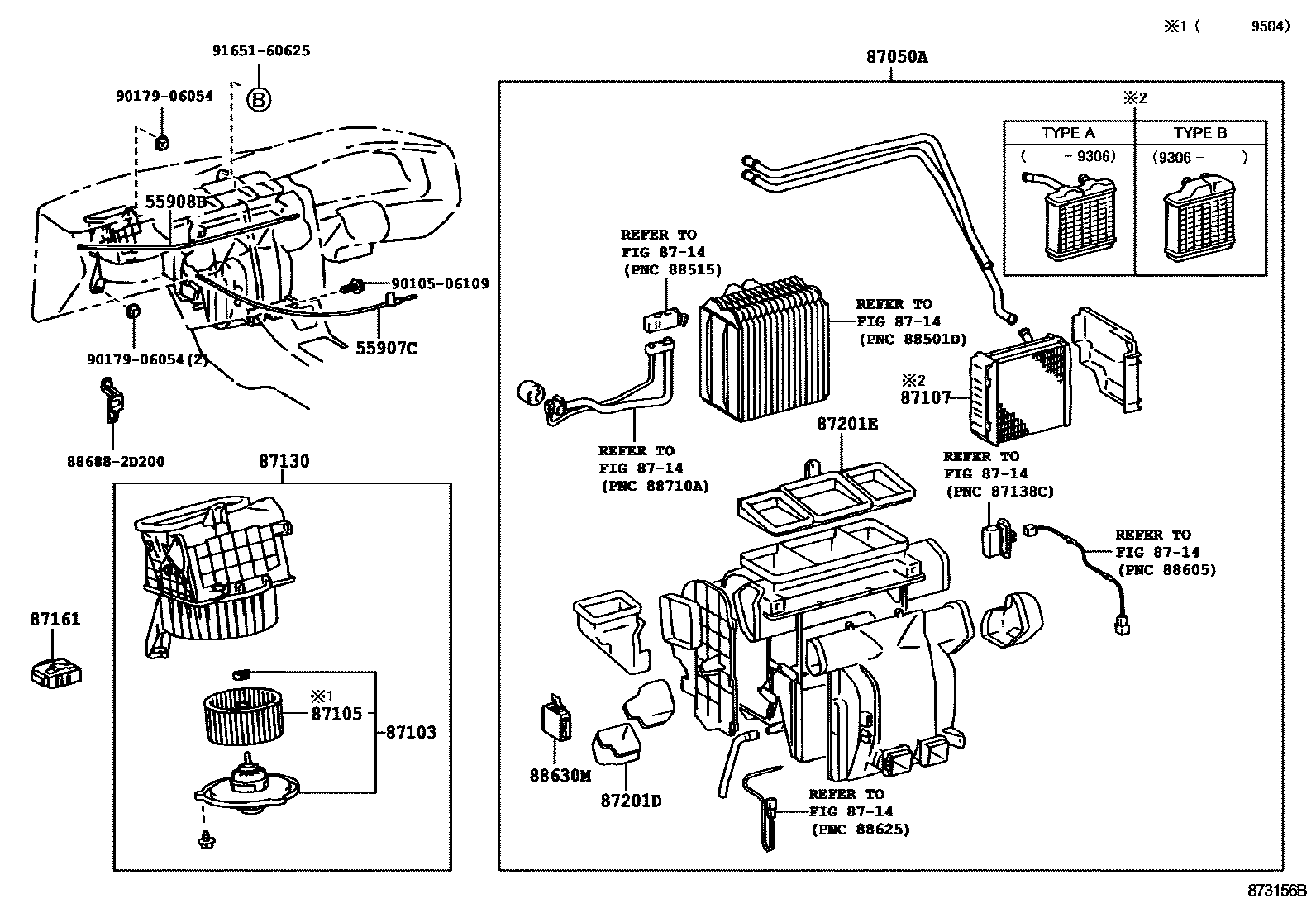

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1���- �� �-� ����-� �� 0002 1����� �� �-� ����-� ��

55907CCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20300iAT190,CT190,ST190,195..GX,KYO199202-199601

main55907-20330iAT190,CT190,ST190,195..GX199202-199301

main55907-20330iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

55908BCABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20170iAT190,CT190,ST190,195..GX,KYO199202-199601

87050ARADIATOR ASSY, AIR CONDITIONER

main87050-20030iAT190,CT190,ST190,195..GX,KYO199202-199306

main87050-20040iAT190,CT190,ST190,195..GX,KYO199202-199601

main87050-20050iAT190,CT190,ST190,195..GX,KYO199202-199601

main87050-20060iAT190,CT190,ST190,195..GX,KYO199202-199601

main87050-20090iAT190,CT190,ST190,195..GX199202-199301

main87050-20090iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

main87050-20100iAT190,CT190,ST190,195..GX199202-199301

main87050-20100iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

main87050-20110iAT190,CT19#,ST190,195..SELS199202-199601

main87050-20120iAT190,CT19#,ST190,195..SELS199202-199601

main87050-20270iAT190,CT190,ST190,195..GX,KYO199306-199601

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20080iAT190,CT19#,ST19#199202-199504

main87103-22100iAT190,CT19#,ST19#199504-199601

87105FAN SUB-ASSY, HEATER BLOWER

main87105-33010iAT190,CT19#,ST19#199202-199504

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-20560iAT190,CT19#,ST19#199202-199306

main87107-20570iAT190,CT19#,ST19#199202-199601

main87107-20600iAT190,CT19#,ST19#199306-199601

87130BLOWER ASSY, HEATER, FRONT

main87130-20500iAT190,CT190,ST190,195..GX,KYO199202-199601

main87130-20510iAT190,CT190,ST190,195..GX199202-199301

main87130-20510iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199402

main87130-20511iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199402-199601

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87161AMPLIFIER, HEATER SERVO MOTOR

main87161-20050iAT190,CT19#,ST190,195..SELS199202-199402

main87161-20051iAT190,CT19#,ST190,195..SELS199402-199601

87201DDUCT SUB-ASSY, AIR

main87201-20290iAT190,CT19#,ST19#199202-199601

87201EDUCT SUB-ASSY, AIR, NO.2

main87201-20390iAT190,CT19#,ST19#199501-199601

88630MRELAY ASSY, COOLER

main88630-20260iAT190,CT19#,ST190,195..SELS199202-199601

886882D200BRACKET, COOLER DIAPHRAGM

main88688-2D200

9010506109

main90105-06109

9017906054

main90179-06054

9165160625

main91651-60625

16 parts on this diagram · 2 diagrams in section
