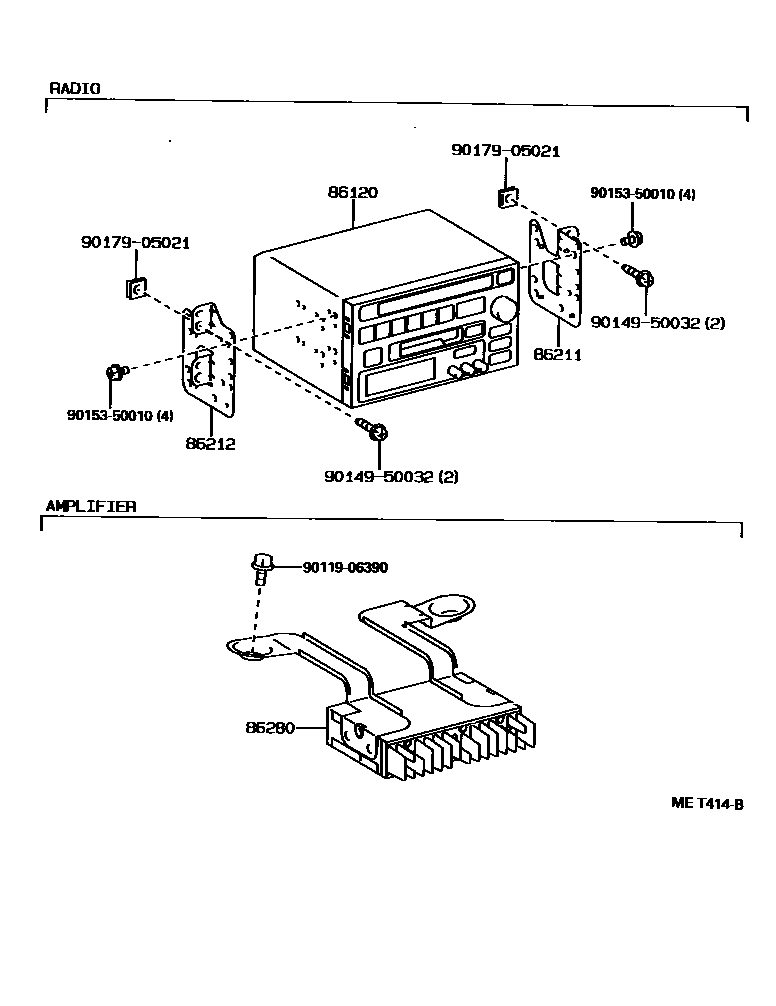

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1������-�� & ��������� 0002 1������

86120RECEIVER ASSY, RADIO

main86120-20890iAT190,CT19#,ST19#..EXG,EXS,TYPE2; AT190,CT19#,ST190,195..GX,SELS,TYPE1199202-199402

main86120-2A160iAT190,CT19#,ST190,195..GX,SELS,TYPE1199202-199601

main86120-2B050iAT190,CT19#,ST19#..EXG,EXS,TYPE2199202-199402

main86120-2B330iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main86120-2B480iAT190,CT19#,ST19#..EXG,EXS,TYPE2; AT190,CT19#,ST190,195..GX,SELS,TYPE1199402-199601

main86120-2B500iST190,191..EXG,TYPE2199402-199601

main86120-35060iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main86120-35120iAT190,CT19#,ST19#..EXS,TYPE1199402-199601

main86120-37010iCT190,ST190..KYO199211-199601

86211BRACKET, RADIO, NO.1

main86211-20310iAT190,CT19#,ST19#199202-199601

86212BRACKET, RADIO, NO.2

main86212-20300iAT190,CT19#,ST19#199202-199601

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-20310iAT190,CT19#,ST19#..EXG,EXS,TYPE2; ST190..TYPE1199202-199402

main86280-20320iST190,191..EXG199402-199601

main86280-20340iST190,191..LB199202-199402

9011906390

main90119-06390

9014950032

main90149-50032

9015350010

main90153-50010

9017905021

main90179-05021

8 parts on this diagram · 2 diagrams in section
