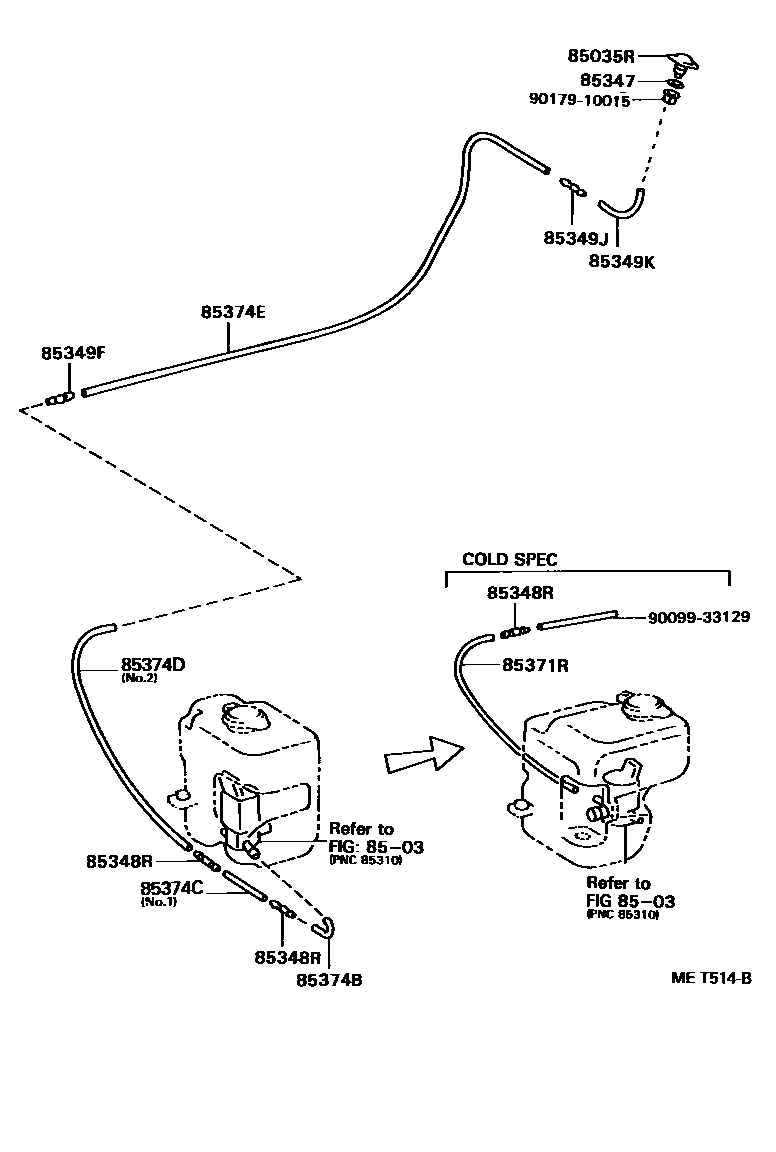

REAR WASHER

0001 1 0002 1 0003 1

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-12370iAT190,CT19#,ST19#..EXG,EXS,KYO,SELS199402-199601

main85391-20010iAT190,CT19#,ST19#..EXS; CT190,ST190,191..EXG,KYO199202-199402

main85391-20020iST190,191..LB199202-199601

85347PACKING, REAR WASHER

main85347-12010iAT190,CT19#,ST19#..EXS; CT190,ST190,191..EXG,KYO199202-199402

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iAT190,CT190,ST19#..EXS; CT190,ST190,191..EXG,KYO,TYPE1,TYPE2; ST190..TYPE1199202-199402

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAT190,CT19#,ST19#..EXS; ST190,191..EXG199202-199402

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-89122iAT190,CT19#,ST19#..EXS; ST190,191..EXG199202-199402

main85355-20200iST190,191..LB199202-199601

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-14481iAT190,CT19#,ST19#..EXS; CT190,ST190,191..EXG,KYO199202-199402

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iCT195..EXS199208-199402

85374BHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.1)

main85317-28040iAT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main90446-07001iST190,191..LB199504-199601

85374CHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.2)

main90099-33080iAT190,CT190,ST19#..EXS,TYPE1; ST190,191..EXG,TYPE2199202-199402

main90446-07001iAT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

85374DHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.3)

main90099-33080iAT190,CT190,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199402-199601

main90446-07001iST190,191..LB199202-199504

85374EHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.4)

main90099-33420iST190,191..LB199402-199504

main90099-33630iST190,191..LB199504-199601

9009933129

main90099-33129

9017910015

main90179-10015

14 parts on this diagram · 3 diagrams in section
