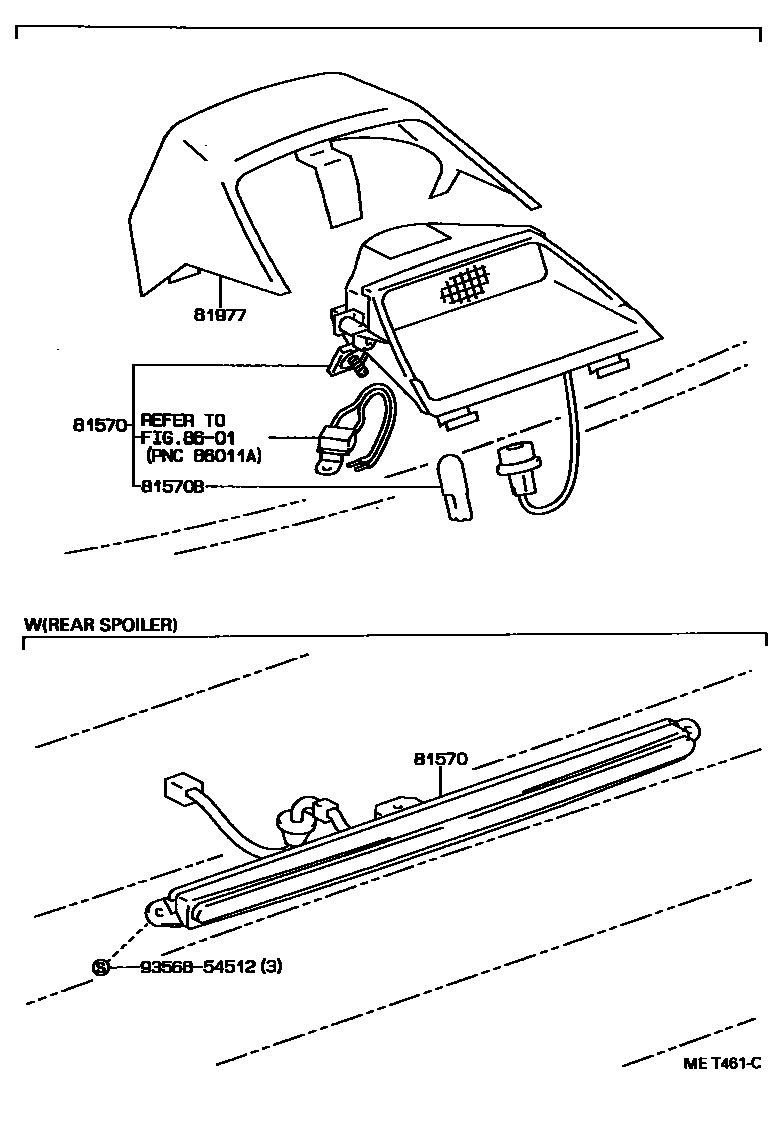

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-20160-C0iAT190,CT190,ST19#..SED199202-199204

BLACK,TRIM2#

main81570-20160-E0iAT190,CT190,ST19#..SED199202-199204

ANTELOPE,TRIM4#

main81570-20161-C0iAT190,CT19#,ST19#..SED199204-199210

BLACK,TRIM2#

main81570-20161-E0iAT190,CT19#,ST19#..EXS; ST190,191..EXG199210-199211

main81570-20162-C0iAT190,CT19#,ST19#..SED199402-199601

BLACK,TRIM1#,4#

main81570-20180iST190,191..EXG199202-199412

main81570-20181iST190,191..EXG199412-199601

main81570-20200iST190,191..LB199202-199601

main81570-20210iST190,191..LB199210-199402

main81570-20211iST190,191..LB199412-199601

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iAT190,CT19#,ST19#..SED199202-199601

main99132-11210iST190,191..LB199202-199601

81977COVER, CENTER STOP LAMP

main81977-20110-B0iAT190,CT19#,ST19#..SED199402-199601

SHADOW GRAY,TRIM1#

main81977-20110-C0iAT190,CT19#,ST19#..SED199211-199402

BLACK,TRIM2#

main81977-20110-E0iAT190,CT19#,ST19#..SED199209-199210

ANTELOPE,TRIM4#

main81977-20120-B0iST190,191..LB199402-199601

SHADOW GRAY,TRIM1#

main81977-20120-C0iST190,191..LB199202-199402

BLACK,TRIM2#

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9356854512

main93568-54512

5 parts on this diagram · 2 diagrams in section
