Toyota CORONA — HEADLAMP

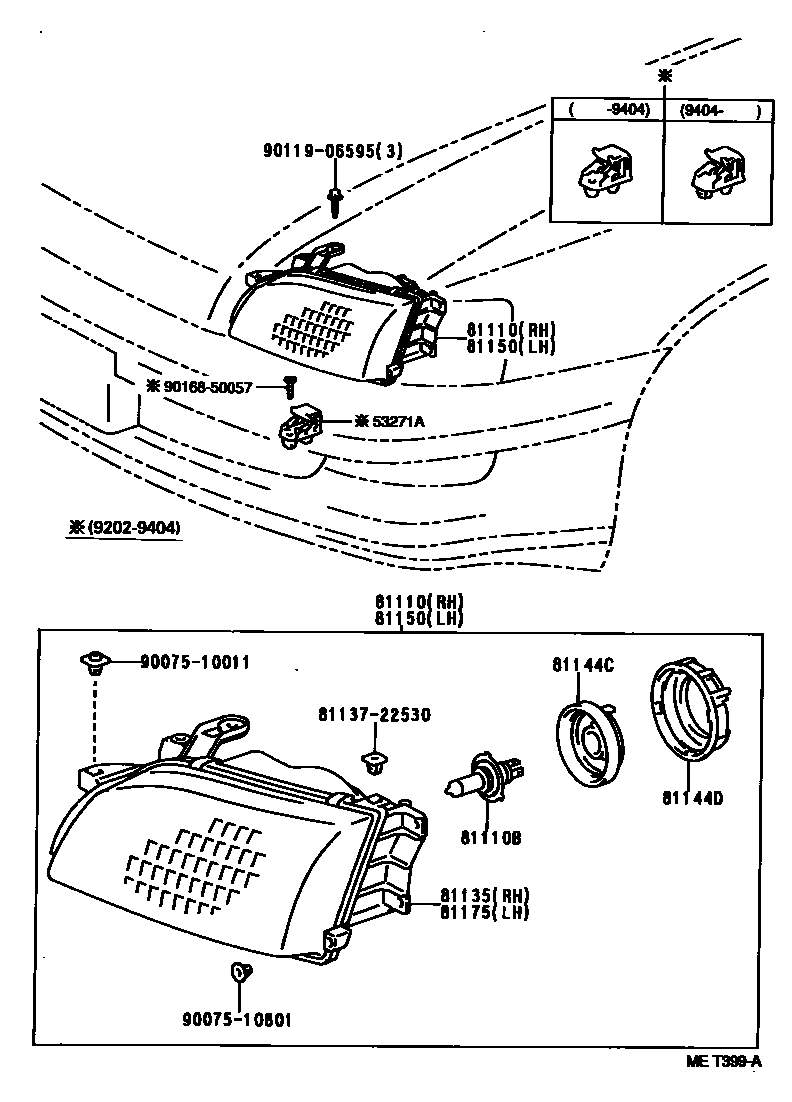

Parts diagram
53271ABRACKET, HEADLAMP MOUNTING
81110HEADLAMP ASSY, RH
90981-22004
90981-13015
81110-2B640
81110BBULB(FOR HEADLAMP, NO.1)
81135UNIT ASSY, HEADLAMP, RH
81130-2B640
81144CCOVER, HEADLAMP SOCKET
81144DCAP, HEADLAMP LOCKING
81150HEADLAMP ASSY, LH
81150-2B600
81175UNIT ASSY, HEADLAMP, LH
81170-2B600
8113722530PROTECTOR, HEADLAMP, NO.2 RH
81137-22530
9007510011
90075-10011
9007510801
90075-10801
9011906595
90119-06595
9016850057
90168-50057

13 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota CORONA

This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota CORONA. Key components include: BRACKET, HEADLAMP MOUNTING, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
