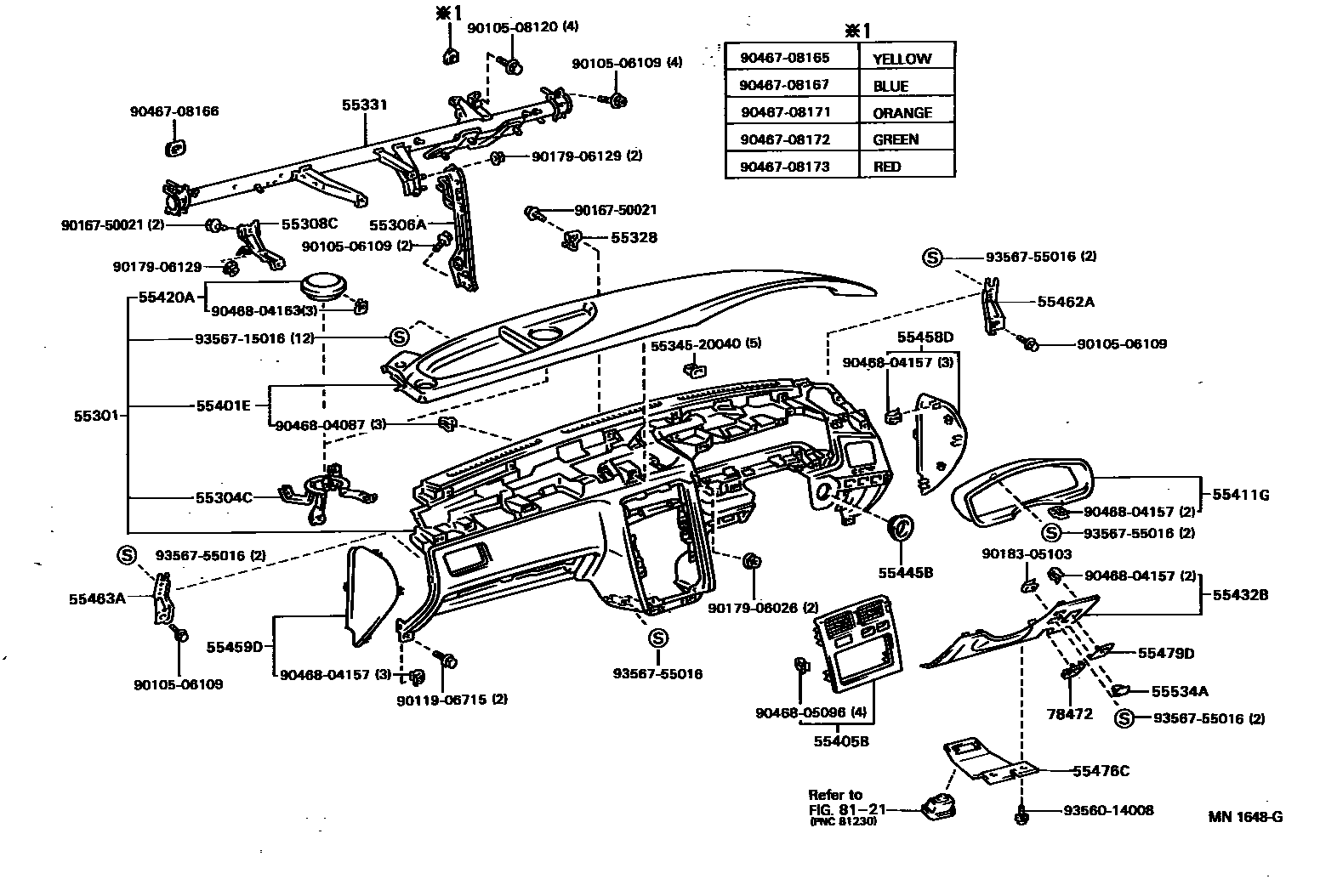

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-20030-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main55300-20030-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

main55300-20030-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

main55300-20070-B0iST190,191..EXG,TYPE2199402-199601

main55300-20070-C0iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main55300-20070-E0iAT190,CT19#,ST19#..EXG,EXS199202-199402

55304CBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING

main55304-20050iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20200iAT190,CT19#,ST19#199202-199601

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20180iAT190,CT19#,ST19#199202-199601

55328PIN, INSTRUMENT PANEL, NO.1

main55328-20070×3iAT190,CT19#,ST19#199202-199601

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20150iAT190,CT19#,ST19#199202-199601

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20610-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main55401-20610-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

main55401-20610-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

main55401-20650-B0iST190,191..EXG,TYPE2199402-199601

main55401-20650-C0iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main55401-20650-E0iST190,191..EXG199402-199601

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20130iAT190,CT19#,ST19#199202-199601

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-20630iAT190,CT19#,ST19#199202-199601

55420APANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55420-20010-B0iST190,191..EXG,TYPE2199402-199601

SHADOW GRAY,TRIM1#

main55420-20010-C0iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

BLACK,TRIM2#

main55420-20010-E0iAT190,CT19#,ST19#..EXG,EXS199202-199402

ANTELOPE,TRIM4#

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20260-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

main55432-20260-C0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199402

BLACK,TRIM2#

main55432-20260-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199601

ANTELOPE,TRIM4#

main55432-20270-B0iCT19#..MTM..(EXS,GX,SELS)199402-199601

main55432-20270-C0iCT19#..MTM..(EXS,GX,SELS)199202-199402

main55432-20270-E0iCT19#..MTM..(EXS,GX,SELS)199202-199601

main55432-20310-B0iCT190,ST190..KYO199402-199601

SHADOW GRAY,TRIM1#

main55432-20310-C0iCT190,ST190..KYO199211-199402

BLACK,TRIM2#

main55432-20310-E0iCT190,ST190..KYO199211-199601

ANTELOPE,TRIM4#

main55432-20320-B0iCT190..MTM..KYO199402-199601

main55432-20320-C0iCT190..MTM..KYO199211-199402

main55432-20320-E0iCT190..MTM..KYO199211-199601

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20200iAT190,CT19#,ST19#199202-199601

55458DCOVER, INSTRUMENT LOWER, RH

main55458-20040-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main55458-20040-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

main55458-20040-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-20040-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main55459-20040-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

main55459-20040-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH

main55462-20200iAT190,CT19#,ST19#199202-199601

55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH

main55463-20130iAT190,CT19#,ST19#199202-199601

55476CGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-20110iCT190,ST190..KYO199211-199601

55479DGARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER

main55479-20080-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main55479-20080-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

main55479-20080-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

55534ACOVER, ILLUMINATION LAMP HOLE

main55534-20060-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main55534-20060-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

main55534-20060-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-20010-B0iCT19#..MTM199402-199601

main78472-20010-C0iCT19#..MTM199202-199402

main78472-20010-E0iCT19#..MTM199202-199601

8121INTERIOR LAMP

→ Go to FIG 81-21

5534520040GARNISH, GLOVE COMPARTMENT, UPPER

main55345-20040

9010506109

main90105-06109

9010508120

main90105-08120

9011906715

main90119-06715

9016750021

main90167-50021

9017906026

main90179-06026

9017906129

main90179-06129

9018305103

main90183-05103

9046708165

main90467-08165

9046708166

main90467-08166

9046708167

main90467-08167

9046708171

main90467-08171

9046708172

main90467-08172

9046708173

main90467-08173

9046804087

main90468-04087

9046804157

main90468-04157

9046804163

main90468-04163

9046805096

main90468-05096

9356014008

main93560-14008

9356715016

main93567-15016

9356755016

main93567-55016

42 parts on this diagram · 2 diagrams in section
