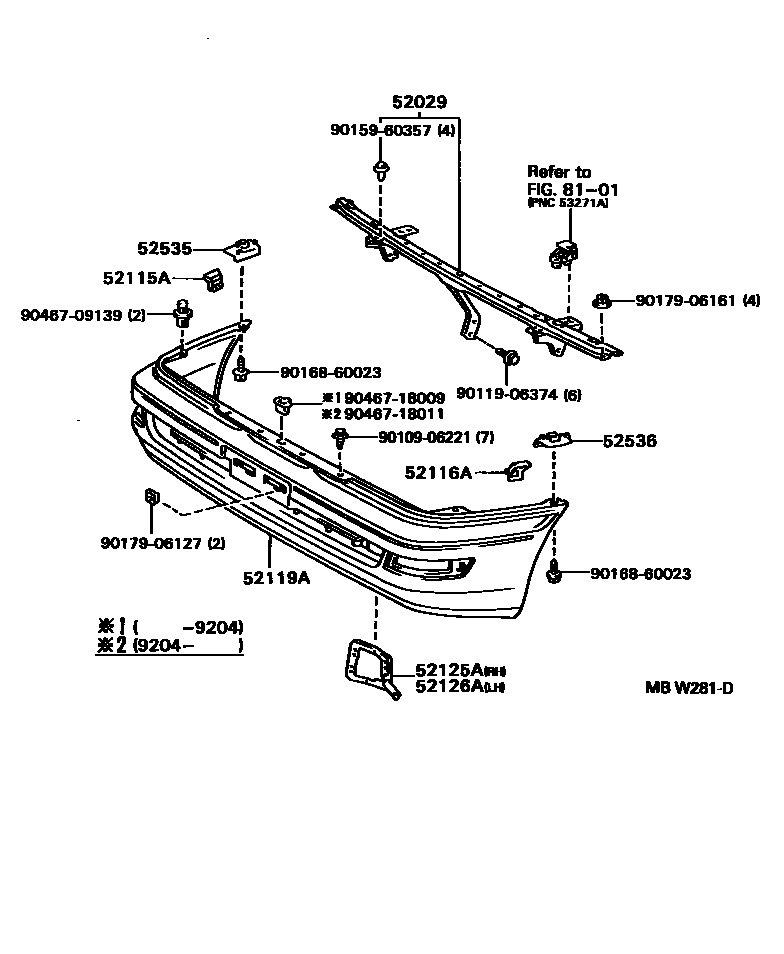

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-20030iAT190,CT19#,ST19#199202-199601

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20300iAT190,CT19#,ST19#199202-199601

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20210iAT190,CT19#,ST19#199202-199601

52119ACOVER, FRONT BUMPER

main52119-2B020-A0iAT190,CT19#,ST19#199202-199402

SUPER WHITE 2,040

main52119-2B020-A1iCT190..ATM..(EXS,SELS);AT190,ST19#..EXG,EXS,SELS199203-199402

WARM GRAY PEARL MICA,046

main52119-2B020-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199402

DARK BLUEISH GRAY ME,183

main52119-2B020-C0iST19#..EXS199309-199312

main52119-2B020-D1iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199402

DARK WINE MICA M,3K1

main52119-2B020-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199402

DK.GRAYISH BROWN ME,4H7

main52119-2B020-E1iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199402

LIGHT BEIGE ME,4M3

main52119-2B020-G0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199402

DK.GRAYISH OLIVE ME,6M7

main52119-2B020-H0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199402

DARK TORQUOISE MICA,742

main52119-2B260-A0iAT190,CT19#,ST19#199402-199601

SUPER WHITE 2,040

main52119-2B260-A1iAT190,ST19#..EXG,EXS,SELS199402-199601

WARM GRAY PM,046

main52119-2B260-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

LT.GRAIGE ME,1A2

main52119-2B260-B1iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

DK.BL.GRAY ME,183

main52119-2B260-C0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

BLACK ME,205

main52119-2B260-D1iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

MAGENTA MC,3L3

main52119-2B260-G0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

DK.GRAYISH OLIVE ME,6M7

main52119-2B260-H0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

DK.TURQUOISE MC,742

main52119-2B900iCT190,ST190..KYO199211-199402

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-20090iAT190,CT19#,ST19#199202-199402

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-20060iAT190,CT19#,ST19#199202-199402

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-20050iAT190,CT19#,ST19#199202-199601

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-20050iAT190,CT19#,ST19#199202-199601

8101HEADLAMP

→ Go to FIG 81-01

9010906221

main90109-06221

9011906374

main90119-06374

9015960357

main90159-60357

9016860023

main90168-60023

9017906127

main90179-06127

9017906161

main90179-06161

9046709139

main90467-09139

9046718009

main90467-18009

9046718011

main90467-18011

18 parts on this diagram · 2 diagrams in section
