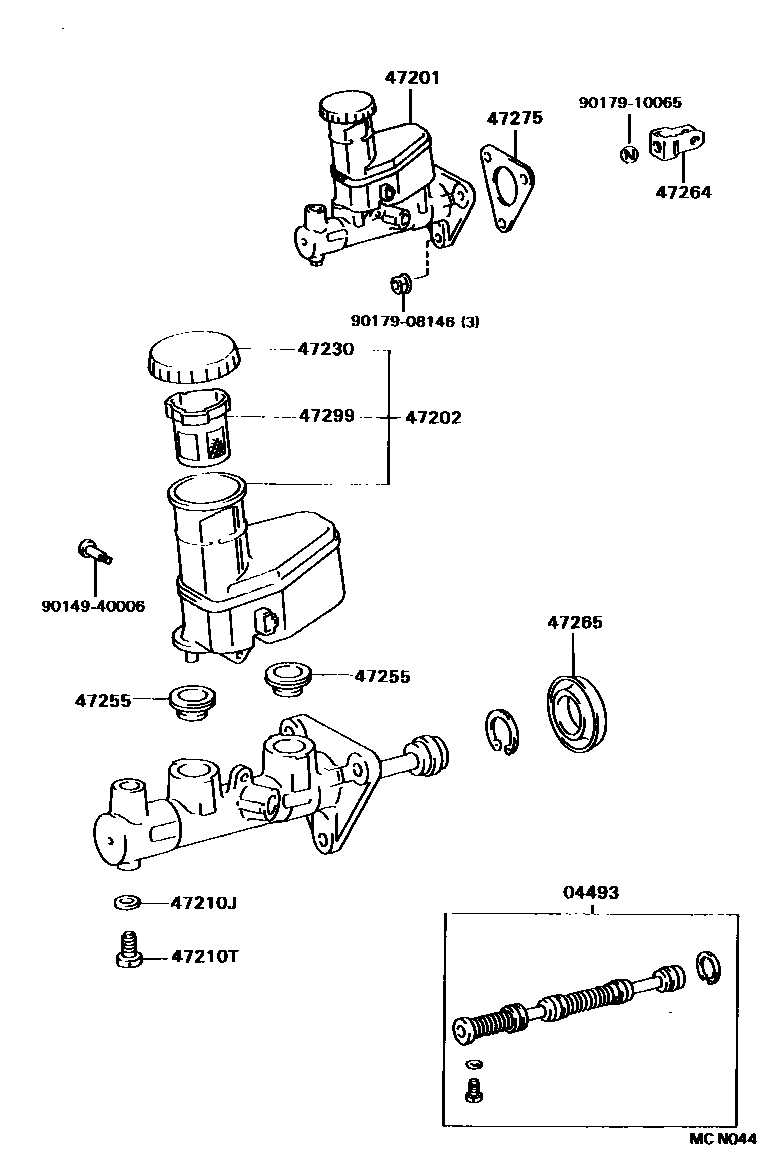

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-20210iCT190,ST190..KYO199202-199406

sub04493-16110

main04493-20250iCT190,ST190..KYO199211-199601

*42

main04493-33040iAT190,CT19#,ST19#..EXS,GX,SELS,TYPE1199202-199601

sub04493-20310

main04493-42020iAT190,CT19#,ST19#..EXS,GX,SELS,TYPE1199202-199601

main04493-42020iCT190,ST190..KYO199406-199601

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-20810iAT190,CT190,ST190,191..EXS,GX,SELS,TYPE1199202-199601

main47201-20810iCT190,ST190..KYO199202-199601

main47201-20820iCT195,ST195199202-199402

main47201-20840iST190,191..EXG,TYPE2199202-199601

main47201-2B030iCT190,ST190..KYO199211-199601

*42

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20400iCT190,ST190..KYO199202-199402

sub47220-20170

main47202-20410iCT195,ST195;ST190,191..EXG,TYPE2199202-199402

sub47220-20180

main47202-20430iCT190,ST190..KYO199211-199601

*42

main47220-20170iCT190,ST190..KYO199402-199601

main47220-20180iAT190,CT19#,ST19#..EXS,GX,SELS,TYPE1199402-199601

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT190,CT19#,ST19#199202-199601

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAT190,CT19#,ST19#199202-199601

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iCT190,ST190..KYO199202-199601

main84460-20150iCT190,ST190..KYO199211-199601

*42

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAT190,CT19#,ST19#199202-199601

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCT190,ST190..KYO199211-199601

*42

main47264-20060iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199601

47265BOOT, MASTER CYLINDER

main47265-20050iAT190,CT19#,ST19#199202-199601

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iAT190,CT19#,ST19#199202-199601

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20020iCT190,ST190..KYO199211-199601

*42

main47299-24010iCT190,ST190..KYO199202-199601

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
