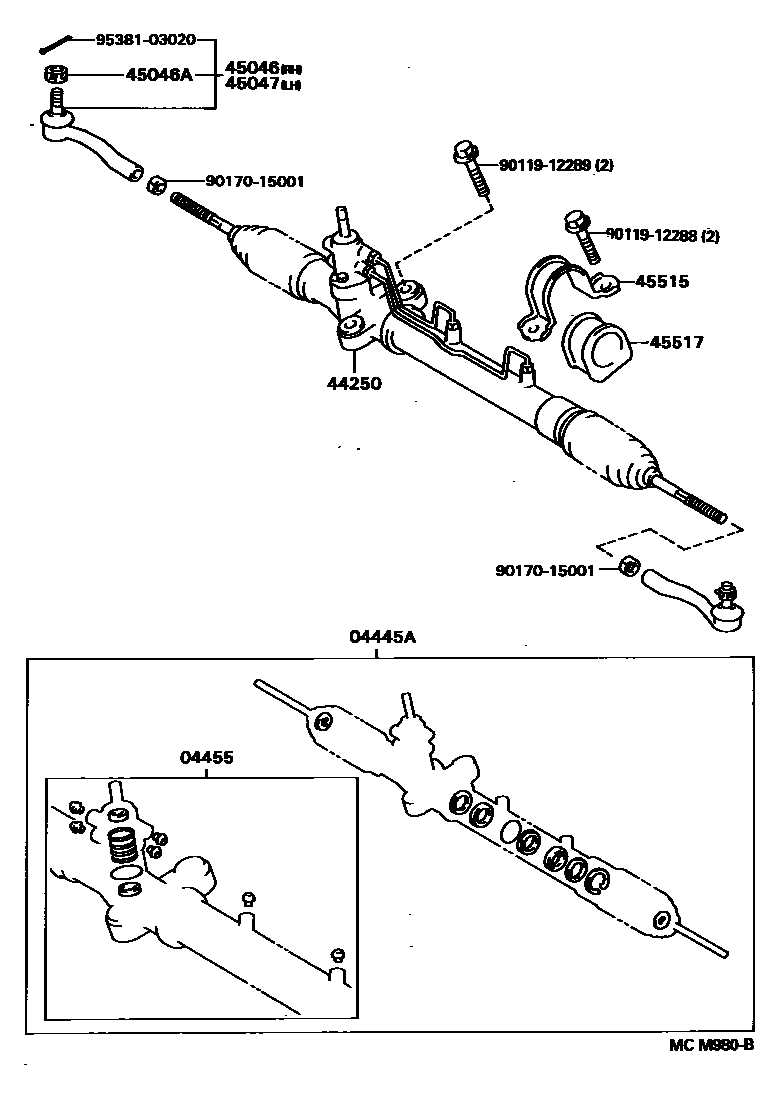

FRONT STEERING GEAR & LINK

0001 1 0002 1TOYOTA 0003 1KOKI 0004 1 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20140iCT190..GX199202-199405

main04445-20150iAT190;ST190..GX199202-199207

main04445-20160iST195;CT19#,ST190,191..EXG,EXS,KYO,SELS,TYPE1,TYPE2199202-199411

main04445-20161iST195;CT19#,ST190,191..EXG,EXS,KYO,SELS,TYPE1,TYPE2199411-199601

main04445-20170iAT190;ST190..GX199207-199601

main04445-20200iCT190..GX199405-199601

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20120iCT19#,ST191,195;ST190..EXG,EXS,KYO,SELS,TYPE1199202-199601

main04455-20130iAT190;ST190..GX199202-199601

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20510iST190..GX;AT190..GX,SELS199202-199207

main44250-20520iAT190..ATM..EXS199202-199207

main44250-20550iCT190..GX199202-199601

main44250-20560iST190..GX;AT190..GX,SELS199207-199601

main44250-20570iCT190,ST190,191..EXG,EXS,KYO,SELS,TYPE1,TYPE2199202-199601

main44250-20590iCT195,ST195199202-199601

main44250-20600iAT190..ATM..EXS199207-199402

main44250-20610iAT190..EXS199512-199601

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCT195,ST195199202-199601

main45046-29275iAT190..ATM;CT190,ST190,191;AT190..MTM..(GX,SELS)199202-199402

main45046-29335iAT190,CT190,ST190,191199511-199601

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAT190,CT19#,ST19#199202-199601

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCT195,ST195199202-199601

main45047-29075iAT190..ATM;CT190,ST190,191;AT190..MTM..(GX,SELS)199202-199402

main45047-29105iAT190,CT190,ST190,191199511-199601

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iCT190199202-199601

main45515-20160iAT190,ST190,191199202-199601

main45515-20180iCT195,ST195199202-199601

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20130iCT195,ST195199202-199601

main45517-20140iCT190..GX199202-199601

main45517-20150iCT190,ST190,191..EXG,EXS,KYO,SELS,TYPE1,TYPE2199202-199601

main45517-20160iST190..GX;AT190..ATM;AT190..MTM..(GX,SELS)199202-199207

main45517-20190iAT190;ST190..GX199402-199601

9011912288

main90119-12288

9011912289

main90119-12289

9017015001

main90170-15001

9538103020

main95381-03020

12 parts on this diagram · 5 diagrams in section
