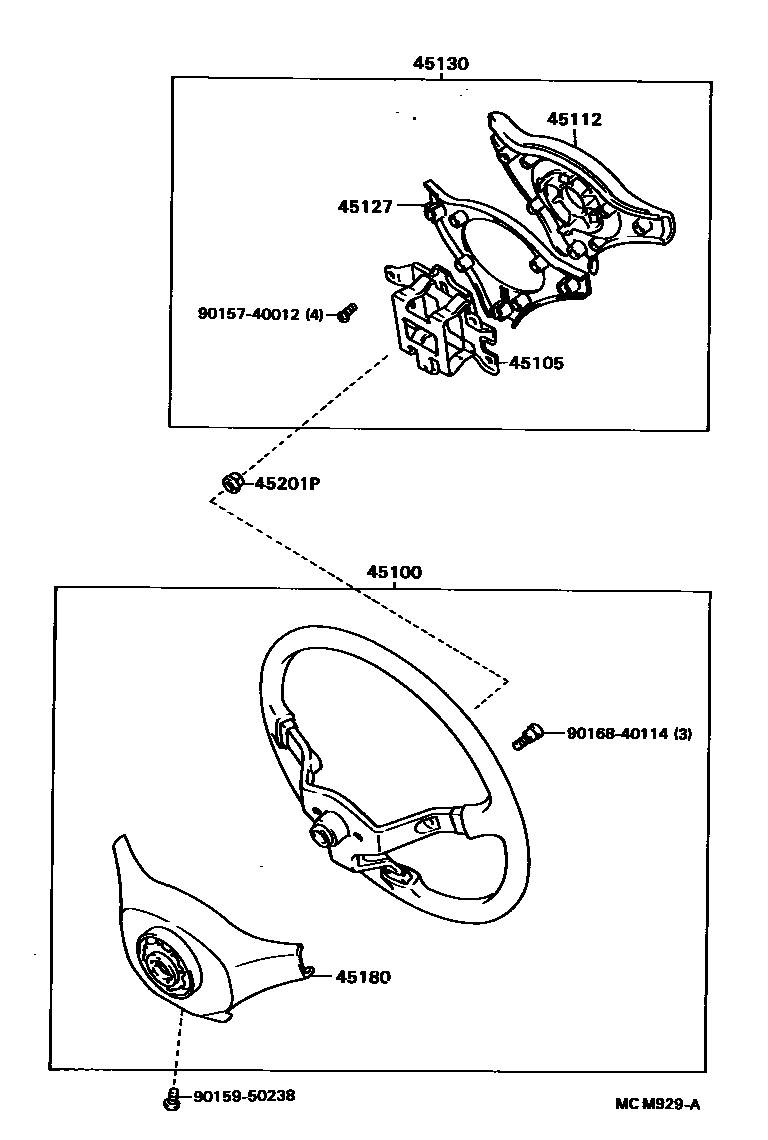

STEERING WHEEL

0001 13-SPOKE 0002 14-SPOKE,���� 0003 14-SPOKE,���� 0004 1SRS �������

45100WHEEL ASSY, STEERING

main45100-2B080-C0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199601

main45100-2B080-E1iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199601

main45100-2B180-C0iAT190,CT19#,ST19#..EXS,GX,SELS; CT190,ST190..KYO199202-199402

main45100-2B180-E0iAT190,CT19#,ST19#..EXS,GX,SELS199202-199402

main45100-2B190-C0iST19#..EXS199305-199307

main45100-2B200-C0iST190,191..EXG,TYPE1,TYPE2199202-199402

main45100-2B200-E0iST190,191..EXG199202-199601

main45100-2B210-C0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199309

main45100-2B210-E0iAT190,CT190,ST19#..SED199202-199208

main45100-2B211-C0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199309-199312

main45100-2B211-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199309-199312

main45100-2B212-C0iST190,191..EXG,TYPE1,TYPE2199402-199412

main45100-2B212-E0iST190,191..EXG199402-199412

main45100-2B230-C0iCT190,ST190..KYO199211-199309

main45100-2B231-C0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199412

main45100-2B231-E1iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199412

main45100-2B440-C0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199412-199601

main45100-2B440-E0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199412-199601

main45100-2B450-C0iST190,191..EXG,TYPE1,TYPE2199412-199601

main45100-2B450-E0iST190,191..EXG199412-199601

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20380iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199601

main45105-20410iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199202-199402

main45105-20420iST19#..EXS199309-199312

45112PAD, STEERING WHEEL

main45112-20630-C0iAT190,CT19#,ST19#..EXS,GX,SELS; CT190,ST190..KYO199202-199402

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45112-20630-E0iAT190,CT19#,ST19#..EXS,GX,SELS199202-199402

ANTELOPE,TRIM4#

main45112-20640-C0iST19#..EXS199305-199307

main45112-20640-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

45127INSERT, HORN BUTTON, UPPER NO.1

main45127-20010iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199202-199402

main45127-20020iST190,191..EXG,TYPE1,TYPE2199202-199601

45130BUTTON ASSY, HORN

main45130-2B170-C0iCT190,ST190..KYO199211-199309

main45130-2B170-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199309

main45130-2B171-C0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2; CT190,ST190..KYO199309-199402

main45130-2B171-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199309-199402

main45130-2B190-C0iAT190,CT19#,ST19#..EXS,GX,SELS; CT190,ST190..KYO199202-199402

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45130-2B190-E0iAT190,CT19#,ST19#..EXS,GX,SELS199202-199402

ANTELOPE,TRIM4#

main45130-2B200-C0iST190,191..EXG,TYPE1,TYPE2199402-199601

BLACK,TRIM1#

main45130-2B200-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

main45130-2B310-C0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199601

BLACK,TRIM1#

main45130-2B310-E0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199601

ANTELOPE,TRIM4#

main45130-2B321-C0iAT190,CT19#,ST19#199402-199412

main45130-2B321-E3iAT190,CT19#,ST19#..SED199402-199412

main45130-2B350-C0iAT190,CT190,ST190,195..SELS199508

BLACK

main45130-2B350-E0iAT190,CT19#,ST19#..SED199412-199510

main45130-2B351-C0iAT190,CT19#,ST19#199510-199601

main45130-2B351-E0iAT190,CT19#,ST19#..SED199510-199601

main45130-32370-B0iAT190,CT190,ST190,195..SELS199508-199601

45180COVER SUB-ASSY, STEERING WHEEL

main45180-20120-B0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199601

SHADOW GRAY,TRIM1#

main45180-20120-E1iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199402-199601

ANTELOPE,TRIM4#

main45180-20200-C0iAT190,CT19#,ST19#..EXS,GX,SELS; CT190,ST190..KYO199202-199402

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45180-20200-E0iAT190,CT19#,ST19#..EXS,GX,SELS199202-199402

ANTELOPE,TRIM4#

main45180-20210-C0iST19#..EXS199309-199312

main45180-20210-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12071iAT190,CT19#,ST19#199306-199402

main90179-12086iAT190,CT19#,ST19#199402-199406

9015740012

main90157-40012

9015950238

main90159-50238

9016840114

main90168-40114

10 parts on this diagram · 4 diagrams in section
