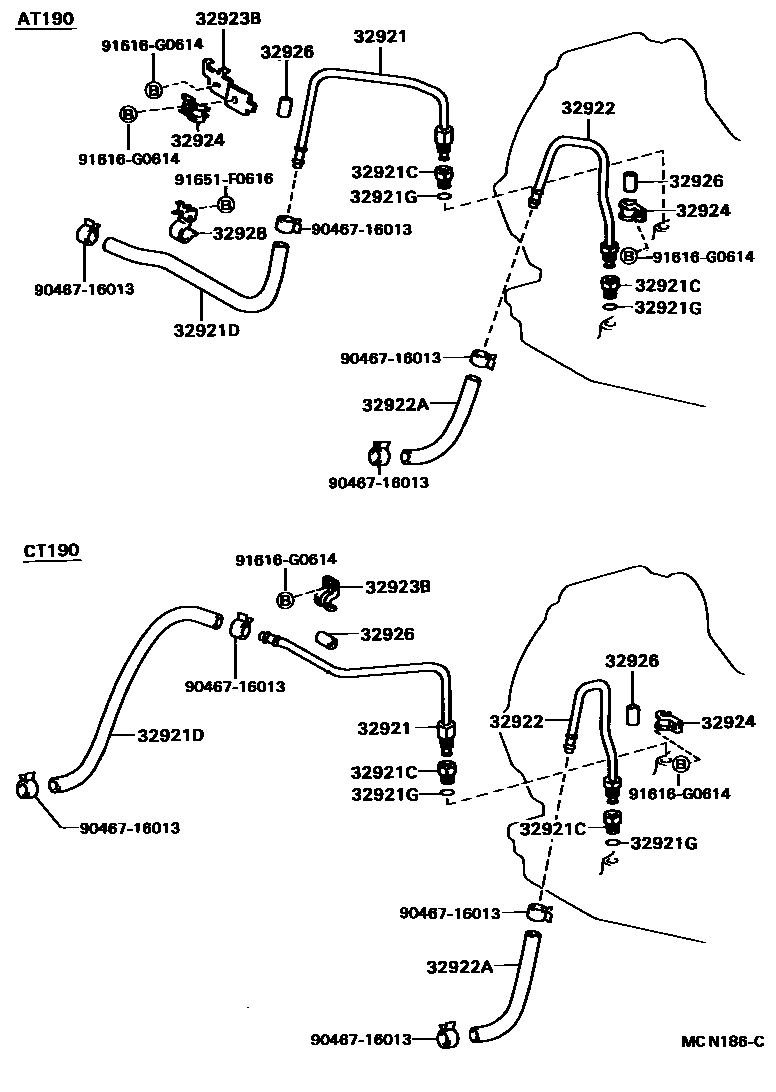

OIL COOLER & TUBE (ATM)

0001 1A240E,A241L 0003 1A245E 0004 1A241E,A540H

32921TUBE, OIL COOLER INLET, NO.1

main32921-20310iST190,191..ATM199202-199601

main32921-20320iCT190..ATM199202-199601

main32921-20350iAT190..ATM199202-199305

main32921-20360iAT190..ATM199305-199601

main32921-32140iST195..ATM199202-199601

32921CUNION(FOR OIL COOLER TUBE)

main32901-32050iST195..ATM199202-199601

OUTLET

main32918-32010iST195..ATM199202-199601

INLET

main90404-16031×2iCT190..ATM; ST190,191..ATM199403-199601

main90404-16032×2iAT190..ATM199305-199601

32921DHOSE(FOR OIL COOLER INLET)

main32943-20010iAT190..ATM199202-199401

main32943-20070iAT190..ATM199401-199408

main32943-20071iAT190..ATM199408-199601

main90445-17106iST190,191..ATM199202-199601

main90445-17112iCT190..ATM199202-199601

main90445-17117iST195..ATM199202-199601

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAT190,CT190,ST19#..ATM199202-199305

main90301-11006×2iAT190..ATM199305-199601

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20350iAT190..ATM199202-199305

main32922-20360iCT190,ST190,191..ATM199202-199601

main32922-20380iAT190..ATM199305-199601

main32922-32021iST195..ATM199202-199601

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17097iAT190..ATM199202-199601

main90445-17106iCT190,ST19#..ATM199202-199601

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20130iST190,191..ATM199202-199601

main32923-20150iAT190..ATM199202-199305

main32923-20160iAT190..ATM199305-199601

main32923-32060iST195..ATM199402-199601

main32924-20090iCT190..ATM199202-199601

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20080iAT190,ST190,191..ATM; CT190..ATM199202-199601

main90462-12071×2iST195..ATM199202-199601

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010×3iAT190,ST190,191..ATM; CT190..ATM199301-199601

main32926-30020iST195..ATM199202-199601

main32926-32010iST195..ATM199202-199601

main32926-36050iCT190..ATM199202-199301

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20100iAT190..ATM199202-199401

main32928-20120iAT190..ATM199401-199601

9046716013

main90467-16013

91616G0614

main91616-G0614

91651F0616

main91651-F0616

13 parts on this diagram · 3 diagrams in section
