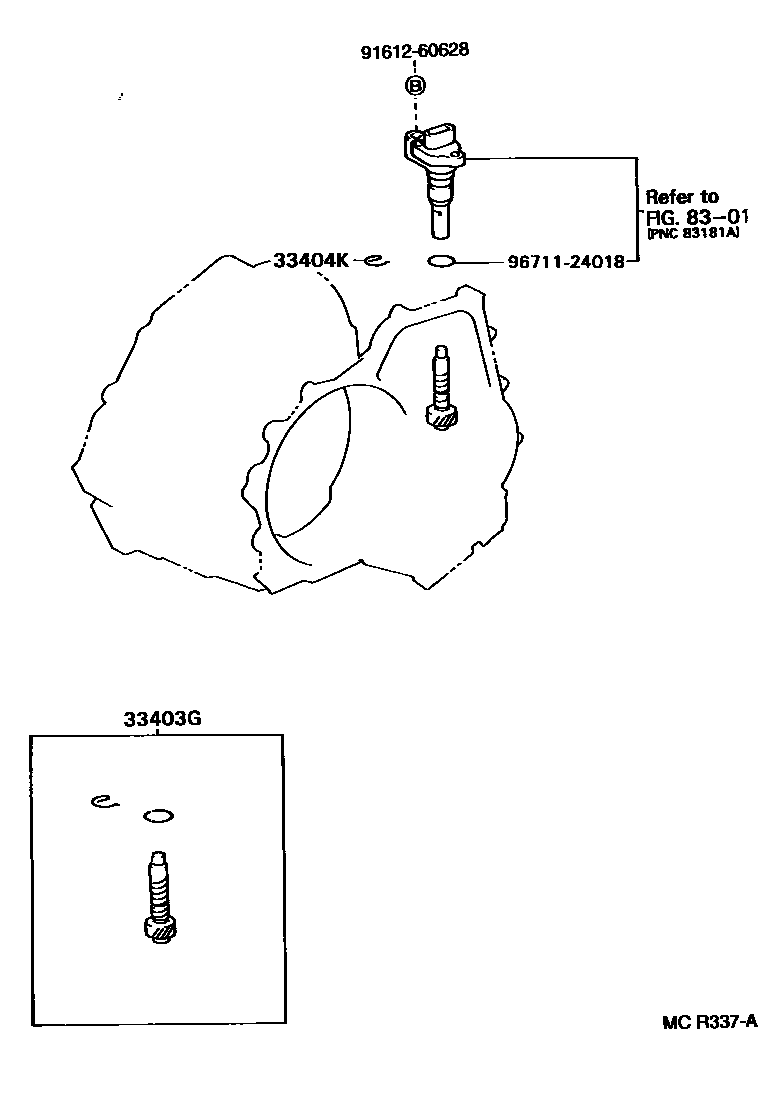

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A241E,A241L 0002 1A240E,A245E 0003 1A540H

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19455iAT190..ATM199202-199601

main33403-19525iCT190..ATM199403-199601

main33403-29405iCT190,ST190,191..ATM199202-199403

main33403-29415iST195..ATM199202-199601

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAT190,CT190,ST19#..ATM199202-199601

8301METER

→ Go to FIG 83-01

9161260628

main91612-60628

9671124018

main96711-24018

5 parts on this diagram · 3 diagrams in section
