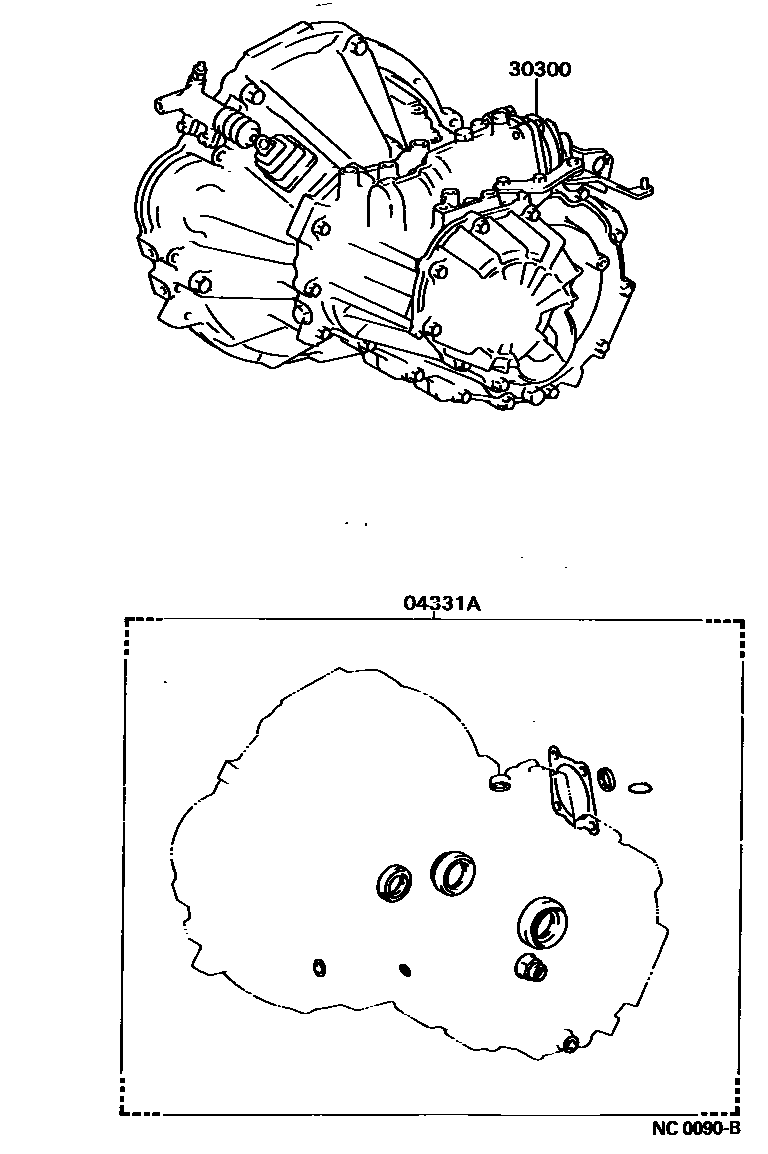

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C50 0002 1E56F,E57F 0003 1S50

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12101iCT195,ST195..MTM199202-199601

main04331-12110iAT190..MTM199202-199601

main04331-32011iCT190,ST190..MTM199202-199601

30300TRANSAXLE ASSY, MANUAL

main30300-2B210iAT190..MTM199202-199505

main30300-2B211iAT190..MTM199505-199601

main30300-2B230iST190..MTM..(EXG,EXS,GX,SELS,TYPE1)199202-199305

main30300-2B240iCT190..MTM..(EXS,GX,SELS)199202-199305

main30300-2B271iST195..MTM199202-199601

main30300-2B330iST190..MTM..(EXG,EXS,GX,SELS,TYPE1)199305-199601

main30300-2B340iCT190..MTM199305-199601

main30300-2B450iCT195199208-199601

main30300-2B490iST190..MTM..KYO199211-199601

2 parts on this diagram · 3 diagrams in section
