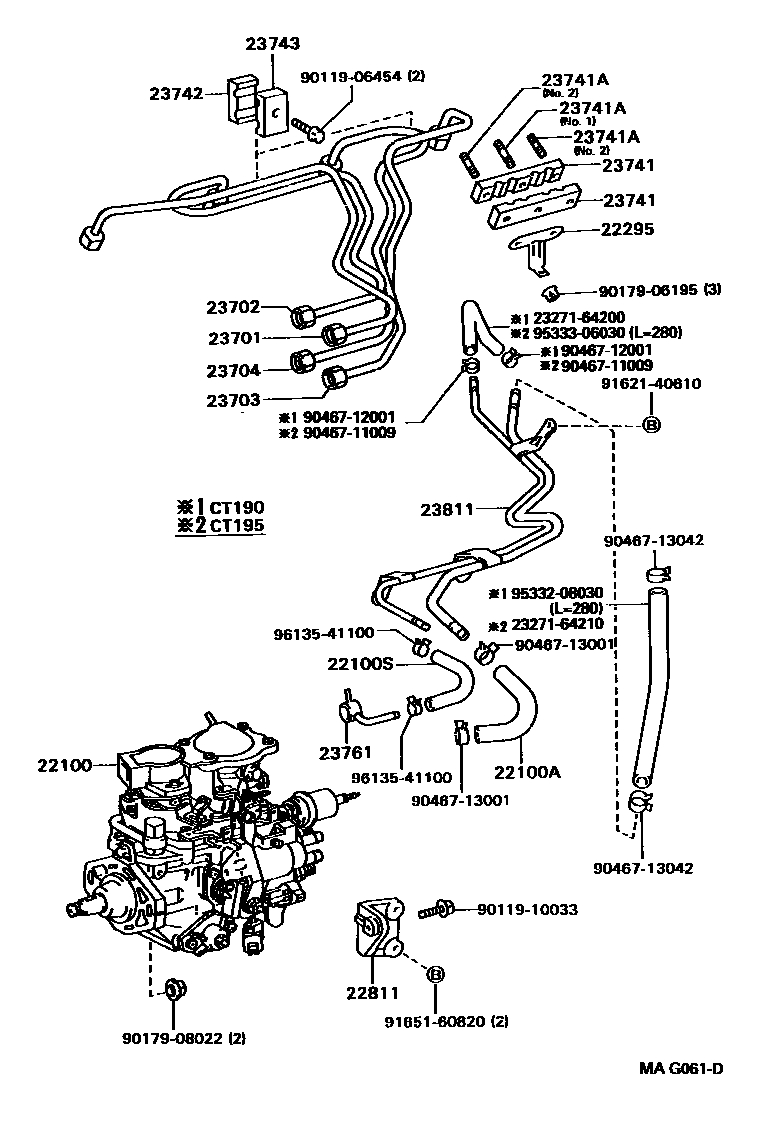

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
sub95337-06020
22295BRACKET, INJECTION PUMP CONNECTOR
22811STAY, INJECTION PUMP, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
sub23741-64011
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
23761PIPE, NOZZLE LEAKAGE, NO.1
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
2327164200VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
main23271-64200
2327164210VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
main23271-64210
9011906454
main90119-06454
9011910033
main90119-10033
9017906195
main90179-06195
9017908022
main90179-08022
9046711009
main90467-11009
9046712001
main90467-12001
9046713001
main90467-13001
9046713042
main90467-13042
9162140610
main91621-40610
9165160820
main91651-60820
9533208030
main95332-08030
9533306030
main95333-06030
9613541100
main96135-41100
30 parts on this diagram · 1 diagram in section
