DISTRIBUTOR

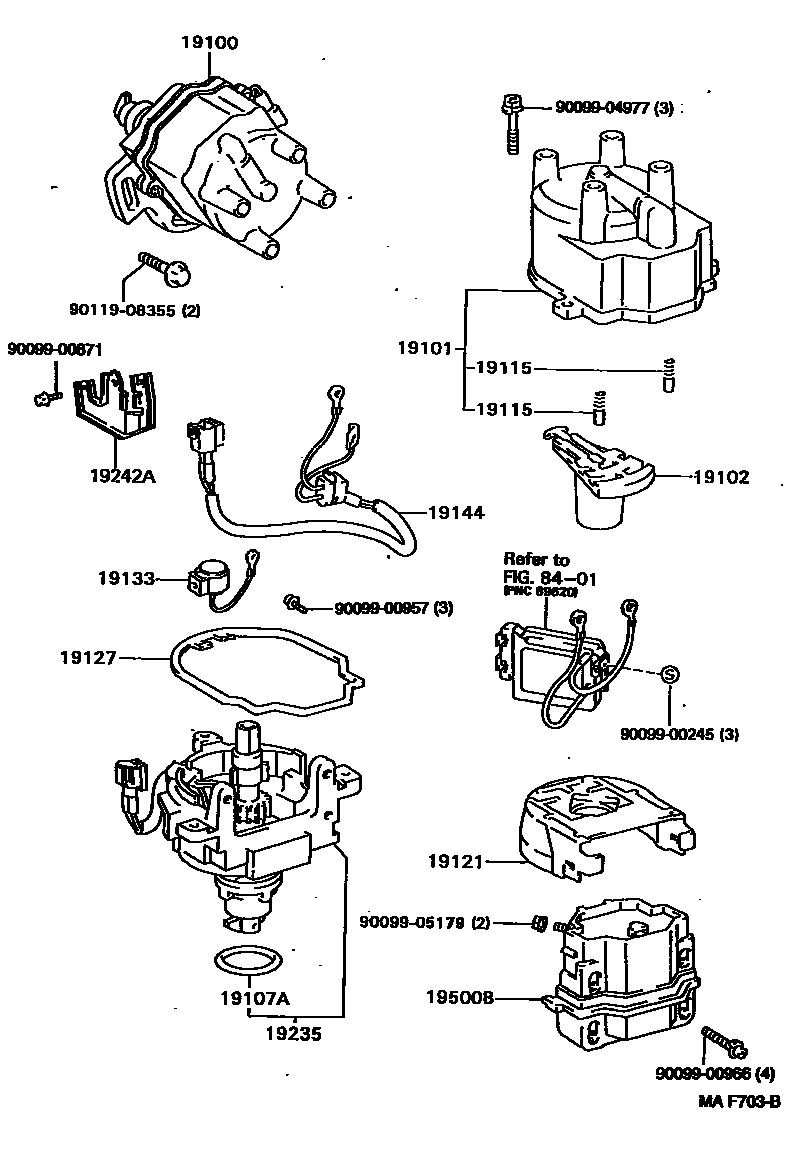

Parts diagram

19100DISTRIBUTOR ASSY

main19020-16250i199202-199511

main19020-16260i199511-199601

main19050-74020i199202-199308

main19050-74040i199402-199601

main19050-74050i199308-199402

main19100-74081i199202-199601

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199202-199601

main19101-74150i199202-199601

main19101-74180i199202-199601

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199202-199511

main19102-11370i199511-199601

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i199202-199409

main90099-14127i199410-199508

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199202-199601

main19115-88280i199202-199601

19121COVER, DUST PROOF

main19121-11080i199202-199601

main19121-74010i199202-199601

19127PACKING, DUST PROOF

main19127-15120i199202-199601

main19127-74010i199202-199601

main19127-74040i199202-199601

main19127-74050i199202-199601

19133CONDENSER, DISTRIBUTOR

main19133-16240i199202-199601

19144LEAD, DISTRIBUTOR BREAKER

main19144-16020i199202-199601

main19144-74100i199202-199601

19235HOUSING, DISTRIBUTOR

main19235-16270i199202-199601

main19235-74160i199202-199601

main19235-74180i199202-199308

main19235-74210i199308-199601

19242ACLAMP, CORD, NO.2

main19242-15180i199202-199601

19500BCOIL ASSY, IGNITION

main90919-02163i199202-199601

main90919-02164i199202-199601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009900245

main90099-00245

9009900871

main90099-00871

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9011908355

main90119-08355

20 parts on this diagram · 3 diagrams in section
