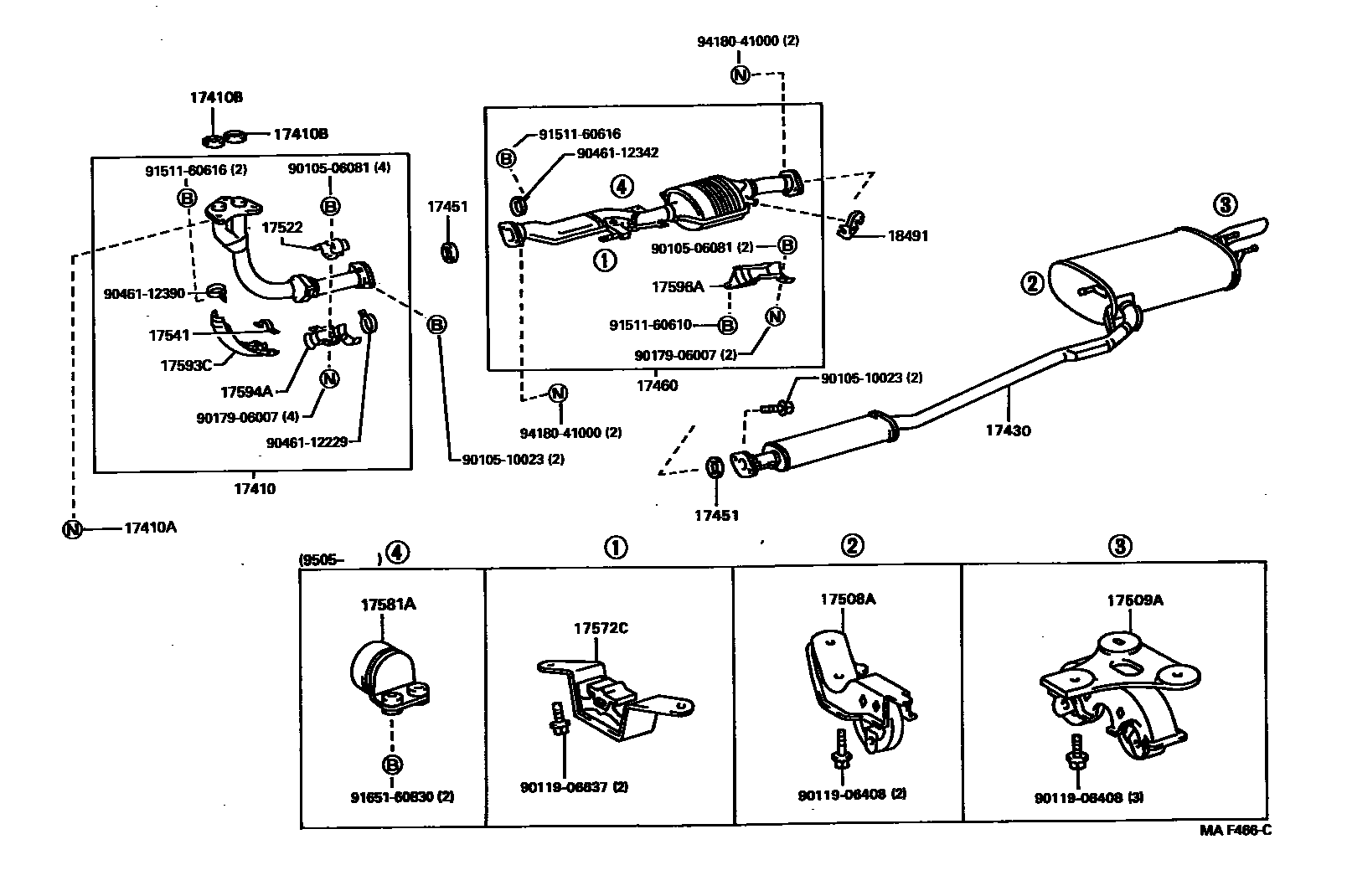

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-16840i4AFE..AT190199202-199601

main17410-64570i2C..CT190199202-199203

main17410-64571i2C..CT190199203-199402

main17410-64580i2C..CT195199208-199601

main17410-64620i2C..CT190199402-199601

main17410-7A080i4SFE..ST190199202-199601

main17410-7A090i3SFE..ST191199202-199601

main17410-7A130i3SFE..ST195199202-199601

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i2C..CT19#; 4AFE,3SFE,4SFE..AT190,ST19#199202-199601

17410BGASKET, EXHAUST PIPE

main90917-06061i2C..CT19#; 3SFE..ST191199202-199601

main90917-06064×2i4AFE..AT190199202-199601

main90917-06066i3SFE,4SFE..ST190,195199202-199601

17430PIPE ASSY, EXHAUST, TAIL

main17430-1A230i4AFE..AT190199202-199402

main17430-1A440i4AFE,3SFE..AT190,ST191199402-199601

main17430-64750i2C..CT190199202-199402

main17430-64790i2C..CT195199208-199402

main17430-6A020i2C..CT190199402-199601

main17430-6A030i2C..CT195199402-199601

main17430-7A170i4SFE..ST190199202-199305

main17430-7A180i3SFE..ST191199202-199402

main17430-7A270i3SFE..ST195199202-199402

main17430-7A390i4SFE..ST190..EXG,EXS,GX,SELS,TYPE1199305-199402

main17430-7A480i3SFE..ST195199402-199601

17451GASKET, EXHAUST PIPE

main90917-06041×2i3SFE..ST191199202-199311

main90917-06046i3SFE..ST191199402-199601

main90917-06048i2C..CT19#199202-199601

main90917-06078i3SFE..ST191199402-199601

17460CONVERTER ASSY, CATALYTIC W/PIPE

main17460-16010i4AFE..AT190199202-199407

main17460-16011i4AFE..AT190199407-199505

main17460-16012i4AFE..AT190199505-199601

main17460-74010i3SFE..ST191199202-199402

main17460-74070i3SFE..ST191199402-199407

main17460-74071i3SFE..ST191199407-199601

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-74030i4AFE,2C,3SFE,4SFE..AT190,CT190,ST190,191199202-199601

main17508-74070i2C,3SFE..CT195,ST195199202-199601

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-74110i4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19#199202-199601

17522PROTECTOR, EXHAUST PIPE, UPPER NO.2

main17522-16200i4AFE..AT190199202-199601

main17522-64070i2C..CT195199208-199601

17541STAY, EXHUST PIPE PROTECTOR, NO.1

main17541-74080i4AFE..AT190199202-199601

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-64130i2C..CT190199202-199203

main17571-64170i2C..CT195199208-199601

main17571-64230i2C..CT190199203-199402

main17571-74330i4AFE,3SFE,4SFE..AT190,ST190,191199202-199211

main17571-74331i4AFE,3SFE,4SFE..AT190,ST190,191199211-199305

main17571-74332i4AFE,3SFE,4SFE..AT190,ST190,191199305-199310

main17571-74333i4AFE,3SFE,4SFE..AT190,ST190,191199310-199407

main17571-74340i3SFE..ST195199202-199601

main17571-74430i4AFE,3SFE,4SFE..AT190,ST190,191199407-199601

17581ADAMPER, EXHAUST PIPE

main17581-16020i4AFE..AT190199505-199601

17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1

main17593-16320i4AFE..AT190199202-199601

main17593-74490i4SFE..ST190199202-199601

main17593-74530i3SFE..ST195199202-199601

17594APROTECTOR, EXHAUST PIPE, LOWER NO.2

main17594-16250i4AFE..AT190199202-199601

main17594-74420i4SFE..ST190199202-199601

17596APROTECTOR, EXHAUST PIPE, LOWER NO.4

main17596-16130i4AFE..AT190199202-199601

main17596-64010i2C..CT195199208-199601

main17596-74060i3SFE..ST191199202-199601

18491FLANGE, THERMOSENSOR INLET

main18491-28010i4AFE,3SFE..AT190,ST191199202-199311

main18491-74020i4AFE,3SFE..AT190,ST191199311-199601

9010506081

main90105-06081

9010510023

main90105-10023

9011906408

main90119-06408

9011906637

main90119-06637

9017906007

main90179-06007

9046112229

main90461-12229

9046112342

main90461-12342

9046112390

main90461-12390

9151160610

main91511-60610

9151160616

main91511-60616

9165160830

main91651-60830

9418041000

main94180-41000

28 parts on this diagram · 6 diagrams in section
