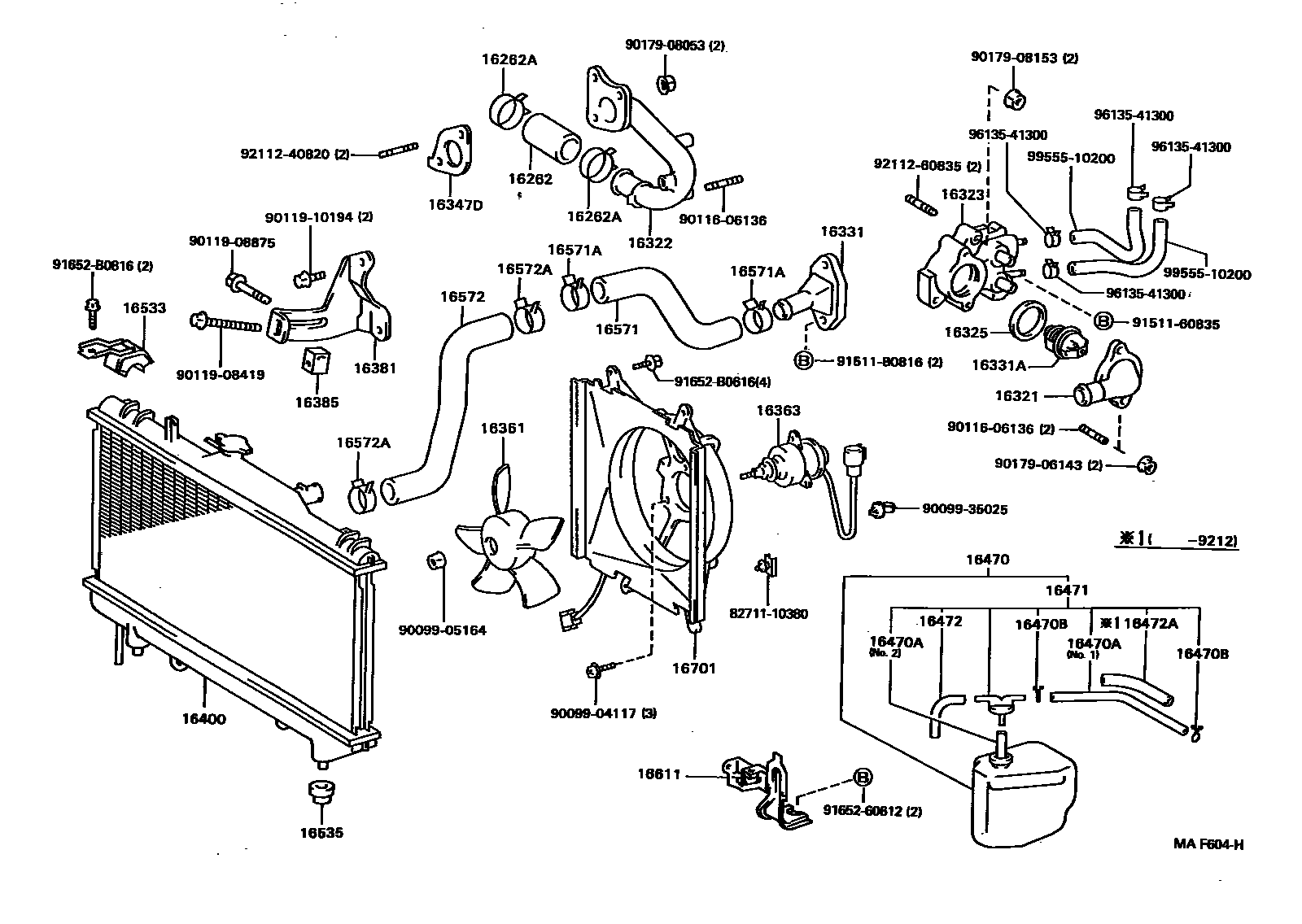

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

16262HOSE, WATER INLET

main16262-15040i4AFE..AT190199202-199601

sub16262-16030

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i4AFE..AT190199202-199601

sub90467-37005

16321INLET, WATER

main16321-15040i4AFE..AT190199202-199601

main16321-64020i2C..CT19#199202-199601

main16321-74030i3SFE,4SFE..ST19#199202-199601

sub16321-74050

16322PIPE, WATER INLET

main16322-15050i4AFE..AT190199202-199601

16323HOUSING, WATER INLET

main16323-15180i4AFE..AT190199402-199601

main16323-16420i4AFE..AT190199202-199402

sub16323-16410

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i3SFE,4SFE..ST19#199202-199301

sub16325-63011

main16325-63011i2C..CT19#199301-199601

16331OUTLET, WATER

main16331-15080i4AFE..AT190199202-199601

main16331-64030i2C..CT19#199412-199601

main16331-64070i2C..CT19#199202-199412

main16331-74200i3SFE,4SFE..ST19#199202-199601

16331ATHERMOSTAT

main90916-03046i2C..CT19#199202-199601

16347DGASKET, WATER BY-PASS

main16347-15010i4AFE..AT190199202-199601

16361FAN

main16361-11010i4AFE..AT190..MTM199202-199601

main16361-11020i3SFE..ST195..MTM;3SFE,4SFE..ST190,191..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199601

main16361-64030i2C..CT195;2C..CT190..ATM199202-199601

main16361-74070i3SFE..ST195..ATM;4SFE..ST190..ATM..KYO199202-199601

16363MOTOR, COOLING FAN

main16363-11010i4AFE..AT190..MTM199202-199601

main16363-11020i4AFE..AT190..ATM199202-199601

main16363-11030i3SFE..ST195..ATM199202-199601

main16363-64090i2C..CT195;2C..CT190..ATM..(EXS,GX,SELS)199202-199601

main16363-64100i2C..CT190..ATM..KYO199211-199601

main16363-74020i2C..CT190..MTM..(EXS,GX,SELS)199202-199601

main16363-74090i4SFE..ST190..MTM..KYO199211-199402

sub16363-16040

main16363-74100i2C..CT190..MTM..KYO199211-199601

16381BAR, FAN BELT ADJUSTING

main16381-15080i4AFE..AT190199202-199601

main16381-64050i2C..CT190..EXS,GX,SELS199202-199305

main16381-64080i2C..CT19#199208-199601

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i4AFE..AT190199202-199601

sub16385-15030

main16385-64011i2C..CT19#199208-199601

main16385-64030i2C..CT190..EXS,GX,SELS199202-199305

16400RADIATOR ASSY

main16400-16450i4AFE..AT190..MTM199202-199601

sub16400-16470

main16400-16460i4AFE..AT190..ATM199202-199402

sub16400-16461

main16400-16461i4AFE..AT190..ATM199402-199601

main16400-64730i2C..CT190..MTM199202-199301

sub16400-64731

main16400-64731i2C..CT190..MTM199301-199601

main16400-64740i2C..CT190..ATM199202-199301

sub16400-64741

main16400-64741i2C..CT190..ATM199301-199601

main16400-64750i2C..CT195199208-199301

sub16400-64751

main16400-64751i2C..CT195199301-199601

sub16400-64741

main16400-74780i3SFE,4SFE..ST190,195..MTM199202-199402

sub16400-74840

main16400-74790i4SFE..ST190..ATM199202-199402

main16400-74810i3SFE,4SFE..ST190,191..ATM199202-199601

sub16400-74830

main16400-74820i3SFE..ST195..MTM199202-199601

sub16400-74790

main16400-74830i3SFE..ST195..ATM199202-199601

main16400-7A040i3SFE..ST195..ATM199208-199402

sub16400-74830

sub16533-74211

main16400-7A100i4SFE..ST190..MTM199402-199601

sub16400-74820

16470TANK ASSY, RADIATOR RESERVE

main16470-64170i2C..CT190..KYO199211-199601

main16470-74200i2C..CT19#..EXS,GX,SELS199202-199601

sub16470-74230

main16470-74240i4SFE..ST190..KYO199211-199601

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16471-74200i3SFE,4SFE..ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199601

main16472-64170i2C..CT190..KYO199211-199601

main16472-74240i4SFE..ST190..KYO199211-199601

main90445-12078i2C..CT19#..EXS,GX,SELS199202-199601

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2C..CT19#199202-199601

16471CAP SUB-ASSY, RESERVE TANK

main16405-74190i4AFE..AT190199202-199601

main16405-74230i2C..CT190..KYO199211-199601

sub16405-46030

16472HOSE, BREATHER

main85338-72010i4AFE..AT190199202-199601

main85338-74040i2C..CT190..KYO199211-199601

16472APROTECTOR, HOSE

main16478-74200i4AFE..AT190199202-199212

16533SUPPORT, RADIATOR, UPPER

main16533-64130i2C..CT19#199202-199601

main16533-74200i4AFE..AT190199202-199211

sub16533-74201

main16533-74201i4AFE..AT190199211-199601

main16533-74210i3SFE..ST191199202-199211

sub16533-74211

main16533-74211i3SFE..ST191199211-199601

16535SUPPORT, RADIATOR, LOWER

main16535-64050i2C..CT19#199202-199601

main16535-74020i4SFE..ST190;3SFE..ST195..MTM199202-199601

main16535-74130i3SFE..ST191,195..ATM199202-199601

16571HOSE, RADIATOR, INLET

main16571-16170i4AFE..AT190199202-199302

sub16571-16210

main16571-16210i4AFE..AT190199302-199601

main16571-64200i2C..CT190199202-199601

main16571-64210i2C..CT195199208-199601

main16571-74200i3SFE,4SFE..ST190,191199202-199212

sub16571-74260

main16571-74220i3SFE..ST195199202-199212

sub16571-74270

main16571-74260i3SFE,4SFE..ST190,191199212-199601

main16571-74270i3SFE..ST195199212-199601

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i2C..CT19#199202-199601

sub90467-34003

main90467-34003i2C..CT19#199202-199601

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-16140i4AFE..AT190199202-199402

sub16572-16210

main16572-16210i4AFE..AT190199402-199601

main16572-64230i2C..CT190199202-199601

main16572-64240i2C..CT195199208-199306

sub16572-64241

main16572-64241i2C..CT195199306-199601

main16572-74190i3SFE,4SFE..ST19#199202-199601

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i2C..CT19#199202-199601

sub90467-34003

main90467-34003i3SFE,4SFE..ST19#199202-199601

sub90467-34004

main90467-34003i2C..CT19#199312-199402

sub90467-34004

main90467-37001i2C..CT19#199202-199601

WATER INLET SIDE

sub90467-37003

16611BRACKET, RADIATOR RESERVE TANK

main16611-74110i3SFE,4SFE..ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199601

main16611-74130i2C..CT190..KYO199211-199601

16701SHROUD SUB-ASSY, FAN

main16711-64350i2C..CT190..MTM199202-199203

sub16711-64351

main16711-64351i2C..CT190..MTM..(EXS,GX,SELS)199203-199601

main16711-64360i2C..CT195;2C..CT190..ATM199202-199301

sub16711-64361

main16711-64361i2C..CT195;2C..CT190..ATM199301-199510

sub16711-64362

main16711-64362i2C..CT195;2C..CT190..ATM199510-199601

main16711-64410i2C..CT190..MTM..KYO199211-199601

main16711-74080i3SFE..ST195..ATM;4SFE..ST190..ATM..KYO199202-199601

main16711-74430i4SFE..ST190..MTM..(EXG,EXS,GX,SELS,TYPE1)199202-199601

main16711-74440i4AFE..AT190..ATM199202-199601

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9011606136

main90116-06136

9011908419

main90119-08419

9011908875

main90119-08875

9011910194

main90119-10194

9017906143

main90179-06143

9017908053

main90179-08053

9017908153

main90179-08153

9151160835

main91511-60835

91511B0816

main91511-B0816

9165260612

main91652-60612

91652B0616

main91652-B0616

91652B0816

main91652-B0816

9211240820

main92112-40820

9211260835

main92112-60835

9613541300

main96135-41300

9955510200

main99555-10200

48 parts on this diagram · 8 diagrams in section
