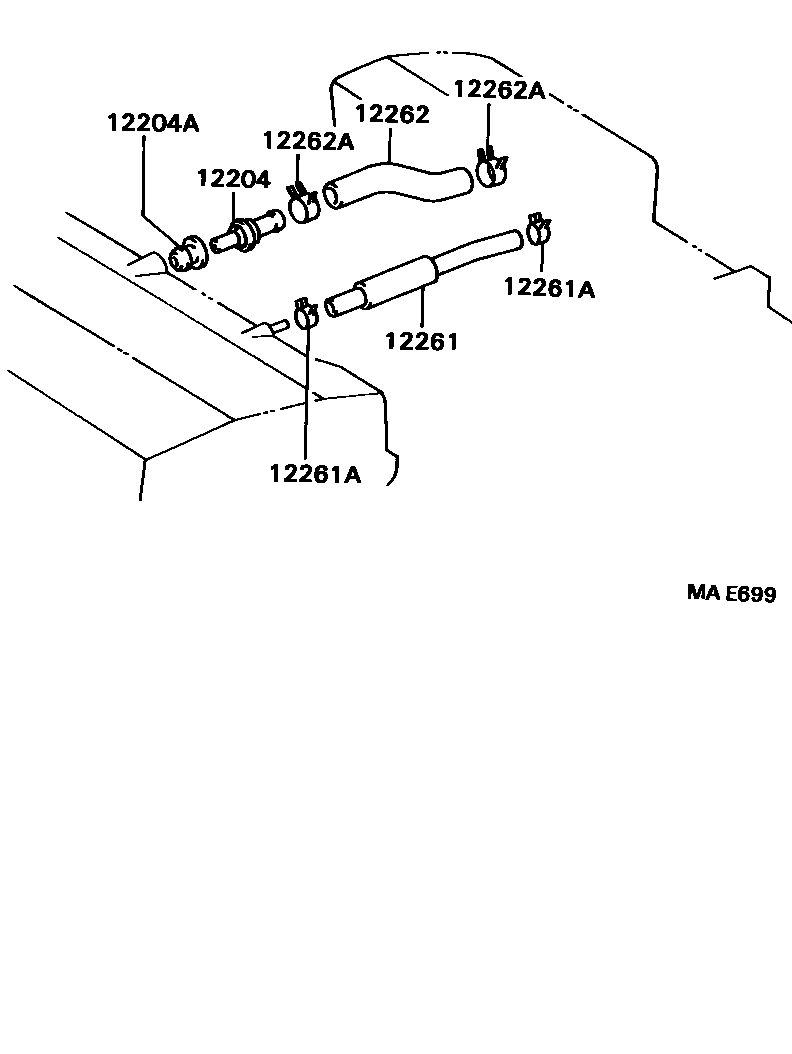

VENTILATION HOSE

0001 1 0002 1 0003 1 0006 1

12204VALVE SUB-ASSY, VENTILATION

main12204-15050i4AFE..AT190199202-199601

main12204-74020i3SFE,4SFE..ST19#199202-199601

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4AFE..AT190199202-199601

12261HOSE, VENTILATION

main12261-64110i2C..CT19#199208-199601

main12261-64120i2C..CT190..EXS,GX,SELS199202-199305

main12261-74020i3SFE..ST191..EXS;3SFE,4SFE..ST190,195199202-199601

main12261-74090i3SFE..ST191..EXS199202-199601

main90445-10064i4AFE..AT190199202-199601

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-10099i4AFE..AT190199202-199601

sub96132-51000

main90467-15016i3SFE,4SFE..ST19#199202-199511

sub96135-51400

main90467-15022i3SFE,4SFE..ST19#199511-199601

main90467-15120i2C..CT190..EXS,GX,SELS199202-199305

main90467-18003i2C..CT195;2C..CT190..KYO199208-199601

main90467-18003i2C..CT190..EXS,GX,SELS199203-199305

main90467-19122i2C..CT190199202-199203

12262HOSE, VENTILATION, NO.2

main12262-74050i3SFE,4SFE..ST19#199202-199601

main90445-15063i4AFE..AT190199202-199601

sub90445-15067

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i3SFE,4SFE..ST19#199202-199601

SURGE TANK SIDE

main90467-14017i4AFE..AT190199512-199601

main90467-15016i3SFE,4SFE..ST19#199202-199511

VALVE SIDE

sub96135-51400

main90467-15022i3SFE,4SFE..ST19#199511-199601

VALVE SIDE

main90467-15022i4AFE..AT190199202-199304

main90467-15027i4AFE..AT190199304-199512

6 parts on this diagram · 4 diagrams in section
