ENGINE OVERHAUL GASKET KIT

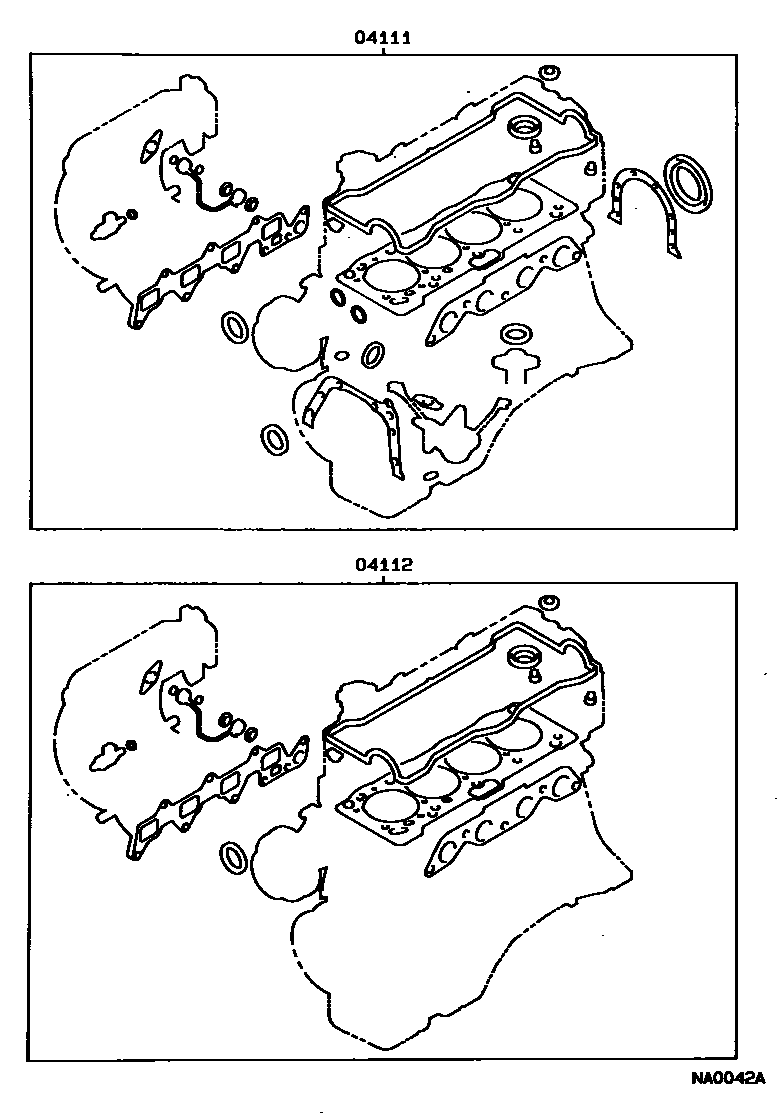

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-16230i199202-199408
sub04111-16231
main04111-16231i199408-199601
main04111-64180i199202-199305
sub04111-64181
sub11115-64170
main04111-64200i199208-199504
sub04111-64201
main04111-64201i199504-199511
sub04111-64202
main04111-64202i199511-199601
sub04111-64203
sub11115-64170
main04111-74420i199202-199402
main04111-74430i199202-199402
main04111-74480i199402-199508
main04111-74481i199508-199601
main04111-74490i199402-199508
main04111-74491i199508-199601
04112GASKET KIT, ENGINE VALVE GRIND
main04112-16230i199202-199601
main04112-64120i199202-199305
sub04112-64121
main04112-64140i199208-199504
sub04112-64141
main04112-64141i199504-199511
sub04112-64142
main04112-64142i199511-199601
sub04112-64143
sub11115-64170
main04112-74420i199202-199402
main04112-74430i199202-199402
main04112-74480i199402-199601
main04112-74490i199402-199601

2 parts on this diagram · 3 diagrams in section
