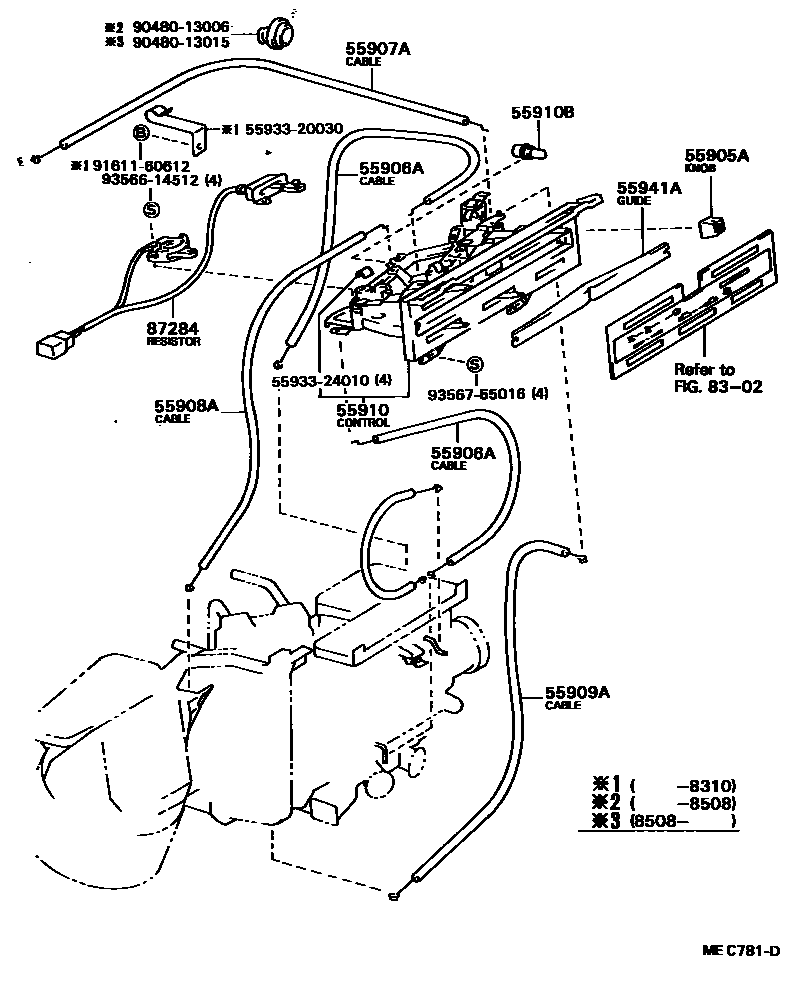

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905AKNOB, HEATER CONTROL

main55905-12060×5iAT150,CT150,ST150198301-198508

main55905-20150iST150,162..EXA,GT198508-198711

*PHC,A/C

main55905-20160iST150,162..EXA,GT198508-198711

*PHC,ECON

main55905-20170iST150,162..EXA,GT198508-198711

*PHC,MODE-AUTO

main55905-20180iST150,162..EXA,GT198508-198711

*PHC,FAN-AUTO

main55905-20240iST150,162..EXA,GT198508-198711

*PHC,HI

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-20150iAT150,CT150,ST150198301-198508

MODE

main55906-20160iAT150,CT150,ST150198301-198508

R-L CONTROL

main55906-20240iST150,162..EXA,GT198508-198711

*PHC

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20160iAT150,CT150,ST150198301-198508

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20080iAT150,CT150,ST150198301-198409

main55908-20120iAT150,CT150,ST150198409-198508

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main87286-20010iAT150,CT150,ST150198301-198508

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-20280iST150,162..EXA,GT198508-198609

W/*PHC

main55900-20281iST150,162..EXA,GT198609-198711

W/*PHC

main55910-20290iAT150,CT150,ST150198301-198508

main55910-20291iAT150,CT150,ST150,16#..DX,EXS,GT,GX,STD,SX,SXR198508-198711

55910BBULB, HEATER CONTROL

main90981-11014iAT150,CT150,ST150,16#198508-198711

55941AGUIDE, HEATER CONTROL

main55941-20050iAT150,CT150,ST150198301-198508

8302INDICATOR

→ Go to FIG 83-02

87284RESISTOR SUB-ASSY, VARIABLE

main88032-20030iAT150,CT150,ST150,16#..EXS,GT,SX,SXR198508-198711

W/AUTOMATIC AIR CONDITIONER

5593320030GUIDE, LEVER, NO.2

main55933-20030

5593324010GUIDE, LEVER, NO.2

main55933-24010

9048013006

main90480-13006

9048013015

main90480-13015

9161160612

main91611-60612

9356614512

main93566-14512

9356755016

main93567-55016

17 parts on this diagram · 4 diagrams in section
