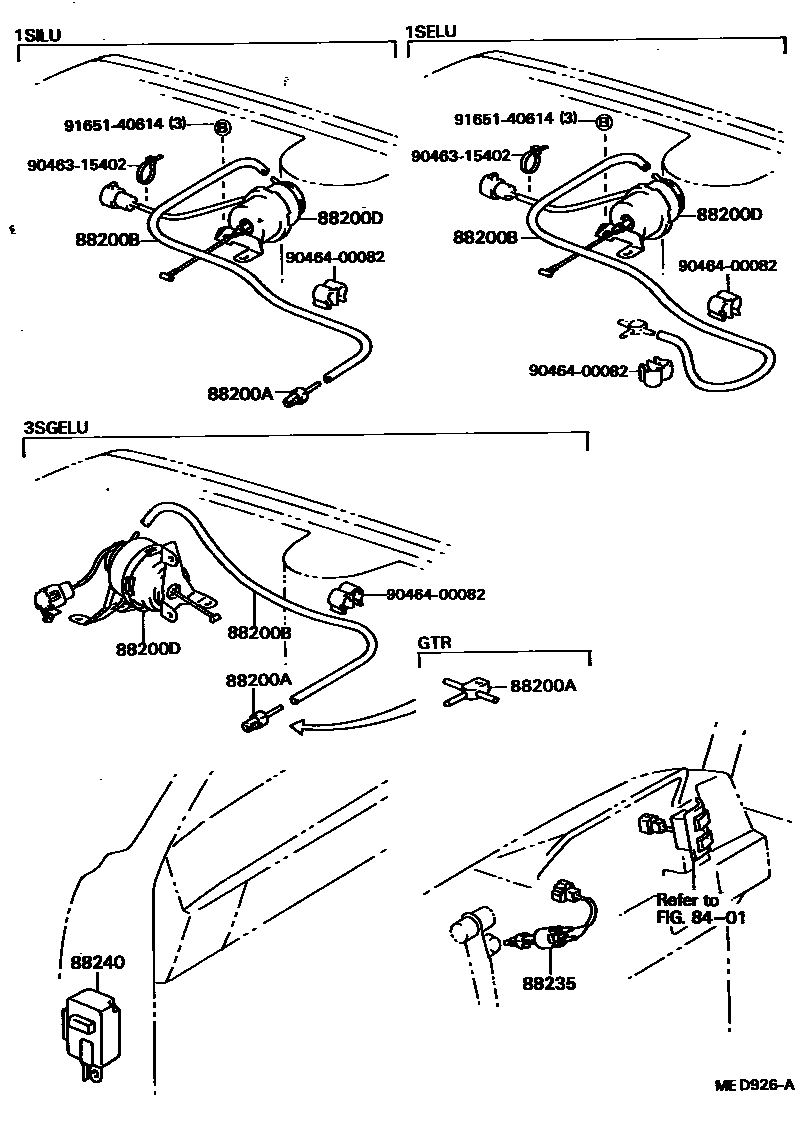

CRUISE CONTROL (AUTO DRIVE)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iST150,162..EXS,GT198310-198711

main90413-04005iST162198508-198711

GT-R

88200BHOSE, CRUISE CONTROL VACUUM

main95411-19960iST150,162..EXS,GT198310-198711

main95411-19995iST150..EFI198310-198508

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20021iST150..EXA,EXS198508-198711

main88200-20040iST162198508-198711

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-20010iST150,162..5F..(EXA,EXS,GT)198508-198711

main88280-35010iST150..5F..(EXA,EXS,SX)198310-198508

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20031iST150..EXA,EXS,SX198310-198508

main88240-20110iST150..EXA,EXS198508-198711

main88240-20120iST162198508-198711

9046315402

main90463-15402

9046400082

main90464-00082

9165140614

main91651-40614

9 parts on this diagram · 1 diagram in section
