INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-13iCT150,ST150..EXA,EXS,SX198310-198508

A TYPE,W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main81240-16010-15iCT150,ST150..EXA,EXS,SX198310-198508

A TYPE,W/SUN ROOF,BEIGE,BEIGE,TRIM3#

main81240-20060-13iST150198301-198310

A TYPE,GRAY,GRAY,TRIM1#,8#

main81240-20060-35iST150198301-198310

A TYPE,BEIGE,BEIGE,TRIM3#

main81240-22040-03iCT150,ST150..EXA,EXS198310-198711

B TYPE,GRAY,GRAY,TRIM1#,8#

main81240-22040-05iCT150,ST150..EXA,EXS198310-198711

B TYPE,BEIGE,BEIGE,TRIM3#

main81240-22070-15iAT150,ST16#;CT150,ST150..GX,SX198508-198711

A TYPE,BEIGE,BEIGE,TRIM3#

main81240-22070-23iAT150,ST16#;CT150,ST150..GX,SX198508-198711

A TYPE,GRAY,GRAY,TRIM1#,8#

main81240-22080-15iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198608

A TYPE,W/SUN ROOF,BEIGE,BEIGE,TRIM3#

main81240-22080-23iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198608

A TYPE,W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main81240-22081-05iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198608-198711

A TYPE,W/SUN ROOF,BEIGE,BEIGE,TRIM3#

main81240-22081-23iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198608-198711

A TYPE,W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

81240BBULB, ROOM LAMP, NO.1

main90981-12005×2iCT150,ST150..EXA,EXS198310-198711

main99132-12100iAT150,CT150,ST150,16#198301-198711

81241LENS, ROOM LAMP, NO.1

main81241-16010iCT150,ST150..EXA,EXS,SX198310-198508

A TYPE,W/SUN ROOF

main81241-20060iST150198301-198310

A TYPE

main81241-22040iCT150,ST150..EXA,EXS198310-198711

B TYPE

81248COVER, ROOM LAMP, NO.1

main81248-22040-03iCT150,ST150..EXA,EXS198310-198711

LIGHT GRAY,GRAY,TRIM1#

main81248-22040-05iCT150,ST150..EXA,EXS198310-198711

BEIGE,BEIGE

81250LAMP ASSY, ROOM, NO.2

main81250-14030-04iAT150,ST150..5D198310-198711

BLUE,BLUE,TRIM8#

main81250-14030-12iAT150,ST150..5D198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main81250-14030-13iAT150,ST150..5D198301-198711

SHADOW GRAY,GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAT150,ST150..5D198301-198711

81251LENS, ROOM LAMP, NO.2

main81251-14030iAT150,ST150..5D198301-198711

81260LAMP ASSY, GLOVE BOX

main81260-22070iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198301-198711

81260ALAMP ASSY, MAP

main81260-14050-03iCT150,ST150,162..EXA,EXS,GT198301-198711

W/O SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main81260-14050-05iCT150,ST150,162..EXA,EXS,GT198301-198711

W/O SUN ROOF,BEIGE,BEIGE,TRIM3#

main81260-20080-03iCT150,ST150..EXA,EXS,SX198310-198508

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main81260-20080-05iCT150,ST150..EXA,EXS,SX198310-198508

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

main81260-20081-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main81260-20081-05iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

81260BBULB(FOR GLOVE BOX)

main90981-11018iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198301-198711

81260CBULB(FOR MAP LAMP)

main90981-12005×2iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198301-198711

81261LENS AND COVER, MAP LAMP

main81261-20080-03iCT150,ST150,162..EXA,EXS,GT,SX198310-198711

W/SUN ROOF,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main81261-20080-05iCT150,ST150,162..EXA,EXS,GT,SX198310-198711

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

main81268-22040-03iCT150,ST150,162..EXA,EXS,GT198301-198711

W/O SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main81268-22040-05iCT150,ST150,162..EXA,EXS,GT198301-198711

W/O SUN ROOF,BEIGE,BEIGE,TRIM3#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iAT150,CT150,ST150,162..4D..(EXA,EXS,GT)198310-198703

main81330-22031iAT150,CT150,ST150,162..4D..(EXA,EXS,GT)198703-198711

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAT150,CT150,ST150,162..4D..(EXA,EXS,GT)198703-198711

main99132-12050iAT150,CT150,ST150,162..4D..(EXA,EXS,GT)198310-198703

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iAT150,CT150,ST150,162..4D..(EXA,EXS,GT)198310-198711

81871LENS, KEY ILLUMINATION

main81871-20010iCT150,ST150,162..EXA,EXS,GT198301-198711

main81871-20020iAT150,ST16#;CT150,ST150..DX,GX,SX198301-198711

9016445005

main90164-45005

9018904002

main90189-04002

9351013008

main93510-13008

9351064016

main93510-64016

9354024016

main93540-24016

9356014012

main93560-14012

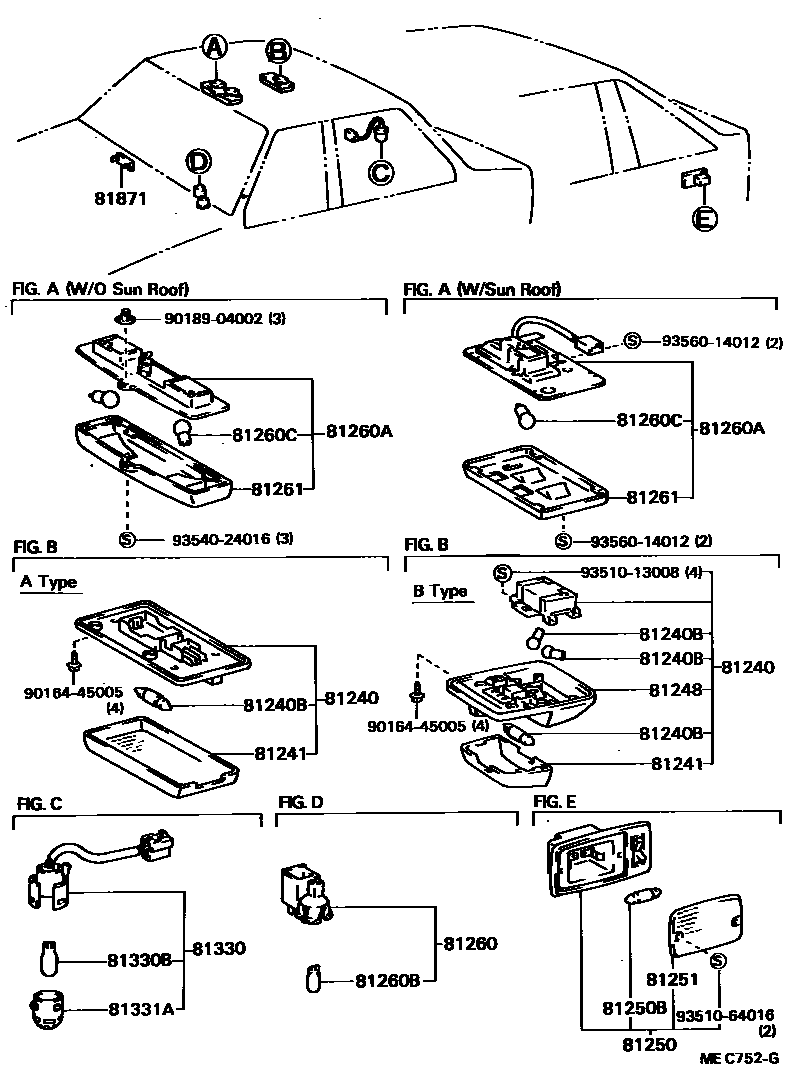

22 parts on this diagram · 1 diagram in section
