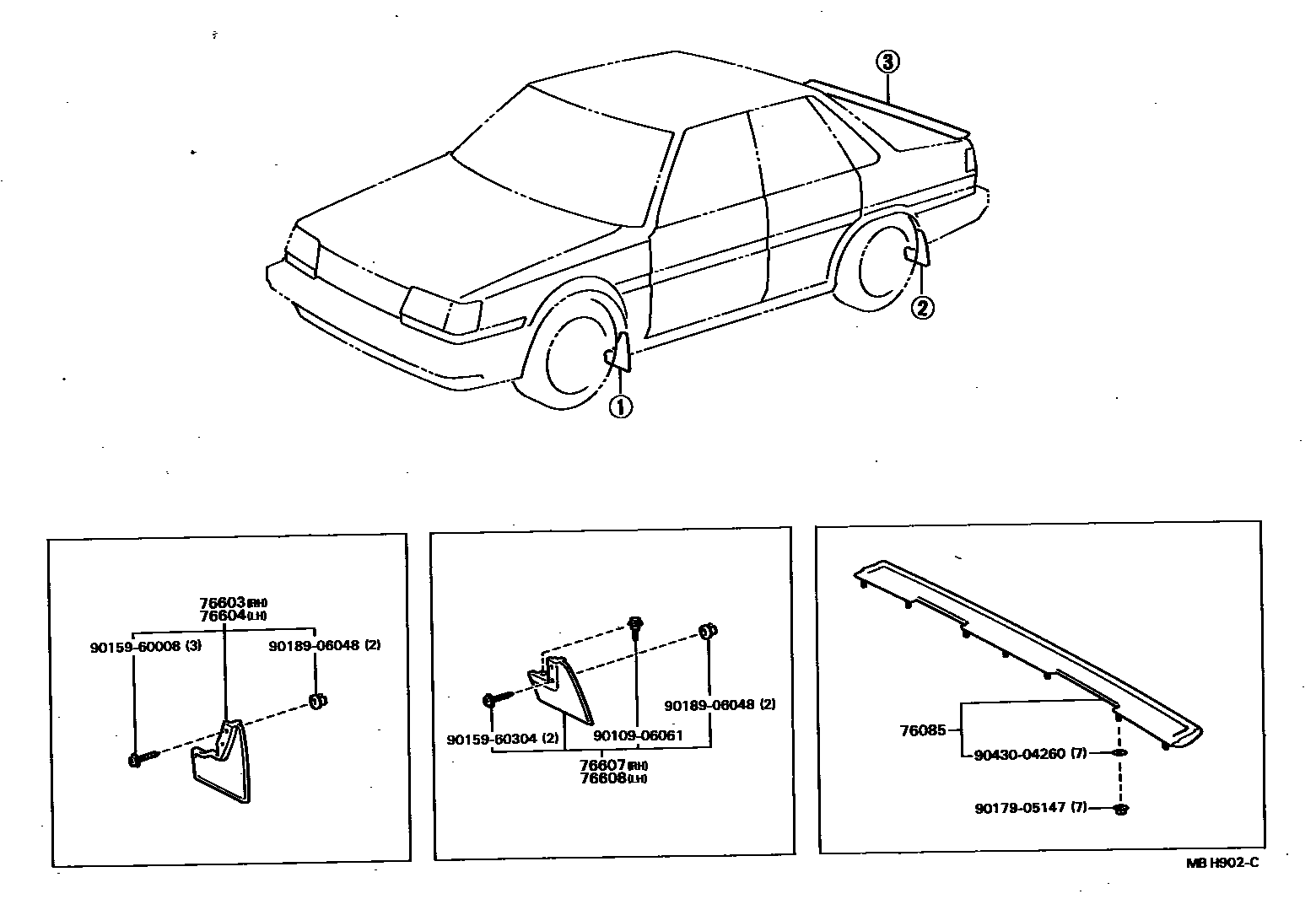

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-20030iAT150,CT150,ST150,16#..4D198410-198711

main76085-20040iAT150,ST150..5D198410-198711

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29015iST150..EXS198301-198310

main76621-29045iST16#198508-198711

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29015iST150..EXS198301-198310

main76622-29045iST16#198508-198711

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29015iST150..EXS198301-198310

main76625-29065iAT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR); AT150,ST150..5D198508-198711

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29015iST150..EXS198301-198310

main76626-29065iAT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR); AT150,ST150..5D198508-198711

9010906061

main90109-06061

9015960008

main90159-60008

9015960304

main90159-60304

9017905147

main90179-05147

9018906048

main90189-06048

9043004260

main90430-04260

11 parts on this diagram · 1 diagram in section
