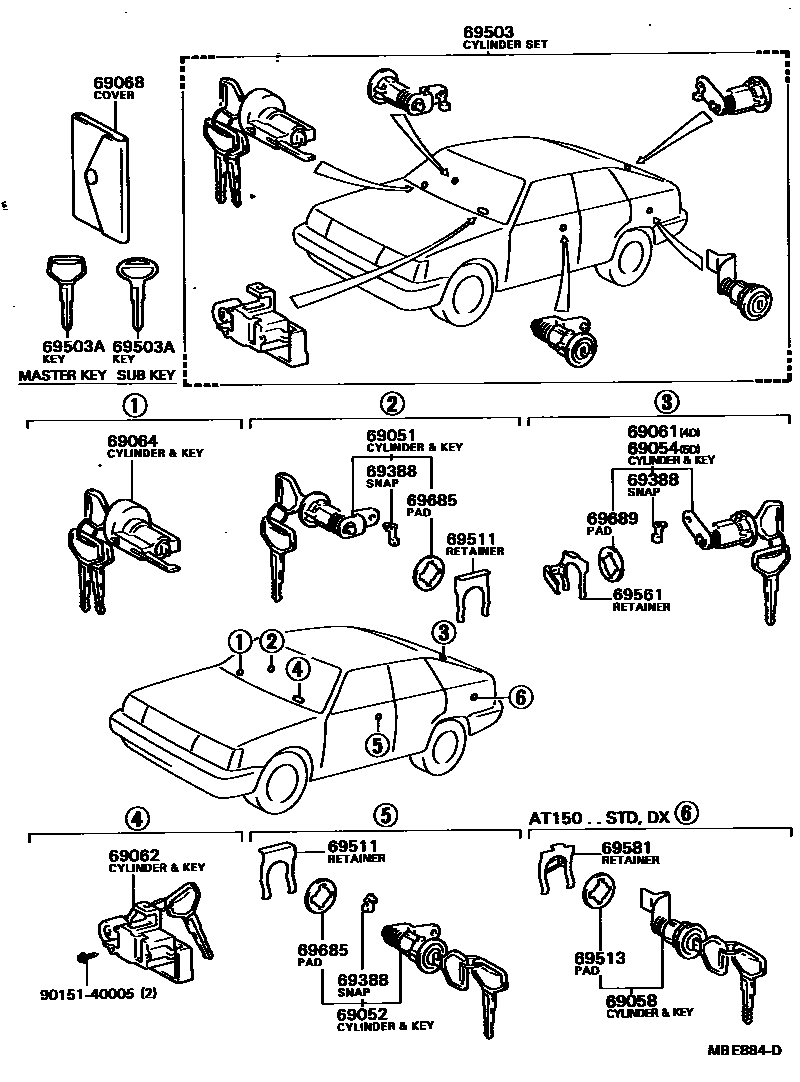

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20120iAT150,CT150,ST150,16#198301-198604

main69051-20121iAT150,CT150,ST150,16#198604-198711

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20110iAT150,CT150,ST150,16#198301-198604

main69052-20111iAT150,CT150,ST150,16#198604-198711

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-20100iAT150,ST150..5D198301-198604

main69055-20101iAT150,ST150..5D198604-198711

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-20040iAT150..DX,STD198310-198604

main69058-20041iAT150..DX,STD198604-198711

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-20140iAT150,CT150,ST150..4D198310-198508

main69055-20141iAT150..DX,STD198604-198711

main69055-20250iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198508-198604

main69055-20251iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198604-198711

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20050-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main69056-20050-03iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198301-198604

SHADOW GRAY,GRAY,TRIM1#

main69056-20050-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main69056-20050-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198604

BLUE,BLUE,TRIM8#

main69056-20051-02iAT150,CT150,ST150..DX,EXA,EXS,GX198604-198711

DEEP MAROON,MAROON,TRIM3#

main69056-20051-03iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198604-198711

SHADOW GRAY,GRAY,TRIM1#

main69056-20051-04iAT150,CT150,ST150..DX,EXA,EXS,GX198604-198711

BLUE,BLUE,TRIM8#

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20040iAT150,CT150,ST150,16#198301-198604

main69057-20041iAT150,CT150,ST150,16#198604-198702

main69057-20042iAT150,CT150,ST150,16#198702-198711

69068COVER SUB-ASSY, KEY

main69555-20010iAT150,CT150,ST150,16#198301-198711

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iAT150,CT150,ST150..4D198301-198508

BACK OR LUGGAGE DOOR

main69759-20090iAT150,CT150,ST150,16#198301-198711

LH

69503CYLINDER SET, LOCK

main69005-20280-02iAT150,ST150..5D..(EXA,EXS,GX)198508-198604

DEEP MAROON,RED/MAROON,TRIM3#

main69005-20280-03iAT150,ST150..5D198301-198604

SHADOW GRAY,GRAY,TRIM1#

main69005-20280-04iAT150,ST150..5D198310-198508

BLUE,BLUE,TRIM8#

main69005-20280-14iAT150,ST150..5D..(EXA,EXS,GX)198508-198604

BLUE,BLUE,TRIM8#

main69005-20281-02iAT150,ST150..5D..(EXA,EXS,GX)198604-198703

DEEP MAROON,MAROON,TRIM3#

main69005-20281-03iAT150,ST150..5D198604-198703

SHADOW GRAY,GRAY,TRIM1#

main69005-20281-04iAT150,ST150..5D..(EXA,EXS,GX)198604-198703

BLUE,BLUE,TRIM8#

main69005-20282-02iAT150,ST150..5D..(EXA,EXS,GX)198703-198711

DEEP MAROON,MAROON,TRIM3#

main69005-20282-03iAT150,ST150..5D198703-198711

SHADOW GRAY,GRAY,TRIM1#

main69005-20282-04iAT150,ST150..5D..(EXA,EXS,GX)198703-198711

BLUE,BLUE,TRIM8#

main69005-20290-02iAT150,CT150,ST150..4D..(EXA,EXS,GX,SX)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main69005-20290-03iAT150,CT150,ST150..4D..(EXA,EXS,GX,SX)198310-198508

GRAY,GRAY,TRIM1#

main69005-20290-04iAT150,CT150,ST150..4D..(EXA,EXS,GX,SX)198310-198508

BLUE,BLUE,TRIM8#

main69005-20310-02iAT150..DX198310-198604

DEEP MAROON,RED/MAROON,TRIM3#

main69005-20310-03iAT150..DX198310-198604

SHADOW GRAY,GRAY,TRIM1#

main69005-20310-04iAT150..DX198310-198508

BLUE,BLUE,TRIM8#

main69005-20310-14iAT150..DX198508-198604

BLUE,BLUE,TRIM8#

main69005-20311-02iAT150..DX198604-198703

DEEP MAROON,MAROON,TRIM3#

main69005-20311-03iAT150..DX198604-198703

SHADOW GRAY,GRAY,TRIM1#

main69005-20311-04iAT150..DX198604-198703

BLUE,BLUE,TRIM8#

main69005-20312-02iAT150..DX198703-198711

DEEP MAROON,MAROON,TRIM3#

main69005-20312-03iAT150..DX198703-198711

SHADOW GRAY,GRAY,TRIM1#

main69005-20312-04iAT150..DX198703-198711

BLUE,BLUE,TRIM8#

main69005-20320iAT150..STD198310-198604

main69005-20321iAT150..STD198604-198703

main69005-20322iAT150..STD198703-198711

main69005-20510-02iAT150,CT150,ST150..4D..(EXA,EXS,GX)198508-198604

MAROON,MAROON,TRIM3#

main69005-20510-03iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198508-198604

GRAY,GRAY,TRIM1#

main69005-20510-04iAT150,CT150,ST150..4D..(EXA,EXS,GX)198508-198604

BLUE,BLUE,TRIM8#

main69005-20511-02iAT150,CT150,ST150..4D..(EXA,EXS,GX)198604-198703

MAROON,MAROON,TRIM3#

main69005-20511-03iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198604-198703

GRAY,GRAY,TRIM1#

main69005-20511-04iAT150,CT150,ST150..4D..(EXA,EXS,GX)198604-198703

BLUE,BLUE,TRIM8#

main69005-20512-02iAT150,CT150,ST150..4D..(EXA,EXS,GX)198703-198711

MAROON,MAROON,TRIM3#

main69005-20512-03iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198703-198711

GRAY,GRAY,TRIM1#

main69005-20512-04iAT150,CT150,ST150..4D..(EXA,EXS,GX)198703-198711

BLUE,BLUE,TRIM8#

69503AKEY, BLANK

main90999-00066iAT150,CT150,ST150,16#198301-198711

main90999-00068iAT150,CT150,ST150,16#198301-198711

main90999-00104iAT150,CT150,ST150,16#198604-198711

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010×2iAT150,CT150,ST150,16#198310-198711

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iAT150..DX,STD198310-198711

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69501-16010iAT150,ST150..5D198301-198711

main69561-12150iAT150,CT150,ST150..4D198310-198405

main69561-20050iAT150,CT150,ST150,16#..4D198405-198711

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iAT150..DX,STD198310-198711

69685PAD, LOCK CYLINDER

main69513-32010×2iAT150,CT150,ST150,16#198301-198711

69689PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69563-32010iAT150,CT150,ST150,16#198301-198711

9015140005

main90151-40005

18 parts on this diagram · 1 diagram in section
