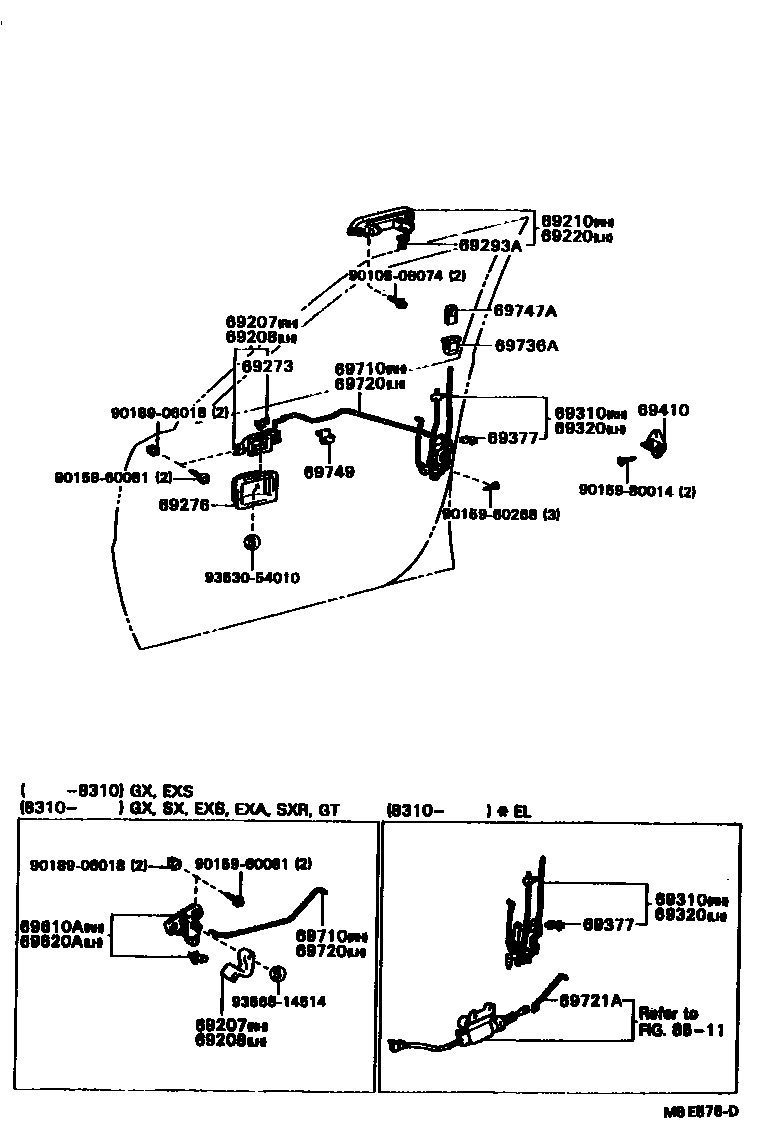

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-02iAT150..DX198406-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub69205-12070

main69205-12070-03iAT150..DX,STD198406-198711

SHADOW GRAY,GRAY,TRIM1#

sub69205-12070

main69205-12070-04iAT150..DX198406-198508

BLUE,BLUE,TRIM8#

sub69205-12070

main69205-12070-44iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

sub69205-12070

main69205-20030-02iST150..DX,GX198301-198406

DEEP MAROON,RED/MAROON,TRIM3#

sub69205-12070

main69205-20030-03iST150..DX,GX198301-198406

SHADOW GRAY,GRAY,TRIM1#

sub69205-12070

main69205-20030-04iAT150..DX198310-198406

BLUE,BLUE,TRIM8#

sub69205-12070

main69271-20060-02iAT150,CT150,ST150..EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main69271-20060-03iAT150,CT150,ST150..EXS,GX,SX198301-198508

SHADOW GRAY,GRAY,TRIM1#

main69271-20060-04iAT150,CT150,ST150..EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main69271-20070-02iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,DEEP MAROON,RED/MAROON,TRIM3#

main69271-20070-02iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main69271-20070-03iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,SAHDOW GRAY,GRAY,TRIM1#

main69271-20070-03iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main69271-20070-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main69271-20071-02iAT150,CT150,ST150..4D..GX198612-198711

SELECT SALOON,MAROON

main69271-20071-02iCT150,ST150..EXA,EXS198508-198711

W/*EL,MAROON,MAROON,TRIM3#

main69271-20071-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main69271-20071-04iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

main69271-20100-02iAT150,CT150,ST150..EXS,GX198508-198711

MAROON,MAROON,TRIM3#

main69271-20100-03iAT150,CT150,ST150,162..EXS,GT,GX,SX198508-198711

GRAY,GRAY,TRIM1#

main69271-20100-04iAT150,CT150,ST150..EXS,GX198508-198711

BLUE,BLUE,TRIM8#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-02iAT150..DX198406-198711

DEEP MAROON,RED/MAROON,TRIM3#

main69206-12070-03iAT150..DX,STD198406-198711

SHADOW GRAY,GRAY,TRIM1#

main69206-12070-04iAT150..DX198406-198508

BLUE,BLUE,TRIM8#

main69206-12070-44iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

main69206-20030-02iST150..DX,GX198301-198406

DEEP MAROON,RED/MAROON,TRIM3#

sub69206-12070

main69206-20030-03iAT150..DX,STD198301-198406

SHADOW GRAY,GRAY,TRIM1#

sub69206-12070

main69206-20030-04iAT150..DX198310-198406

BLUE,BLUE,TRIM8#

sub69206-12070

main69272-20030-02iAT150,CT150,ST150..EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main69272-20030-03iST150..EXS198301-198508

SHADOW GRAY,GRAY,TRIM1#

main69272-20030-04iAT150,CT150,ST150..EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main69272-20040-02iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main69272-20040-02iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,DEEP MAROON,RED/MAROON,TRIM3#

main69272-20040-03iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main69272-20040-03iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main69272-20040-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main69272-20041-02iCT150,ST150..EXA,EXS198508-198711

W/*EL,MAROON,MAROON,TRIM3#

main69272-20041-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main69272-20041-04iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

main69272-20070-02iAT150,CT150,ST150..EXS,GX198508-198711

MAROON,MAROON,TRIM3#

main69272-20070-03iAT150,CT150,ST150,162..EXS,GT,GX,SX198508-198711

GRAY,GRAY,TRIM1#

main69272-20070-04iAT150,CT150,ST150..EXS,GX198508-198711

BLUE,BLUE,TRIM8#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20090iAT150,ST150..5D198301-198711

main69210-20100iAT150,CT150,ST150,16#..4D198310-198711

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20090iAT150,ST150..5D198301-198711

main69220-20100iAT150,CT150,ST150,16#..4D198310-198711

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iAT150,CT150,ST150,16#198301-198711

RH

main69759-20070iAT150,CT150,ST150,16#198301-198711

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-04iAT150..DX198310-198508

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-12iST150..DX,GX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-32020

sub69277-89104

main69277-32020-33iST150..DX,GX198301-198711

SHADOW GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-34iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-16050iAT150,ST150..5D198301-198711

LH

main69293-16050iAT150,CT150,ST150,16#..4D198310-198711

RH

main69293-16060iAT150,ST150..5D198301-198711

RH

main69293-16060iAT150,CT150,ST150,16#..4D198310-198711

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-20160iST150198301-198310

sub69310-20250

main69310-20230iAT150,CT150,ST150..4D..GX198605-198608

GX EXTRA SALOON,W/*EL

sub69310-20370

main69310-20230iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL AT

sub69310-20370

main69310-20230iAT150,CT150,ST150..4D..GX198608-198612

SELECT SALOON,W/*EL

sub69310-20370

main69310-20250iAT150,CT150,ST150,162..DX,EXS,GT,GX,STD,SX198310-198711

main69310-20370iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL

main69310-20370iAT150,CT150,ST150..4D..GX198612-198711

SELECT SALOON,W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-20180iST150198301-198310

sub69320-20250

main69320-20190iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198310-198711

W/*EL

main69320-20190iAT150,CT150,ST150..4D..GX198605-198608

GX EXTRA SALOON,W/*EL

main69320-20190iAT150,CT150,ST150..4D..GX198608-198711

SELECT SALOON,W/*EL

main69320-20250iAT150,CT150,ST150,162..DX,EXS,GT,GX,STD,SX198310-198711

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20040iAT150,CT150,ST150,16#198301-198711

YELLOW

main69759-20050iAT150,CT150,ST150,16#198301-198711

BROWN

main69759-20100iAT150,CT150,ST150,16#198301-198711

RH,RED

main69759-20110iAT150,CT150,ST150,16#198301-198711

LH,BLACK

main69759-24010iAT150,CT150,ST150,16#198301-198711

RH,NATURAL

main69759-24020iAT150,CT150,ST150,16#198301-198711

LH,NATURAL

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAT150,CT150,ST150,16#198301-198711

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-20070iST150..EXS198301-198711

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-20040iST150..EXS198301-198711

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-20050iST150..EXS198301-198711

main69711-20060iST150..DX,GX198301-198711

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-20050iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198301-198711

main69712-20060iST150..DX,GX198301-198711

69721ALINK, FRONT DOOR LOCK ACTUATOR

main69721-20020iAT150,CT150,ST150..EXA,EXS,SX198310-198711

W/*EL

main69721-20020iAT150,CT150,ST150..4D..GX198605-198608

GX EXTRA SALOON,W/*EL

main69721-20020iAT150,CT150,ST150..4D..GX198608-198711

SELECT SALOON,W/*EL

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198408-198711

main69736-22021iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198408

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

sub69741-32010

sub69741-90K00

main69741-32010-12iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub69741-32010

sub69741-90K00

main69741-32010-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

GRAY,BLUE,TRIM1#

sub69741-32010

sub69741-90K00

main69741-32010-23iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

sub69741-32010

sub69741-90K00

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010iAT150,CT150,ST150,16#198301-198711

8511

9010506074

main90105-06074

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9018906018

main90189-06018

9353054010

main93530-54010

9356814514

main93568-14514

27 parts on this diagram · 1 diagram in section
