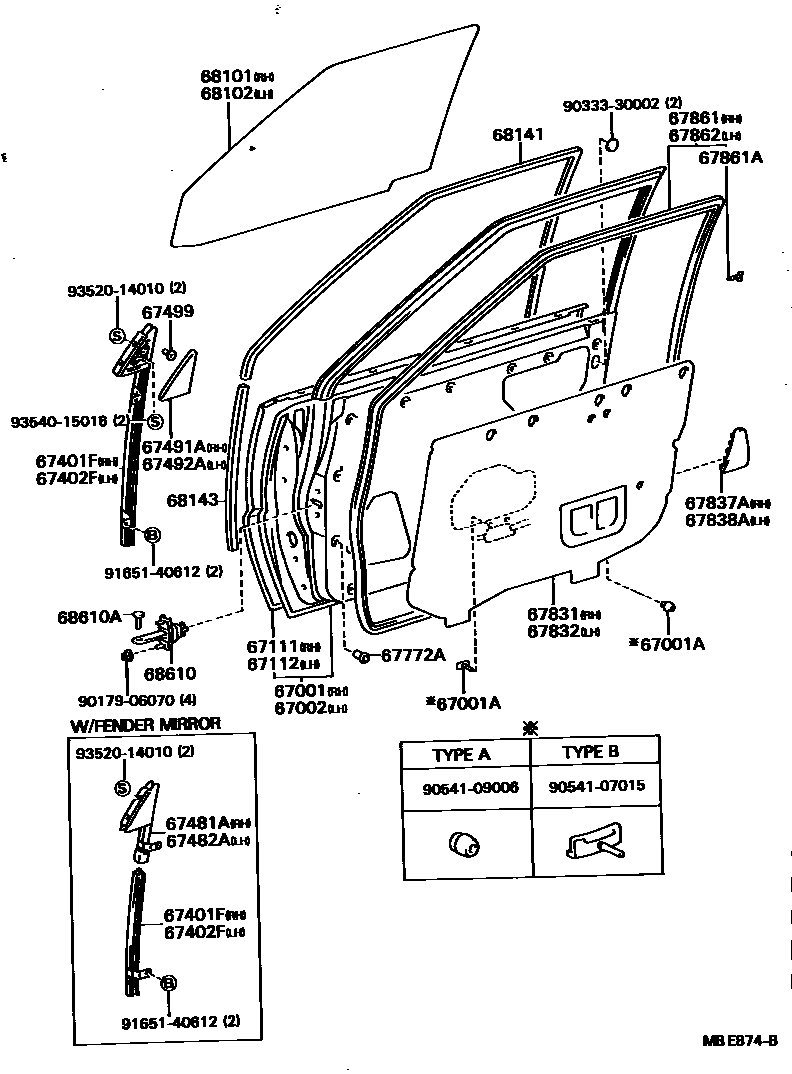

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20400iAT150,CT150,ST150,16#198301-198512

sub67001-20530

main67001-20530iAT150,CT150,ST150,16#198512-198711

67001ACUSHION, FRONT DOOR PANEL

main90541-07015iAT150,CT150,ST150,16#198301-198711

TYPE B

main90541-09006iAT150,CT150,ST150,16#198301-198711

TYPE A

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20370iAT150,CT150,ST150,16#198301-198512

sub67002-20500

main67002-20500iAT150,CT150,ST150,16#198512-198711

67111PANEL, FRONT DOOR, OUTER RH

main67111-20190iAT150,CT150,ST150198301-198408

sub67111-20240

main67111-20240iAT150,CT150,ST150,16#198408-198711

67112PANEL, FRONT DOOR, OUTER LH

main67112-20210iAT150,CT150,ST150198301-198408

sub67112-20260

main67112-20260iAT150,CT150,ST150,16#198408-198711

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20120iAT150,CT150,ST150,16#198301-198711

W/O *DM

main67401-20130iAT150,CT150,ST150198310-198508

W/*DM

sub67401-20150

main67401-20150iAT150,CT150,ST150..EXA,EXS,GX,SX198412-198711

W/*DM

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20110iAT150,CT150,ST150,16#198301-198711

W/O *DM

main67402-20120iAT150..DX,STD198310-198508

W/*DM

sub67402-20140

main67402-20140iAT150,CT150,ST150..EXA,EXS,GX,SX198412-198711

W/*DM

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-20070iAT150,CT150,ST150,16#198301-198711

W/O *DM

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-20040iAT150,CT150,ST150,16#198301-198711

W/O *DM

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20050iAT150,CT150,ST150,162..DX,GT,GX,STD,SX198310-198711

main67491-20070iAT150,CT150,ST150,160..EXA,EXS,SXR198310-198711

W/*PW

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20070iAT150,CT150,ST150,162..DX,GT,GX,STD,SX198310-198711

main67492-20090iAT150,CT150,ST150,160..EXA,EXS,SXR198310-198711

W/*PW

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iAT150,CT150,ST150,16#198310-198711

W/*DM

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-20021iAT150,CT150,ST150,16#198301-198711

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20210iAT150,CT150,ST150,16#198301-198711

main67831-20240iAT150,CT150,ST150,16#198312-198711

COLD SPEC

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-20240iAT150,CT150,ST150198312-198508

COLD SPEC

main67832-20060iAT150,CT150,ST150,16#198301-198711

main67832-20150iAT150,CT150,ST150,16#198508-198711

COLD SPEC

67837ASEAL, FRONT DOOR VENT, RH

main67837-20050iAT150,CT150,ST150,16#198301-198711

COLD SPEC

67838ASEAL, FRONT DOOR VENT, LH

main67838-20040iAT150,CT150,ST150,16#198301-198711

COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20190iAT150,CT150,ST150,16#198301-198711

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAT150,CT150,ST150,16#198301-198711

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20190iAT150,CT150,ST150,16#198301-198711

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20300iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198301-198711

*TT,T=3.5

main68111-20310iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198310-198711

*TT,T=3.5,W/*DM

main68111-20320iAT150,CT150,ST150..EXA,EXS198310-198711

BRONZE,T=3.5

main68111-20330iAT150..STD198310-198711

*TEM,T=4.0,W/*DM

main68111-20340iAT150..STD198310-198711

*TEM,T=3.5

sub68111-20300

main68111-20350iAT150,CT150,ST150..EXA,EXS198310-198711

BRONZE,T=4.0,W/*DM

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20220iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198301-198711

*TT,T=3.5

main68112-20230iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198310-198711

*TT,T=3.5,W/DOOR MIRROR

main68112-20240iST150..EXA198310-198711

BRONZE,T=3.5

main68112-20250iAT150..STD198310-198711

*TEM,T=4.0,W/*DM

sub68112-20230

main68112-20260iAT150..STD198310-198711

*TEM,T=3.5

sub68112-20220

main68112-20270iST150..EXA198310-198711

BRONZE,T=4.0,W/*DM

68141RUN, FRONT DOOR GLASS

main68141-20130iAT150,CT150,ST150,16#198301-198711

main68141-20140iAT150,CT150,ST150,16#198310-198711

W/*DM

68143RUN, FRONT DOOR GLASS, LOWER

main68143-20040iAT150,CT150,ST150,16#198301-198711

sub68143-32030

68610CHECK ASSY, FRONT DOOR

main68610-20030iAT150,CT150,ST150,16#198301-198711

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iAT150,CT150,ST150198407-198507

sub68617-90A00

main68617-22010iAT150,CT150,ST150198301-198407

sub68617-12010

main68617-90A00iAT150,CT150,ST150,16#198507-198711

9017906070

main90179-06070

9033330002

main90333-30002

9054107015

main90541-07015

9054109006

main90541-09006

9165140612

main91651-40612

9352014010

main93520-14010

9354015016

main93540-15016

33 parts on this diagram · 3 diagrams in section
