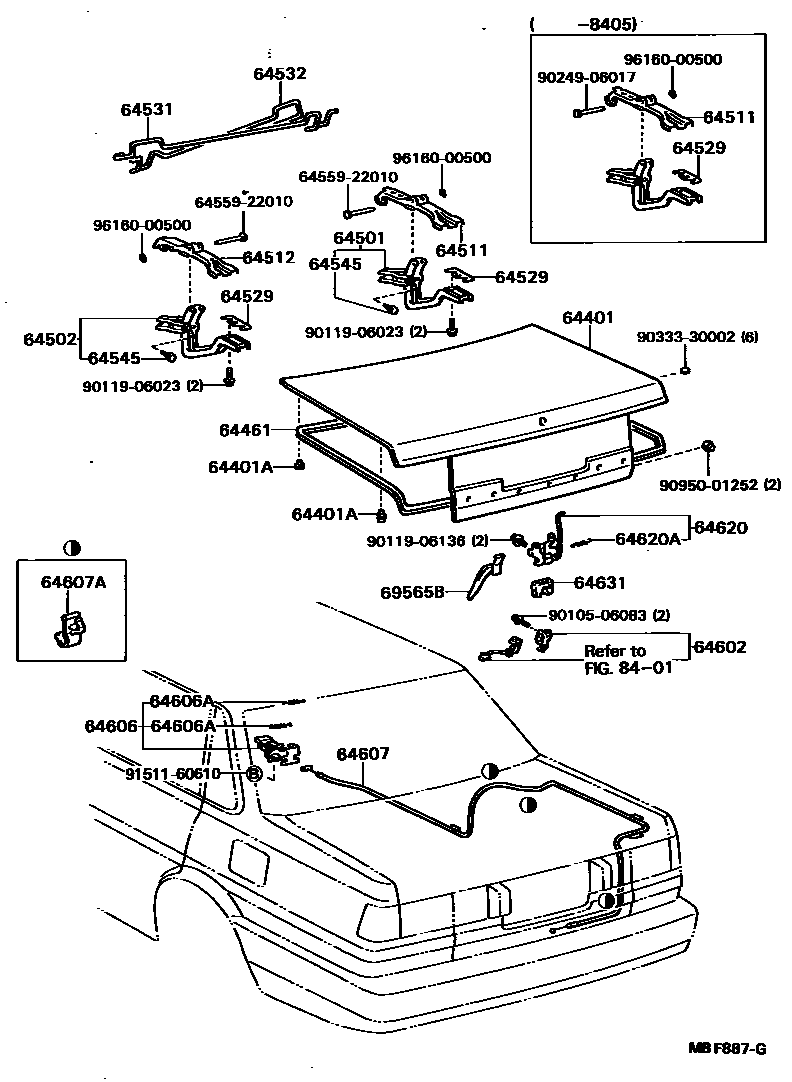

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20710iAT150,CT150,ST150..4D198310-198508

main64401-2B130iAT150,CT150,ST150,16#..4D198508-198711

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iAT150,CT150,ST150,16#..4D198310-198711

FR

main90541-09041×4iAT150,CT150,ST150,16#..4D198310-198711

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20150iAT150,CT150,ST150,16#..4D198310-198711

main64461-20250iAT150,CT150,ST150,16#..4D198508-198601

COLD SPEC

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20100iAT150,CT150,ST150,16#..4D198310-198711

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-20100iAT150,CT150,ST150,16#..4D198310-198711

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20070iAT150,CT150,ST150,16#..4D198310-198711

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20070iAT150,CT150,ST150,16#..4D198310-198711

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAT150,CT150,ST150,16#..4D198310-198711

T=1.0

main64529-20020×2iAT150,CT150,ST150,16#..4D198410-198711

W/SPOILER,T=0.9

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20100iAT150,CT150,ST150,16#..4D198310-198711

main64531-20120iAT150,CT150,ST150,16#..4D198410-198711

W/SPOILER

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20100iAT150,CT150,ST150,16#..4D198310-198711

main64532-20120iAT150,CT150,ST150,16#..4D198410-198711

W/SPOILER

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07016×2iAT150,CT150,ST150,16#..4D198310-198711

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iAT150,CT150,ST150..4D..(EXA,EXS)198310-198508

main64620-20050iAT150,CT150,ST150..4D..(EXA,EXS); ST162198508-198711

GT-R PACKAGE

main64621-12060iAT150,CT150,ST150,16#..4D..(DX,GT,GX,STD,SX,SXR)198310-198711

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-14030iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198310-198711

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198310-198711

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20120iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198310-198711

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×4iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198310-198711

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20050iAT150,CT150,ST150198310-198508

main64610-20110iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198508-198711

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAT150,CT150,ST150,16#..4D198310-198711

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAT150,CT150,ST150..4D198310-198403

main64631-91D01iAT150,CT150,ST150,16#..4D198403-198711

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12010iAT150,CT150,ST150,16#..4D198310-198711

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6455922010PIN, LUGGAGE DOOR HINGE

main64559-22010

9010506083

main90105-06083

9011906023

main90119-06023

9011906136

main90119-06136

9024906017

main90249-06017

9033330002

main90333-30002

9095001252

main90950-01252

9151160610

main91511-60610

9616000500

main96160-00500

30 parts on this diagram · 1 diagram in section
