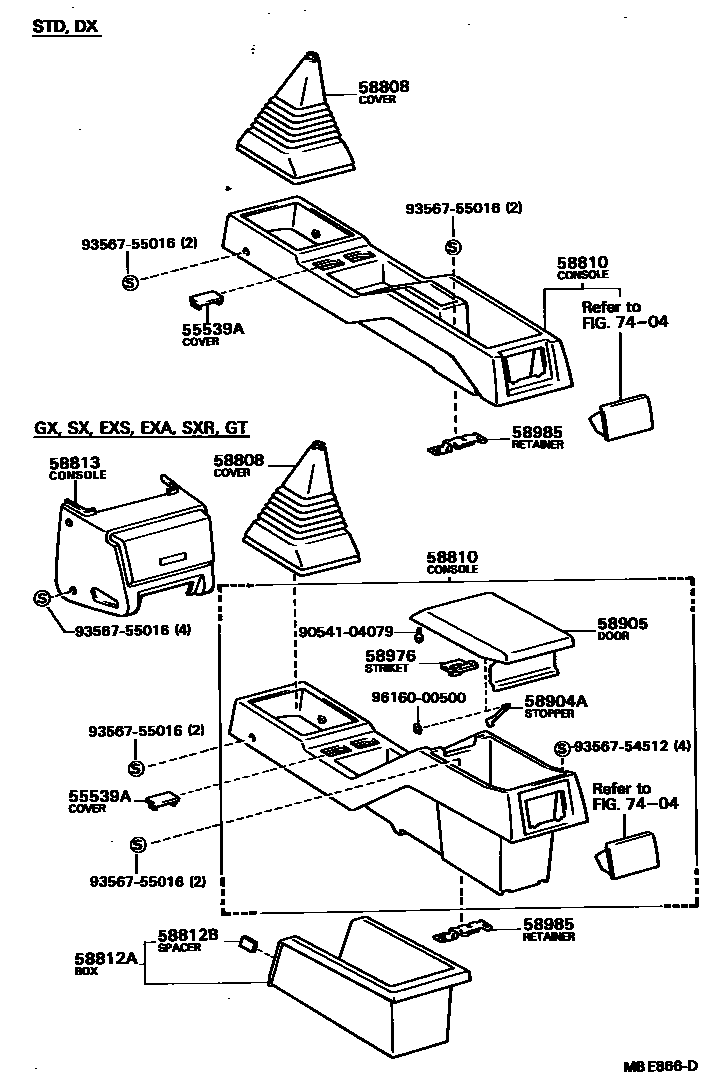

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-04×2iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55539-24010-12×2iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55539-24010-13×2iAT150,CT150,ST150198301-198508

SHADOW GRAY,GRAY,TRIM1#

main55539-24010-24iAT150,CT150,ST150..EXA,EXS,GX198508-198711

BLUE,DEEP BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20040-02iAT150,CT150,ST150..MTM..(DX,EXA,EXS,GX,SX)198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58808-20040-03iAT150,CT150,ST150,16#..MTM198301-198711

SHADOW GRAY,GRAY,TRIM1#

main58808-20040-04iAT150,CT150,ST150..MTM..(DX,EXA,EXS,GX,SX)198310-198508

BLUE,BLUE,TRIM8#

main58808-20040-14iAT150,CT150,ST150..MTM..(DX,EXA,EXS,GX)198508-198711

BLUE,BLUE,TRIM8#

58810CONSOLE ASSY

main58801-20070-02iAT150,ST150..DX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main58801-20070-03iAT150,ST150..DX,STD198301-198711

SHADOW GRAY,GRAY,TRIM1#

main58801-20070-04iAT150..DX198310-198508

BLUE,BLUE,TRIM8#

main58801-20070-14iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

main58801-20080-02iST150..EXS,GX198301-198302

DEEP MAROON,RED/MAROON,TRIM3#

main58801-20080-03iST150..EXS,GX198301-198302

SHADOW GRAY,GRAY,TRIM1#

main58801-20081-02iAT150,CT150,ST150..EXA,EXS,GX,SX198302-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58801-20081-03iAT150,CT150,ST150..EXA,EXS,GX,SX198302-198508

SHADOW GRAY,GRAY,TRIM1#

main58801-20081-04iAT150,CT150,ST150..EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main58801-20082-02iAT150,CT150,ST150..EXA,EXS,GX198508-198711

MAROON,MAROON,TRIM3#

main58801-20082-03iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198508-198711

GRAY,GRAY,TRIM1#

main58801-20082-04iAT150,CT150,ST150..EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

58812ABOX, CONSOLE, LOWER

main58812-20030-02iCT150,ST150..EXA,EXS198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main58812-20030-03iAT150,CT150,ST150..EXA,EXS; ST162198508-198711

GT-R PACKAGE,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main58812-20030-04iAT150,ST150..4D..GX198409-198508

GX EXTRA,BLUE,BLUE,TRIM8#

main58812-20030-14iAT150,CT150,ST150..EXA,EXS198508-198711

BLUE,BLUE,TRIM8#

58812BSPACER, CONSOLE BOX, LOWER

main55457-22030×2iCT150,ST150..EXA,EXS198301-198503

58813BOX, CONSOLE, UPPER

main58810-20390-02iAT150,CT150,ST150..EXA,EXS,GX198508-198711

MAROON,MAROON,TRIM3#

main58810-20390-03iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198508-198711

GRAY,GRAY,TRIM1#

main58810-20390-04iAT150,CT150,ST150..EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58964-20010iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198301-198711

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20040-02iST150..EXS,GX198301-198302

DEEP MAROON,RED/MAROON,TRIM3#

main58905-20040-03iST150..EXS,GX198301-198302

SHADOW GRAY,GRAY,TRIM1#

main58905-20041-02iAT150,CT150,ST150..EXA,EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main58905-20041-03iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198302-198711

SHADOW GRAY,GRAY,TRIM1#

main58905-20041-04iAT150,CT150,ST150..EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main58905-20041-14iAT150,CT150,ST150..EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198301-198711

58985RETAINER, CONSOLE BOX

main58985-20020iAT150,CT150,ST150,16#198301-198711

7404ASH RECEPTACLE

→ Go to FIG 74-04

9054104079

main90541-04079

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

15 parts on this diagram · 1 diagram in section
