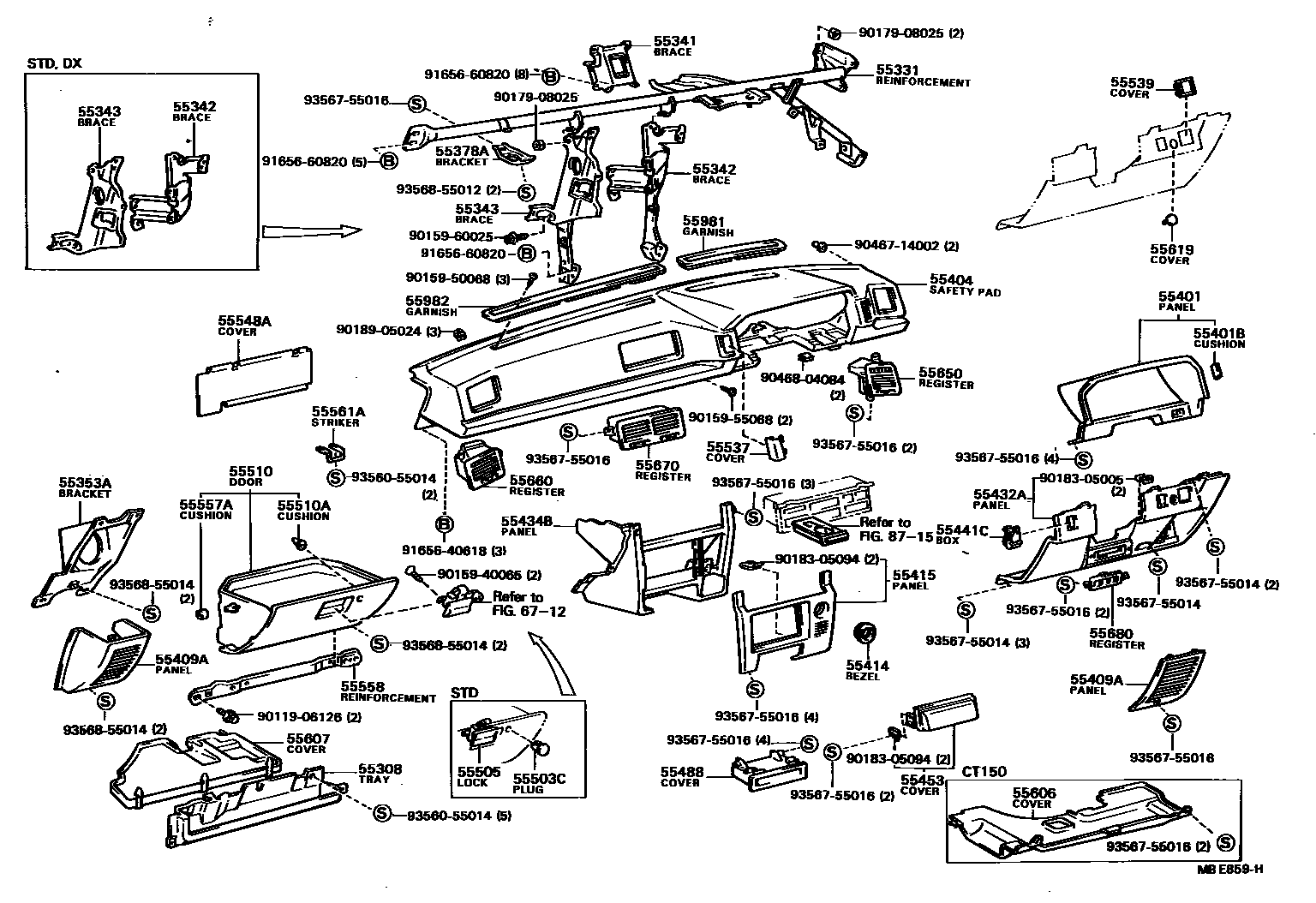

INSTRUMENT PANEL & GLOVE COMPARTMENT

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-20060-02iAT150,CT150,ST150..DX,EXA,EXS,GX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55611-20060-03iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55611-20060-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198711

BLUE,BLUE,TRIM8#

main55611-20060-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20010iST150198301-198310

main55330-20050iAT150,CT150,ST150198310-198508

main55330-20051iAT150,CT150,ST150,16#198508-198711

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-20080iST150198301-198310

main55341-20081iAT150,CT150,ST150,16#198310-198711

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-20080iAT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198508-198711

main55351-20040iAT150,CT150,ST150198301-198508

main55351-20090iAT150..DX,STD198508-198711

55343BRACE, INSTRUMENT PANEL, NO.3

main55307-20080iAT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198508-198711

main55352-20040iST150198301-198310

main55352-20060iAT150,CT150,ST150198310-198508

main55352-20061iAT150..DX,STD198508-198711

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-20030iAT150,CT150,ST150,16#198301-198711

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-20060iAT150,CT150,ST150,16#198301-198711

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-20140iAT150,CT150,ST150,16#198301-198711

main55404-20150iST150;AT150..EXS198310-198711

W/DIGITAL SPEED MATER

main55404-20150iST150..GX198301-198310

EXTRA

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55629-14010iAT150,CT150,ST150198301-198410

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20440-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55401-20440-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55401-20440-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55401-20440-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-20060-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

RH,DEEP MAROON,RED/MAROON,TRIM3#

main55472-20060-03iAT150,CT150,ST150,16#198301-198711

RH,SHADOW GRAY,GRAY,TRIM1#

main55472-20060-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

RH,BLUE,BLUE,TRIM8#

main55472-20060-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

RH,BLUE,BLUE,TRIM8#

main55473-20050-02iAT150,CT150,ST150..DX,EXA,EXS,GX198301-198711

LH,DEEP MAROON,RED/MAROON,TRIM3#

main55473-20050-03iAT150,CT150,ST150,16#198301-198711

LH,SHADOW GRAY,GRAY,TRIM1#

main55473-20050-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

LH,BLUE,BLUE,TRIM8#

main55473-20050-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

LH,BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-20050iAT150,CT150,ST150,16#198301-198711

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20230-02iAT150,CT150,ST150..DX,EXA,EXS,GX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55412-20230-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55412-20230-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55412-20230-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20150-02iAT150,CT150,ST150..DX,EXA,EXS,GX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55432-20150-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55432-20150-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55432-20150-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20030-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main55434-20030-03iAT150,CT150,ST150198301-198508

SHADOW GRAY,GRAY,TRIM1#

main55434-20030-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55434-20090-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

MAROON,MAROON,TRIM3#

main55434-20090-03iAT150,CT150,ST150,16#198508-198711

GRAY,GRAY,TRIM1#

main55434-20090-04iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55441-20140-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55441-20140-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55441-20140-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198610

BLUE,BLUE,TRIM8#

main55441-20140-24iAT150,CT150,ST150..DX,EXA,EXS,GX198610-198711

BLUE,DEEP BLUE,TRIM8#

55453COVER, RADIO TUNER OPENING

main55522-20050iAT150..STD198310-198711

55488COVER, STEREO OPENING

main55521-16010iAT150,CT150,ST150,16#..DX,EXS,GT,GX,STD,SX,SXR198301-198711

55503CPLUG, HOLE(FOR GLOVE COMPARTMENT)

main55464-14010-03iAT150..STD198310-198711

SHADOW GRAY,GRAY,TRIM1#

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-13iAT150..STD198310-198711

SHADOW GRAY,GRAY,TRIM1#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20060-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55550-20060-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55550-20060-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55550-20060-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAT150,CT150,ST150,16#198301-198711

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55537-20030-03iAT150..STD198310-198711

SHADOW GRAY,GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main74267-24010-03iAT150,CT150,ST150198301-198711

SHADOW GRAY,GRAY,TRIM1#

main74267-24010-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main74267-24010-12iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74267-24010-14iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-20040iAT150,CT150,ST150,16#198301-198711

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iAT150,CT150,ST150198301-198503

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-20010iAT150,CT150,ST150,16#..DX,EXA,EXS,GT,GX,SX,SXR198301-198711

W/UNDER TRAY

main55558-20030iAT150..STD198310-198711

W/O UNDER TRAY

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iAT150,CT150,ST150,16#198301-198711

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20070iCT150198310-198711

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-20030iCT150,ST162;ST150..EXA,EXS198301-198711

55619COVER, SWITCH HOLE

main55619-14010-12iAT150,CT150,ST150..DX,EXA,EXS,GX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55619-14010-13iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55619-14010-14iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55619-14010-24iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,DEEP BLUE,TRIM8#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20090-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55650-20090-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55650-20090-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55650-20090-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20030-02iAT150,CT150,ST150..DX,EXA,EXS,GX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55660-20030-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55660-20030-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55660-20030-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20020-02iST150198301-198310

DEEP MAROON,RED/MAROON,TRIM3#

main55670-20020-03iST150198301-198310

SHADOW GRAY,GRAY,TRIM1#

main55670-20030-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55670-20030-03iAT150,CT150,ST150,16#198310-198711

SHADOW GRAY,GRAY,TRIM1#

main55670-20030-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55670-20030-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iAT150,CT150,ST150,16#198301-198711

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20030-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55981-20030-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55981-20030-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55981-20030-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20030-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198711

DEEP MAROON,RED/MAROON,TRIM3#

main55982-20030-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main55982-20030-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main55982-20030-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

6712LOCK CYLINDER SET

→ Go to FIG 67-12

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9011906126

main90119-06126

9015940065

main90159-40065

9015950068

main90159-50068

9015955068

main90159-55068

9015960025

main90159-60025

9017908025

main90179-08025

9018305005

main90183-05005

9018305094

main90183-05094

9018905024

main90189-05024

9046714002

main90467-14002

9046804084

main90468-04084

9165640618

main91656-40618

9165660820

main91656-60820

9356055014

main93560-55014

9356755014

main93567-55014

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

57 parts on this diagram · 1 diagram in section
