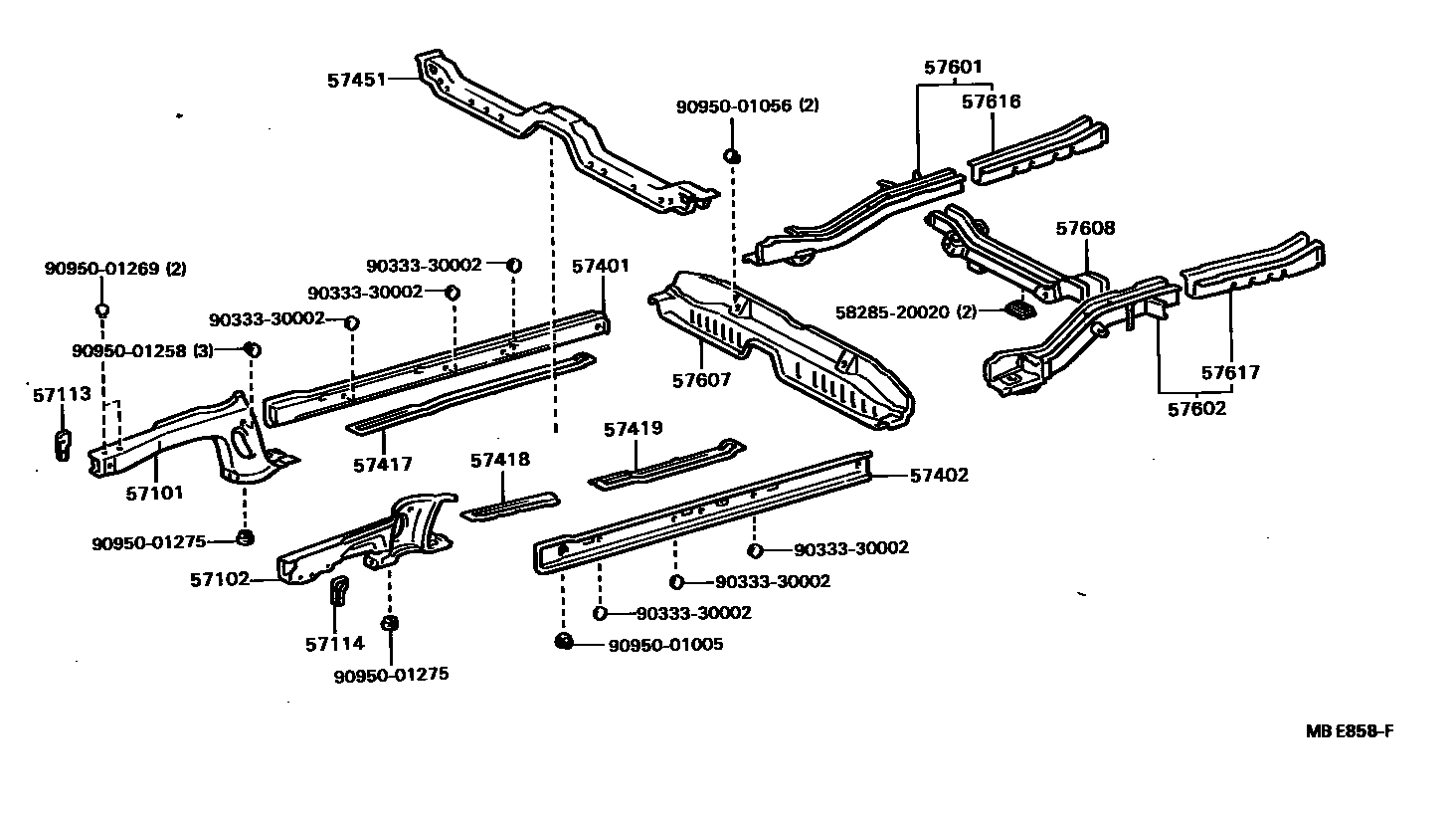

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20330iST150198301-198310

main57101-20350iCT150,ST150198310-198312

main57101-20360iAT150198310-198312

main57101-20400iCT150,ST150198312-198711

main57101-20410iAT150198312-198711

main57101-20480iST16#198508-198711

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20310iST150198301-198310

main57102-20320iCT150,ST150198310-198312

main57102-20330iAT150198310-198312

main57102-20380iCT150,ST150198312-198711

main57102-20390iAT150198312-198711

main57102-20460iST16#198508-198711

57113EXTENSION, FRONT SIDE MEMBER, RH

main57105-20050iST16#198508-198711

main57113-12090iAT150,CT150,ST150198310-198711

main57113-20060iST150198301-198310

57114EXTENSION, FRONT SIDE MEMBER, LH

main57106-20050iST16#198508-198711

main57114-12090iAT150,CT150,ST150198310-198711

main57114-20040iST150198301-198310

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20180iAT150,CT150,ST150198301-198505

main57401-20190iAT150,CT150,ST150,16#198505-198711

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20180iAT150,CT150,ST150198301-198505

main57402-20190iAT150,CT150,ST150,16#198505-198711

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iAT150,CT150,ST150,16#198301-198711

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20030iST150198301-198310

main57418-20040iAT150,CT150,ST150,16#198310-198711

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-20020iAT150,CT150,ST150,16#198301-198711

57451MEMBER, FRONT FLOOR CROSS

main57408-20010iAT150,CT150,ST150,16#198301-198711

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20130iST16#198508-198711

main57601-20140iAT150..5D;ST150..5D..GX;ST150..DX,EXA,EXS,SX;AT150,CT150..4D..EXS198301-198711

main57601-20150iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20130iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

main57602-20140iAT150..5D;ST150..5D..GX;ST150..DX,EXA,EXS,SX;AT150,CT150..4D..EXS198301-198711

main57602-20150iST16#198508-198711

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-32010iAT150,CT150,ST150,16#198301-198711

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-20060iAT150,CT150,ST150,16#198301-198711

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-20902iST16#198508-198711

main57615-32901iAT150,CT150,ST150198301-198711

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-20902iST16#198508-198711

main57616-32901iAT150,CT150,ST150198301-198711

5828520020PLATE, PARKING BRAKE DUST SET

main58285-20020

9033330002

main90333-30002

9095001005

main90950-01005

9095001056

main90950-01056

9095001258

main90950-01258

9095001269

main90950-01269

9095001275

main90950-01275

23 parts on this diagram · 1 diagram in section
