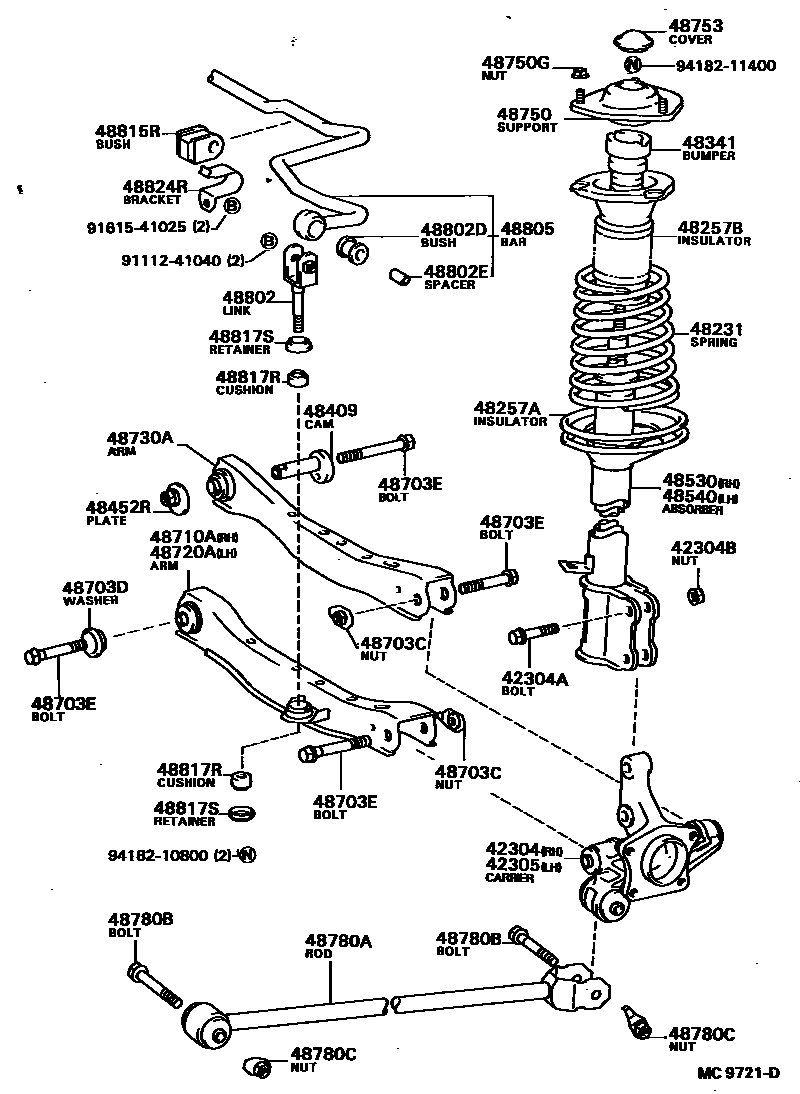

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20010iST160198508-198708

main42304-20020iST162198508-198708

main42304-32010iAT150,CT150,ST150198301-198711

main42304-32020iST160198708-198711

main42304-32030iST162198708-198711

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-12042iAT150,CT150,ST150,16#198301-198711

sub90105-12263

main90105-15001iST16#198708-198711

42304BNUT (FOR REAR AXLE CARRIER)

main90179-12025iAT150,CT150,ST150,16#198301-198711

main90179-15001iST16#198708-198711

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20010iST160198508-198708

main42305-20020iST162198508-198708

main42305-32010iAT150,CT150,ST150198301-198711

main42305-32020iST160198708-198711

main42305-32030iST162198708-198711

48231SPRING, COIL, REAR

main48231-20190iST150..DX,GX198301-198711

sub48231-20200

main48231-20210iST150..EXS198301-198711

main48231-20250iAT150,CT150,ST150..4D..(CBR,CI,DSL)198310-198711

main48231-20370iST150..5D..EFI198310-198711

main48231-20490iST160198508-198711

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-16010iAT150,CT150,ST150,16#198301-198711

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-32030iAT150,CT150,ST150,16#198301-198711

48341BUMPER, REAR SPRING

main48341-20090iST16#198508-198711

main48341-32020iAT150,CT150,ST150198301-198711

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-20020iST16#198508-198711

main48409-32010iAT150,CT150,ST150198301-198711

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32010iAT150,CT150,ST150,16#198301-198711

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20010iAT150,ST150..5D..(CBR,CI)198301-198711

sub48530-20030

main48530-20030iAT150..4D198310-198711

main48530-20050iCT150,ST150..4D198310-198711

sub48530-20030

main48530-20070iST150..5D198310-198711

sub48530-20030

main48530-20150iST16#198508-198708

sub48530-20130

main48530-20161iST16#198708-198711

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20010iAT150,ST150..5D..(CBR,CI)198301-198711

sub48540-20030

main48540-20030iAT150..4D198310-198711

main48540-20050iCT150,ST150..4D198310-198711

sub48540-20030

main48540-20070iST150..5D198310-198711

sub48540-20030

main48540-20150iST16#198508-198708

sub48540-20130

main48540-20161iST16#198708-198711

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12023iAT150,CT150,ST150198301-198608

ARM NO.1 X CARRIER,ARM NO.2

main90179-12033iAT150,CT150,ST150198301-198508

ARM NO.1 X BODY

main90179-12049iAT150,CT150,ST150,16#198508-198608

ARM NO.1 X BODY

sub90179-12063

main90179-12062iAT150,CT150,ST150198608-198711

ARM NO.1 X CARRIER,ARM NO.2

main90179-12063iAT150,CT150,ST150,16#198608-198711

ARM NO.1 X BODY

main90179-14019iST16#198508-198711

ARM X CARRIER

48703DWASHER(FOR REAR SUSPENSION ARM)

main90201-14017iST16#198508-198711

ARM X CARRIER

main90209-13005iAT150,CT150,ST150198301-198711

ARM NO.1 X BODY

main90209-13008iST16#198508-198711

ARM NO.1 X BODY

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-10052iAT150,CT150,ST150198301-198711

*10-1.25PX77-20,ARM NO.2

main90105-10132iST16#198508-198711

main90105-12035iAT150,CT150,ST150198301-198608

*12-1.25PX78-25,ARM NO.1

main90105-12037iAT150,CT150,ST150198301-198608

*12-1.25PX60-25,ARM NO.2

main90105-12070iAT150,CT150,ST150198608-198711

*12-1.25PX63-25,ARM NO.2

main90105-12117iST16#198508-198608

*12-1.25PX74.5-25,ARM NO.1

sub90105-12147

main90105-12147iAT150,CT150,ST150,16#198608-198711

main90105-14036iST16#198508-198711

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20060iST16#198508-198711

sub48710-20220

main48710-32010iST150..EFI198310-198512

sub48710-32011

main48710-32011iST150..EFI198512-198711

main48710-32020iST150..CBR,CI198301-198512

sub48710-32021

main48710-32021iST150..CI198512-198711

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-32020iST150..CBR,CI198301-198512

sub48710-32021

main48710-32021iST150..CI198512-198711

main48720-20050iST16#198508-198711

sub48720-20090

main48720-32010iST150..EFI198310-198512

sub48720-32011

main48720-32011iST150..EFI198512-198711

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-20010iST16#198508-198711

main48730-32010iAT150,CT150,ST150198301-198512

sub48730-32011

main48730-32011iAT150,CT150,ST150198512-198711

48750SUPPORT ASSY, REAR SUSPENSION

main48750-20010iST16#198508-198711

main48750-32010iAT150,CT150,ST150198301-198711

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08054iAT150,CT150,ST150198301-198506

main90179-08095iAT150,CT150,ST150,16#198506-198604

main90179-08111iAT150,CT150,ST150,16#198604-198711

48753COVER, REAR SUSPENSION SUPPORT

main48753-16010iAT150,CT150,ST150,16#198508-198711

main48753-32010iAT150,CT150,ST150198301-198508

48780AROD ASSY, STRUT, REAR

main48780-20010iAT150,CT150,ST150198301-198711

main48780-20020iST16#198508-198711

48780BBOLT(FOR STRUT ROD)

main90105-12035iAT150,CT150,ST150,16#198301-198608

main90105-12082iAT150,CT150,ST150,16#198608-198702

main90119-12131iAT150,CT150,ST150,16#198702-198711

48780CNUT(FOR STRUT ROD)

main90179-12023iAT150,CT150,ST150,16#198301-198608

CARRIER SIDE

main90179-12033iAT150,CT150,ST150198301-198508

BODY SIDE

main90179-12049iAT150,CT150,ST150,16#198508-198608

BODY SIDE

sub90179-12063

main90179-12062iAT150,CT150,ST150,16#198608-198711

CARRIER SIDE

main90179-12063iAT150,CT150,ST150,16#198608-198711

BODY SIDE

48802LINK SUB-ASSY, STABILIZER

main48802-32010iST150..EFI198310-198711

48802DBUSH, STABILIZER LINK

main90385-11021iST150..EFI198310-198711

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iST150..EFI198310-198711

48805BAR SUB-ASSY, REAR STABILIZER

main48805-20040iST150..5D..EFI198310-198711

CHKK

main48805-20060iST150..5D..EFI198310-198711

NHK

main48805-20100iST150..4D..EFI198310-198711

main48812-20150iST160198508-198711

main48812-20160iST162198508-198711

48815RBUSH, STABILIZER(FOR REAR)

main48818-20040iST150..5D..EFI198310-198711

main48818-20080iST160198508-198711

main48818-20090iST162198508-198711

main48818-32010iST150..4D..EFI198310-198711

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iST150..EFI198310-198711

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iST150..EFI198310-198711

48824RBRACKET, STABILIZER(FOR REAR)

main48832-20020iST16#198508-198711

main48832-32010iST150..EFI198310-198711

9111241040

main91112-41040

9161541025

main91615-41025

9418210800

main94182-10800

9418211400

main94182-11400
