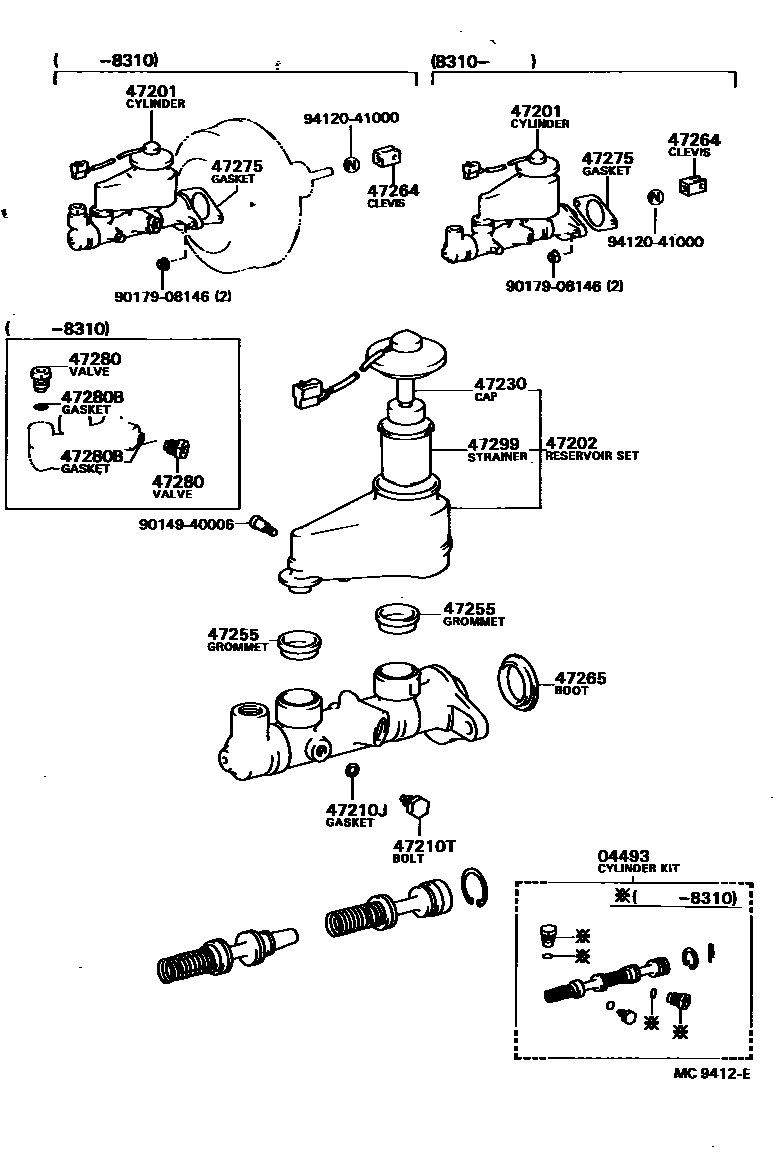

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-12140iAT150,CT150,ST150198310-198711

sub04493-32010

main04493-20130iST16#198508-198711

main04493-32010iST150198301-198310

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-20340iST150198301-198310

main47201-20350iAT150,CT150,ST150198310-198711

main47201-20380iST16#198508-198711

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20230iAT150,CT150,ST150198301-198711

main47202-20270iST16#198508-198711

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT150,CT150,ST150,16#198301-198711

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAT150,CT150,ST150,16#198301-198711

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12070iST16#198508-198711

main84460-20110iAT150,CT150,ST150198301-198505

main84460-20120iAT150,CT150,ST150198505-198711

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iAT150,CT150,ST150,16#198301-198711

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAT150,CT150,ST150,16#198301-198711

47265BOOT, MASTER CYLINDER

main47265-20050iAT150,CT150,ST150,16#198301-198711

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iAT150,CT150,ST150198301-198711

sub47275-26010

main47275-32010iST16#198508-198711

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iST150198301-198310

sub47280-14010

47280BGASKET(FOR BRAKE MASTER CYLINDER OUTLET VALVE)

main90430-09253iST150198301-198310

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iAT150,CT150,ST150,16#198301-198711

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

16 parts on this diagram · 2 diagrams in section
