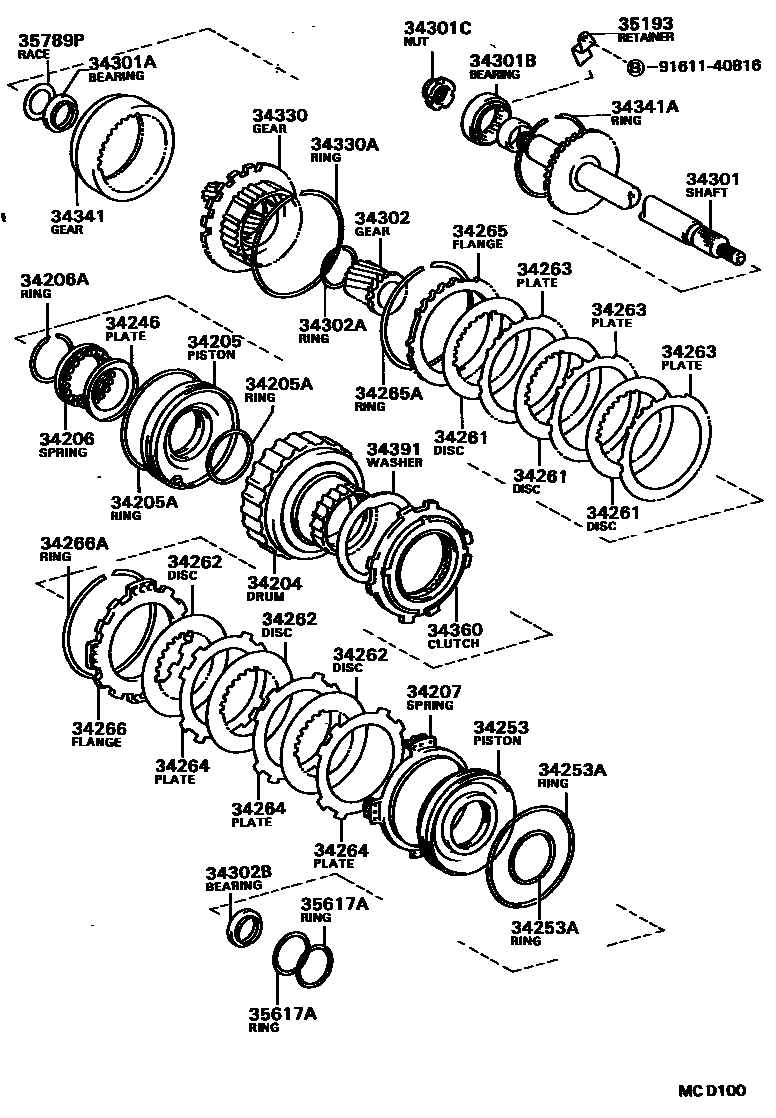

OVERDRIVE GEAR (ATM)
34204DRUM SUB-ASSY, UNDERDRIVE CLUTCH
34205ARING, O (FOR UNDERDRIVE CLUTCH PISTON)
34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
34246PLATE, UNDERDRIVE CLUTCH RETURN SPRING
34253PISTON, UNDERDRIVE BRAKE
34263PLATE, UNDERDRIVE CLUTCH, NO.1
34264PLATE, UNDERDRIVE CLUTCH, NO.2
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
34301ABEARING, NEEDLE ROLLER (FOR UNDERDRIVE INPUT SHAFT)
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
34301CNUT (FOR UNDERDRIVE INPUT SHAFT)
34302GEAR SUB-ASSY, UNDERDRIVE PLANETARY SUN
34302ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY SUN GEAR)
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
34330ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY GEAR)
34341GEAR, UNDERDRIVE PLANETARY RING
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
34391WASHER, UNDERDRIVE CLUTCH DRUM THRUST
35193RETAINER, ROLLER BEARING
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35789PRACE, THRUST BEARING (FOR UNDERDRIVE INPUT SHAFT)
9161140816
main91611-40816
34 parts on this diagram · 2 diagrams in section
