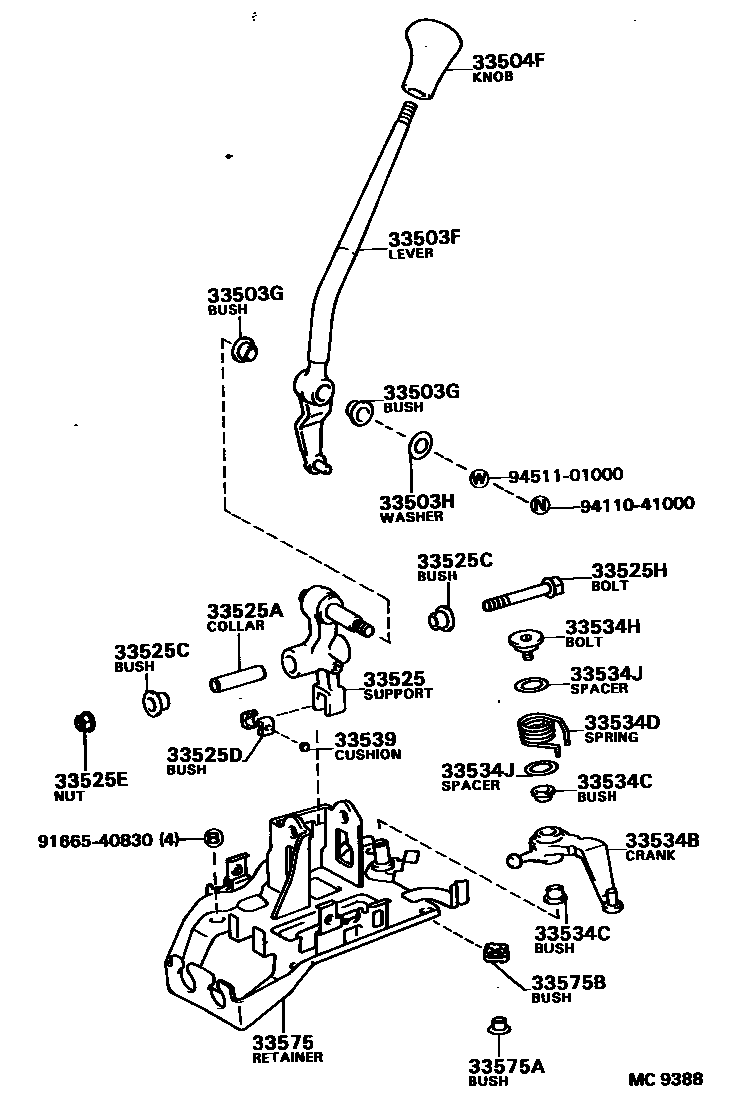

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-20220iAT150,ST150..3FC..GX198301-198711

main33503-20230iST150..5F198301-198310

main33503-20250iST150..3FC..GX198301-198310

EXTRA

main33503-20260iAT150,CT150,ST150..4FC..GX198310-198711

main33503-20290iST150..4D..4FC..GX198409-198504

EXTRA

main33503-20300iAT150,CT150,ST150,16#..MTM198310-198711

33503GBUSH(FOR SHIFT LEVER)

main90389-14011×2iST150..5F198301-198310

33503HWASHER, PLATE(FOR SHIFT LEVER SUB-ASSY)

main90201-10180iST150..5F198301-198310

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-04iAT150..4F..(DX,GX)198310-198508

BLUE,BLUE,TRIM8#

main33504-14040-12iAT150..4F..(DX,GX)198310-198711

MAROON,RED/MAROON,TRIM3#

main33504-14040-13iAT150..4F198310-198602

GRAY,GRAY,TRIM1#

main33504-14040-14iAT150..4F..(DX,GX)198508-198711

BLUE,BLUE,TRIM8#

main33504-14040-33iAT150..4F198602-198711

GRAY,GRAY,TRIM1#

main33504-14070-04iAT150,CT150,ST150..5F..GX198310-198508

BLUE,BLUE,TRIM8#

main33504-14070-12iAT150,CT150,ST150..5F..(DX,GX)198301-198711

MAROON,RED/MAROON,TRIM3#

main33504-14070-13iAT150,CT150,ST150..5F..(DX,GX)198301-198711

GRAY,GRAY,TRIM1#

main33504-14070-14iAT150,CT150,ST150..5F..GX198508-198711

BLUE,BLUE,TRIM8#

main33504-24010-04iAT150,CT150,ST150..5F..(EXA,EXS,SX)198310-198508

BLUE,BLUE,TRIM8#

main33504-24010-20iAT150,CT150,ST150,160..5F..(EXA,EXS,SX,SXR)198602-198711

GRAY,GRAY,TRIM1#

main33504-24010-22iST150..4D..5F..GX198409-198504

MAROON,EXTRA,RED/MAROON,TRIM3#

main33504-24010-33iST150..5F..GX198301-198310

GRAY,EXTRA,GRAY,TRIM1#

main33504-24010-44iAT150,CT150,ST150..5F..(EXA,EXS)198508-198711

BLUE,BLUE,TRIM8#

main33504-24020-43iST162..5F198508-198711

GRAY,GRAY,TRIM1#

main33542-12110-02iAT150..3FC..GX198310-198711

MAROON,RED/MAROON,TRIM3#

main33542-12110-03iAT150..3FC..GX198310-198603

GRAY,GRAY,TRIM1#

main33542-12110-04iAT150..3FC..GX198310-198508

BLUE,BLUE,TRIM8#

main33542-12110-14iAT150..3FC198508-198711

BLUE,BLUE,TRIM8#

main33542-12110-33iAT150..3FC198603-198711

GRAY,GRAY,TRIM1#

main33542-16010-12iST150..3FC..GX198301-198310

MAROON,RED/MAROON,TRIM3#

main33542-16010-13iST150..3FC..GX198301-198310

GRAY,GRAY,TRIM1#

main33542-20060-02iAT150,CT150,ST150..4FC..(EXA,EXS,SX)198310-198508

MAROON,RED/MAROON,TRIM3#

main33542-20060-03iAT150,CT150,ST150..4FC..(EXA,EXS,SX)198310-198508

GRAY,GRAY,TRIM1#

main33542-20060-04iST150..4D..4FC..GX198409-198504

BLUE,EXTRA,BLUE,TRIM8#

main33542-24030-04iAT150..3FC..EXS198310-198409

BLUE,BLUE,TRIM8#

main33542-24030-22iST150..3FC..GX198301-198310

MAROON,EXTRA,RED/MAROON,TRIM3#

main33542-24030-33iAT150,ST150..3FC..EXS198301-198409

GRAY,GRAY,TRIM1#

main33542-32010-02iAT150,CT150,ST150..4FC..GX198310-198711

MAROON,RED/MAROON,TRIM3#

main33542-32010-03iAT150,CT150,ST150..4FC..GX198310-198711

GRAY,GRAY,TRIM1#

main33542-32010-04iAT150,CT150,ST150..4FC..GX198310-198508

BLUE,BLUE,TRIM8#

main33542-32010-24iAT150,CT150,ST150..4FC..GX198508-198711

BLUE,BLUE,TRIM8#

main33542-32040-02iAT150,CT150,ST150..4FC..(EXA,EXS)198508-198711

MAROON,MAROON,TRIM3#

main33542-32040-03iAT150,CT150,ST150,16#..4FC..(EXA,EXS,GT,SX,SXR)198508-198711

GRAY,SHADOW GRAY,TRIM1#

main33542-32040-14iAT150,CT150,ST150..4FC..(EXA,EXS)198508-198711

BLUE,BLUE,TRIM8#

33525SUPPORT, SHIFT LEVER

main33525-32010iST150..5F198301-198310

33525ACOLLAR (FOR SHIFT LEVER SUPPORT)

main90387-10047iST150..5F198301-198310

33525CBUSH, NO.1 (FOR SHIFT LEVER SUPPORT)

main90389-14011×2iST150..5F198301-198310

33525DBUSH, NO.2 (FOR SHIFT LEVER SUPPORT)

main90389-10007×2iST150..5F198301-198310

33525ENUT (FOR SHIFT LEVER SUPPORT)

main90179-10043iST150..5F198301-198310

33525HBOLT (FOR SHIFT LEVER SUPPORT)

main90105-10068iST150..5F198301-198310

33534BCRANK, SELECTING BELL, NO.1

main33509-12050iAT150,CT150,ST150,16#..MTM198310-198711

main33534-20010iST150..5F198301-198310

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013×2iAT150,CT150,ST150,16#..MTM198301-198711

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20062iAT150,CT150,ST150,16#..MTM198310-198711

main90508-26044iST150..5F198301-198310

33534HBOLT (FOR SELECTING BELLCRANK NO.1)

main90109-08057iST150..5F198301-198310

33534JSPACER (FOR SELECTING BELLCRNK NO.1)

main90560-23008×2iST150..5F198301-198310

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-32010iST150..5F198301-198310

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-20180iAT150,CT150,ST150,16#..MTM198310-198711

main33575-20300iST150..5F198301-198310

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031×4iAT150,CT150,ST150,16#..MTM198301-198711

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-09003×4iAT150,CT150,ST150,16#..MTM198508-198711

main90389-10013×4iST150..5F198301-198310

main90389-10014×4iAT150,CT150,ST150..MTM198310-198508

9166540830

main91665-40830

9411041000

main94110-41000

9451101000

main94511-01000

22 parts on this diagram · 7 diagrams in section
