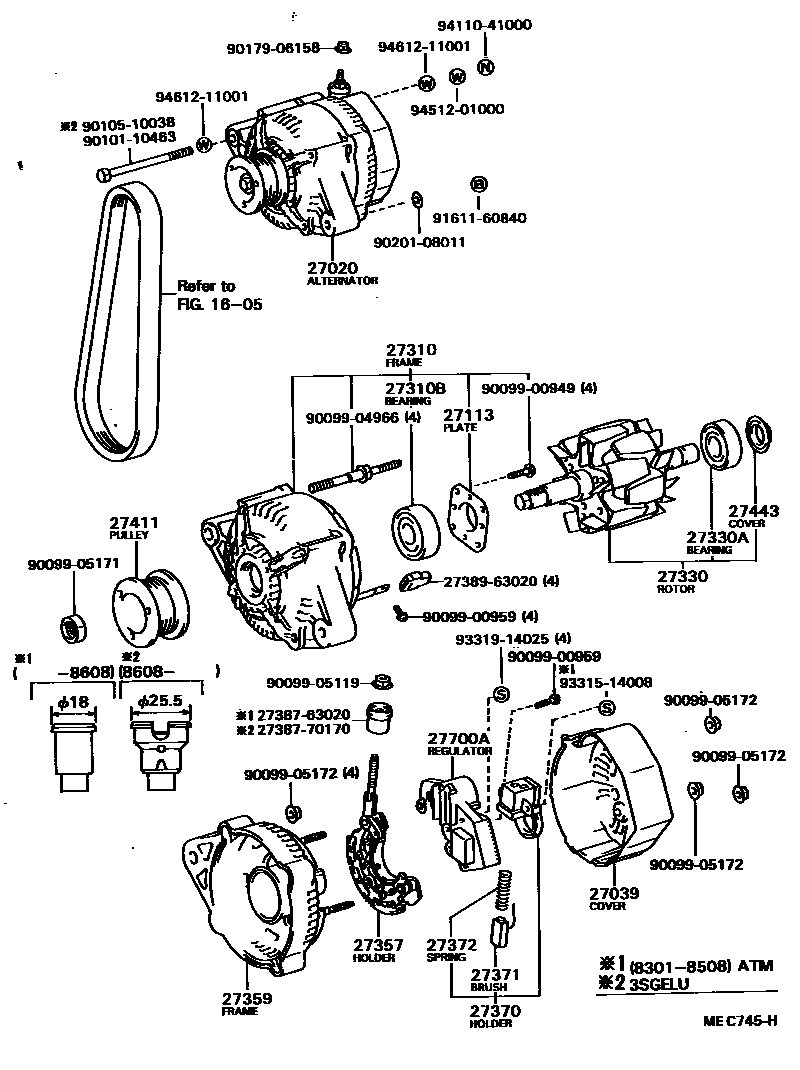

ALTERNATOR

0001 112V 55A,60A 0002 112V 50A 0003 112V 55A 0004 112V 60A

1605

27020ALTERNATOR ASSY

main27020-16030i3ALU..AT150198310-198711

12V 50A

main27020-64060i2CL..CT150198310-198711

12V 55A

main27020-64100i2CL..CT150198310-198711

main27020-64160i2CL..CT150..4FC198510-198711

main27060-16040i1SILU..ST150198301-198608

main27060-16041i1SILU..ST150198608-198702

sub27060-16042

main27060-16042i1SILU..ST150198702-198711

sub27060-63102

main27060-63040i1SELU,1SLU..ST150..5F198301-198508

12V 55A

main27060-63060i1SELU..ST150..4FC198310-198608

main27060-63061i1SELU..ST150,160198608-198711

main27060-63100i3SGELU..ST162198508-198608

main27060-63101i3SGELU..ST162198608-198702

sub27060-63102

main27060-63102i3SGELU..ST162198702-198711

12V 60A

27039COVER, ALTERNATOR REAR END

main27039-63021i1SILU..ST150;1SELU,1SLU..ST150..ATM198301-198410

12V 55A,60A

sub27039-72010

main27039-63040i1SELU,1SLU..ST150..5F198301-198505

12V 55A

sub27039-72110

main27039-72010i1S#,3SGELU..ST150,16#198508-198711

12V 55A,60A

sub27039-15170

main27039-72010i1SILU..ST150;1SELU..ST150..4FC198410-198508

12V 55A

sub27039-15170

main27039-72110i1SELU..ST150..5F198505-198508

12V 55A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-57060i2CL..CT150198310-198711

12V 55A,60A

main27312-63020i1S#..ST150198301-198501

12V 55A,60A

main27312-70200i1SELU..ST150198702-198711

12V 60A

main27312-72100i1S#..ST150,160198501-198702

12V 55A,60A

main27312-72100i1SELU..ST150,160198702-198711

12V 55A

main27312-72100i3SGELU..ST162198508-198702

12V 60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15150i3ALU..AT150198310-198312

12V 50A

sub27310-16030

sub27412-16040

main27310-16030i3ALU..AT150198312-198711

12V 50A

main27310-63050i1SELU,1SLU..ST150..5F198301-198501

12V 55A

main27310-63051i1SELU..ST150..5F198501-198508

12V 55A

main27310-64060i2CL..CT150198310-198711

12V 55A,60A

main27310-70070i1SELU,1SLU..ST150..ATM198301-198501

12V 55A,60A

main27310-70071i1SELU..ST150,160198501-198711

12V 55A

main27310-70071i1SILU..ST150198501-198702

12V 55A,60A

main27310-70071i3SGELU..ST162198508-198702

12V 60A

main27310-70200i1SILU..ST150198702-198711

12V 60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2CL..CT150198310-198711

12V 55A,60A

main90099-10141i1SLU..ST150198301-198309

12V 55A,60A

main90099-10142i3ALU..AT150198310-198711

12V 50A

sub90099-10223

main90099-10152i1S#..ST150198309-198501

12V 55A,60A

main90099-10159i3SGELU..ST162198508-198702

12V 60A

main90099-10159i1S#..ST150,160198501-198702

12V 55A,60A

main90099-10159i1SELU..ST150,160198702-198711

12V 55A

main90099-10178i3SGELU..ST162198702-198711

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-10020i1S#..ST150..5F198501-198508

12V 55A

main27330-16030i3ALU..AT150198502-198711

12V 50A

main27330-45070i3ALU..AT150198310-198502

12V 50A

sub27330-16030

main27330-63021i1SILU..ST150198310-198501

12V 55A

sub27330-72100

main27330-63021i1SILU..ST150198310-198501

12V 55A,60A

sub27330-72100

main27330-63021i1SLU..ST150..3FC198301-198310

12V 60A

sub27330-72100

main27330-63040i1SLU..ST150..5F198301-198303

12V 55A

sub27330-63041

sub27312-63020

main27330-63041i1SELU,1SLU..ST150..5F198303-198501

12V 55A

sub27330-10020

main27330-64010i2CL..CT150..5F198310-198711

12V 55A

main27330-64030i2CL..CT150198310-198711

12V 60A

sub27330-54180

main27330-72100i3SGELU..ST162198501-198708

12V 55A

sub27330-72101

main27330-72100i1SELU..ST150,160198508-198708

12V 60A

sub27330-72101

main27330-72100i1SILU..ST150198501-198708

12V 55A,60A

sub27330-72101

main27330-72101i3SGELU..ST162198708-198711

12V 60A

main27330-72101i1SILU..ST150198708-198711

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i3ALU..AT150198310-198711

12V 50A

main90099-10140i1S#,3SGELU..ST150,16#198301-198711

12V 55A,60A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-15022i3ALU..AT150198310-198711

12V 50A

main27357-63020i1SILU,3SGELU..ST150,162198301-198711

12V 60A

main27357-63040i1SELU,1SLU..ST150..5F198301-198508

12V 55A

main27357-63060i1SELU..ST150..4FC198310-198711

12V 55A

main27357-64060i2CL..CT150..5F198310-198711

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-43160i3SGELU..ST162198702-198711

12V 60A

sub27359-43161

sub27384-16380

main27359-63010i3ALU..AT150198310-198711

12V 50A

main27359-63020i1SELU,1SLU..ST150..ATM198301-198404

12V 55A,60A

sub27359-63021

sub27370-63021

main27359-63020i1SILU..ST150198310-198404

12V 55A

sub27359-63021

sub27370-63021

main27359-63021i1SELU..ST150,160198404-198711

12V 55A

sub27359-63081

main27359-63021i1SILU..ST150198404-198702

12V 55A,60A

sub27359-63081

main27359-63040i1SELU,1SLU..ST150..5F198301-198404

12V 55A

sub27359-63041

sub27370-63021

main27359-63041i1SELU..ST150..5F198404-198508

12V 55A

main27359-63081i3SGELU..ST162198508-198702

12V 60A

main27359-70200i1SILU..ST150198702-198711

12V 60A

sub27359-43160

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-54010i2CL..CT150198310-198711

12V 55A

sub27370-54250

main27370-63020i1S#..ST150198301-198404

12V 55A,60A

sub27370-35060

main27370-63021i1S#..ST150,160198404-198711

12V 55A,60A

sub27370-70300

main27370-63021i1S#..ST150,160198603-198711

12V 60A

sub27370-70300

main27370-72100i3SGELU..ST162198508-198603

12V 60A

sub27370-63021

main27370-72100i1S#..ST150,160198501-198603

12V 55A,60A

sub27370-63021

27371BRUSH, ALTERNATOR

main27371-31011i3ALU..AT150198310-198711

12V 50A

main27371-56070i2CL..CT150198310-198711

12V 55A,60A

sub27371-54412

main27371-63020i1S#,3SGELU..ST150,16#198301-198711

12V 55A,60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i3ALU..AT150198310-198711

12V 50A

main27372-56070i2CL..CT150198310-198711

12V 55A,60A

main27372-63020i1S#..ST150198301-198501

12V 55A,60A

sub27372-87501

main27372-72100i3SGELU..ST162198508-198711

12V 60A

sub27372-63020

main27372-72100i1S#..ST150,160198501-198711

12V 55A,60A

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-15150i3ALU..AT150198310-198711

12V 50A

main27411-16180i1SILU..ST150198702-198711

12V 60A

main27411-63080i1S#..ST150198408-198501

12V 55A

sub27411-63021

main27411-63081i3SGELU..ST162198508-198702

12V 60A

sub27411-16180

main27411-63081i1SELU..ST150,160198702-198711

12V 55A

sub27411-16180

main27411-63081i1S#..ST150,160198501-198702

12V 55A,60A

sub27411-16180

main27411-64060i2CL..CT150..5F198310-198711

12V 55A,60A

main27411-64160i2CL..CT150..4FC198510-198711

12V 60A

main27411-72010i1SLU..ST150198301-198310

12V 55A,60A

sub27411-63080

main27411-72010i1S#..ST150198310-198408

12V 55A

sub27411-63080

27443COVER, ALTERNATOR BEARING

main27443-63020i1S#,3SGELU..ST150,16#198301-198711

12V 55A,60A

27700AREGULATOR ASSY, GENERATOR

main27700-15040i3ALU,2CL..AT150,CT150198310-198510

12V 50A,55A

main27700-15040i2CL..CT150..5F198510-198711

12V 55A

main27700-15040i2CL..CT150..5F198510-198711

12V 50A

main27700-57060i2CL..CT150198310-198606

12V 60A

main27700-63020i1SLU..ST150..3FC198301-198304

12V 60A

main27700-63020i1SLU..ST150..3FC198301-198304

12V 55A

main27700-63021i1S#,3SGELU..ST150,16#198304-198711

12V 55A,60A

sub27700-70030

main27700-64030i2CL..CT150198606-198711

12V 60A

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110463

main90101-10463

9010510038

main90105-10038

9017906158

main90179-06158

9020108011

main90201-08011

9161160840

main91611-60840

9331514008

main93315-14008

9331914025

main93319-14025

9411041000

main94110-41000

9451201000

main94512-01000

9461211001

main94612-11001

35 parts on this diagram · 4 diagrams in section
