IGNITION COIL & SPARK PLUG / GLOW PLUG

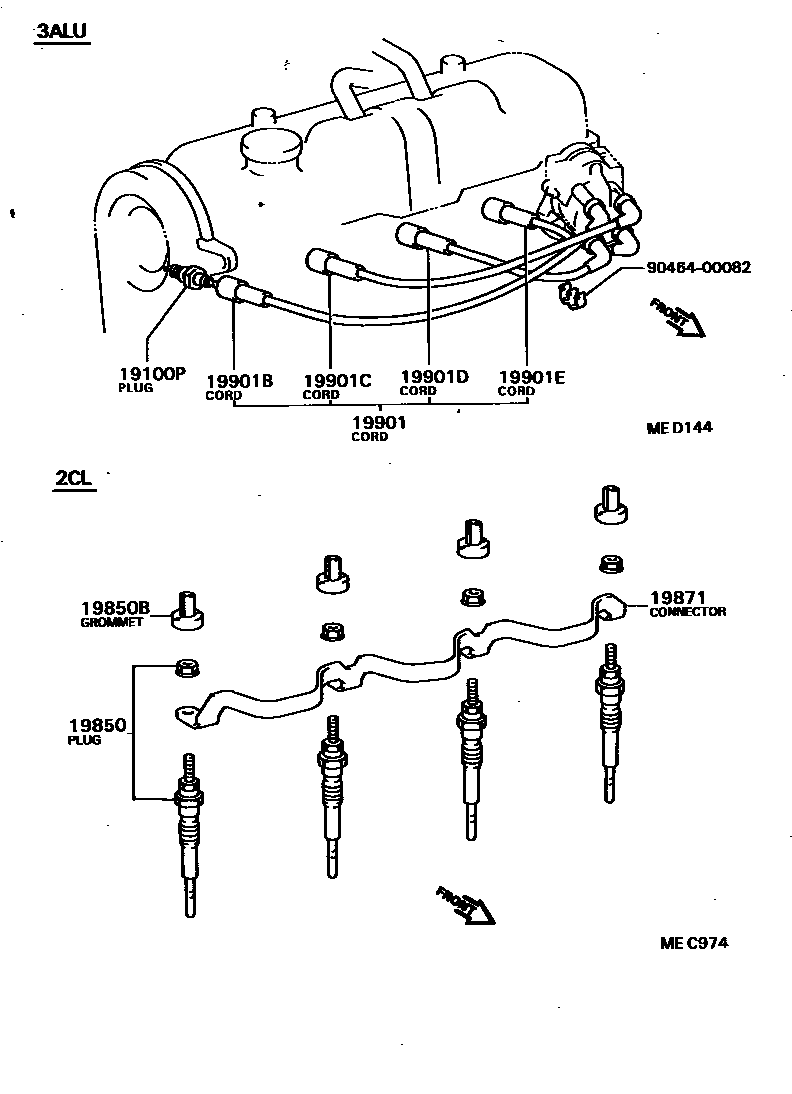

Parts diagram
19100PPLUG, SPARK
main90919-01085i198310-198711
main90919-01091i198301-198711
main90919-01104i198301-198711
main90919-01113i198508-198711
main90919-01114i198508-198711
main90919-01121i198508-198711
main90919-01122i198508-198711
19850PLUG ASSY, GLOW
main19850-64010i198310-198711
19850BGROMMET, SCREW(FOR GLOW PLUG)
main90189-04024i198310-198711
19871CONNECTOR, GLOW PLUG NO.1
main19871-64020i198310-198505
sub19871-64021
main19871-64021i198505-198711
sub19871-64022
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21370i198508-198711
sub90919-21372
main90919-22105i198310-198711
main90919-22113i198301-198711
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12356i198310-198711
main90919-12394i198301-198711
main90919-12546i198508-198711
sub90919-12994
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-12357i198310-198711
main90919-12392i198301-198711
main90919-12547i198508-198711
sub90919-12995
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12358i198310-198711
main90919-12392i198301-198711
main90919-12548i198508-198711
sub90919-12996
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12359i198310-198711
main90919-12394i198301-198711
main90919-12549i198508-198711
sub90919-12997
9046400082
main90464-00082

10 parts on this diagram · 3 diagrams in section
