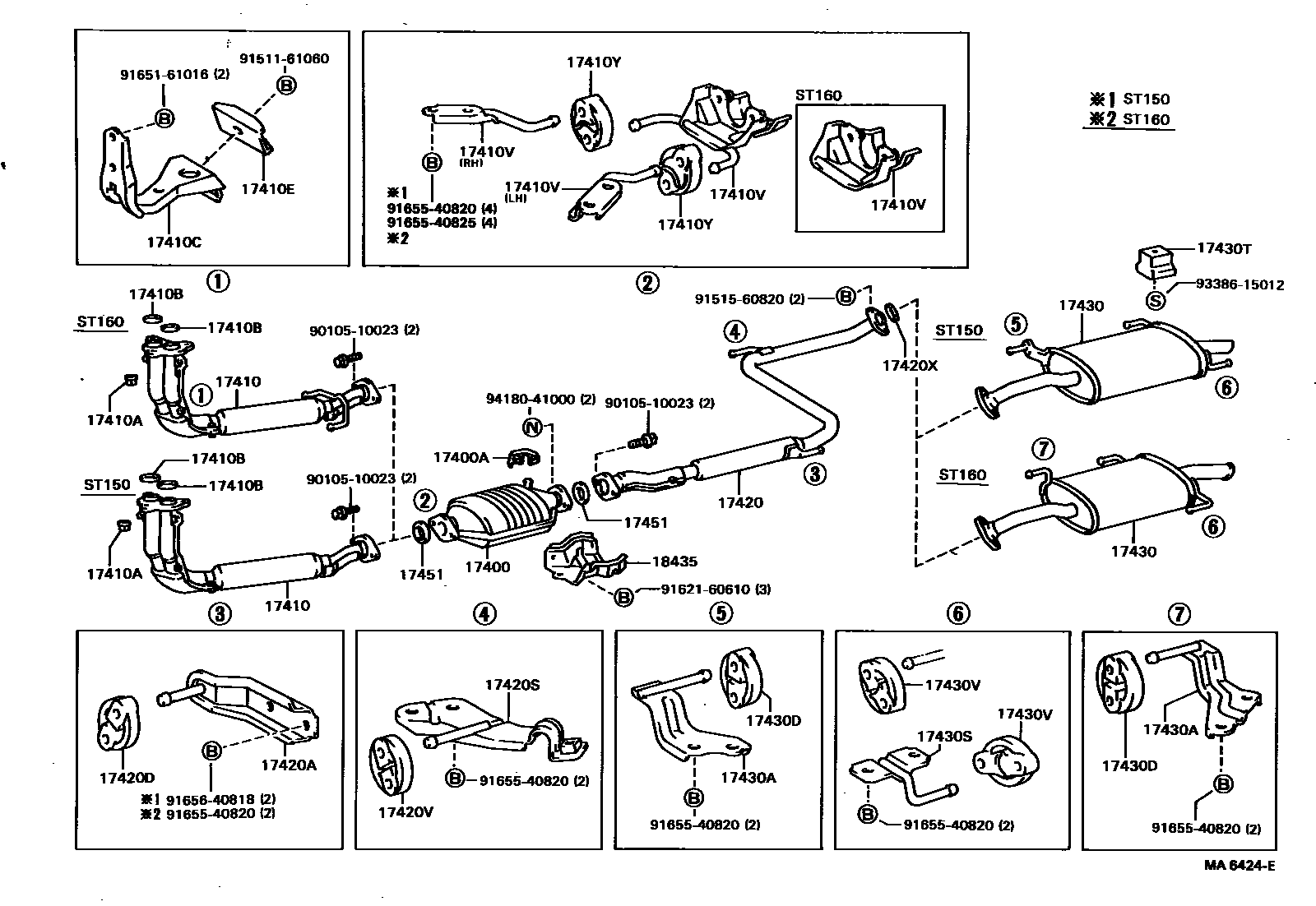

EXHAUST PIPE

0001 1 0003 1 0004 1 0005 1

17400CONVERTER ASSY, W/CATALYST

main18450-63011i1SLU..ST150198301-198310

main18450-63040i1SELU..ST150,160198508-198711

main18450-74021i1SELU..ST150198310-198508

main18450-74050i3SGELU..ST162198508-198708

main18450-74110i3SGELU..ST162198708-198711

17400AFLANGE, THERMOSENSER INLET

main18491-63010i1SELU,1SLU,3SGELU..ST150,16#198301-198711

17410PIPE ASSY, EXHAUST, FRONT

main17410-15180i3ALU..AT150198310-198711

main17410-63050i1SELU,1SLU..ST150198301-198711

main17410-63060i1SILU..ST150198310-198401

main17410-63061i1SILU..ST150198401-198711

main17410-63120i1SELU..ST160198508-198604

main17410-63121i1SELU..ST160198604-198711

main17410-64080i2CL..CT150198310-198711

main17410-74090i3SGELU..ST162198508-198711

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10028×3i3ALU,2CL,1S#..AT150,CT150,ST150198301-198402

main90179-10070×3i3ALU,2CL,1S#,3SGELU..AT150,CT150,ST150,16#198402-198711

17410BGASKET, EXHAUST PIPE

main90917-06001×2i1SELU,1SLU..ST150,160198301-198711

main90917-06004i3ALU,2CL,1SILU..AT150,CT150,ST150198310-198711

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17504-63010i3ALU,1SILU..AT150,ST150198310-198711

RH

main17504-64020i2CL..CT150198310-198711

RH

main17505-63020i1SILU..ST150198310-198711

LH

main17505-64020i2CL..CT150198310-198711

LH

main17506-74020i3SGELU..ST162198508-198711

main17571-74030i1SELU..ST160198508-198711

main17588-14010i3ALU..AT150198310-198412

LH

main17588-14011i3ALU..AT150198412-198711

LH

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04054i1SELU..ST160198508-198711

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17503-63020i1SELU,1SLU..ST150198301-198711

CTR

main17503-63030i1SELU..ST160198508-198711

CTR

main17503-74020i3SGELU..ST162198508-198711

CTR

main17504-63010i1SELU,1SLU,3SGELU..ST150,16#198301-198512

RH

main17504-74010i1SELU,3SGELU..ST16#198512-198611

RH

main17504-74030i1SELU,3SGELU..ST16#198611-198702

RH

main17504-74040i1SELU,3SGELU..ST16#198702-198711

RH

main17505-63020i1SELU..ST150198512-198711

LH

main17505-74010i1SELU,3SGELU..ST16#198512-198611

LH

main17505-74020i1SELU,3SGELU..ST16#; 1SELU..ST150198702-198711

LH

main17507-63020i3ALU,2CL,1SILU..AT150,CT150,ST150198310-198711

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main17565-16020×2i1SELU..ST160..5F; 3SGELU..ST162198508-198604

main17565-63020×2i1SLU..ST150198301-198310

main17565-63030×2i1SELU..ST150198310-198711

main17565-63060i2CL..CT150; 3ALU,1SILU..AT150,ST150198310-198711

main17565-63071×2i1SELU..ST160..5F; 3SGELU..ST162198604-198711

17420PIPE ASSY, EXHAUST, CENTER

main17420-63050i1SELU,1SLU..ST150198301-198401

main17420-63051i1SELU..ST150198401-198711

main17420-63110i1SELU..ST160198508-198711

main17420-74100i3SGELU..ST162198508-198711

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17506-63010i1SELU,1SLU..ST150198301-198711

main17506-74010i1SELU,3SGELU..ST16#198508-198711

17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT

main17565-63060i1SELU,1SLU,3SGELU..ST150,16#198301-198711

17420SBRACKET, EXHAUST PIPE CENTER, REAR

main17507-63020i1SELU,1SLU..ST150198301-198711

main17507-74010i1SELU,3SGELU..ST16#198508-198711

17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR

main17565-63060i1SELU,1SLU,3SGELU..ST150,16#198301-198711

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i1SELU,1SLU..ST150,160198301-198711

main90917-06012i3SGELU..ST162198508-198711

17430PIPE ASSY, EXHAUST, TAIL

main17430-15270i3ALU..AT150198310-198711

main17430-63050i1SLU..ST150198301-198310

main17430-63060i1S#..ST150198310-198711

main17430-63100i1SELU..ST160198508-198711

main17430-64190i2CL..CT150198310-198508

main17430-74100i3SGELU..ST162198508-198711

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17508-63010i3ALU,2CL,1S#..AT150,CT150,ST150198301-198711

main17508-74010i1SELU,3SGELU..ST16#198508-198711

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-63020i3SGELU..ST162..4FC198508-198711

main17565-63030i3SGELU..ST162..5F198508-198711

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17509-63040i3ALU,2CL,1S#..AT150,CT150,ST150198301-198711

main17509-74010i1SELU,3SGELU..ST16#198508-198711

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17591-36010i3ALU,2CL,1S#,3SGELU..AT150,CT150,ST150,16#198301-198711

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-16080×2i3SGELU..ST162..5F198508-198711

main17565-63030×2i1SELU..ST160; 3SGELU..ST162..4FC198508-198711

main17565-63070×2i3ALU,1S#..AT150,ST150198301-198401

main17565-63071×2i3ALU,1S#..AT150,ST150198401-198711

17451GASKET, EXHAUST PIPE

main90917-06004i2CL,1SILU..CT150,ST150198310-198711

main90917-06020i1SELU,1SLU..ST150,160198301-198711

RR

main90917-06023i1SELU,1SLU..ST150,160198301-198711

FR

main90917-06026i3ALU..AT150198310-198711

main90917-06031i3SGELU..ST162198508-198711

FR

main90917-06032i3SGELU..ST162198508-198711

RR

18435PROTECTOR, CATALYTIC CONVERTER

main18436-63010i1SELU,1SLU..ST150,160198301-198711

main18436-74010i3SGELU..ST162198508-198605

main18436-74020i3SGELU..ST162198605-198711

9010510023

main90105-10023

9151161060

main91511-61060

9151560820

main91515-60820

9162160610

main91621-60610

9165161016

main91651-61016

9165540820

main91655-40820

9165540825

main91655-40825

9165640818

main91656-40818

9338615012

main93386-15012

9418041000

main94180-41000

33 parts on this diagram · 4 diagrams in section
